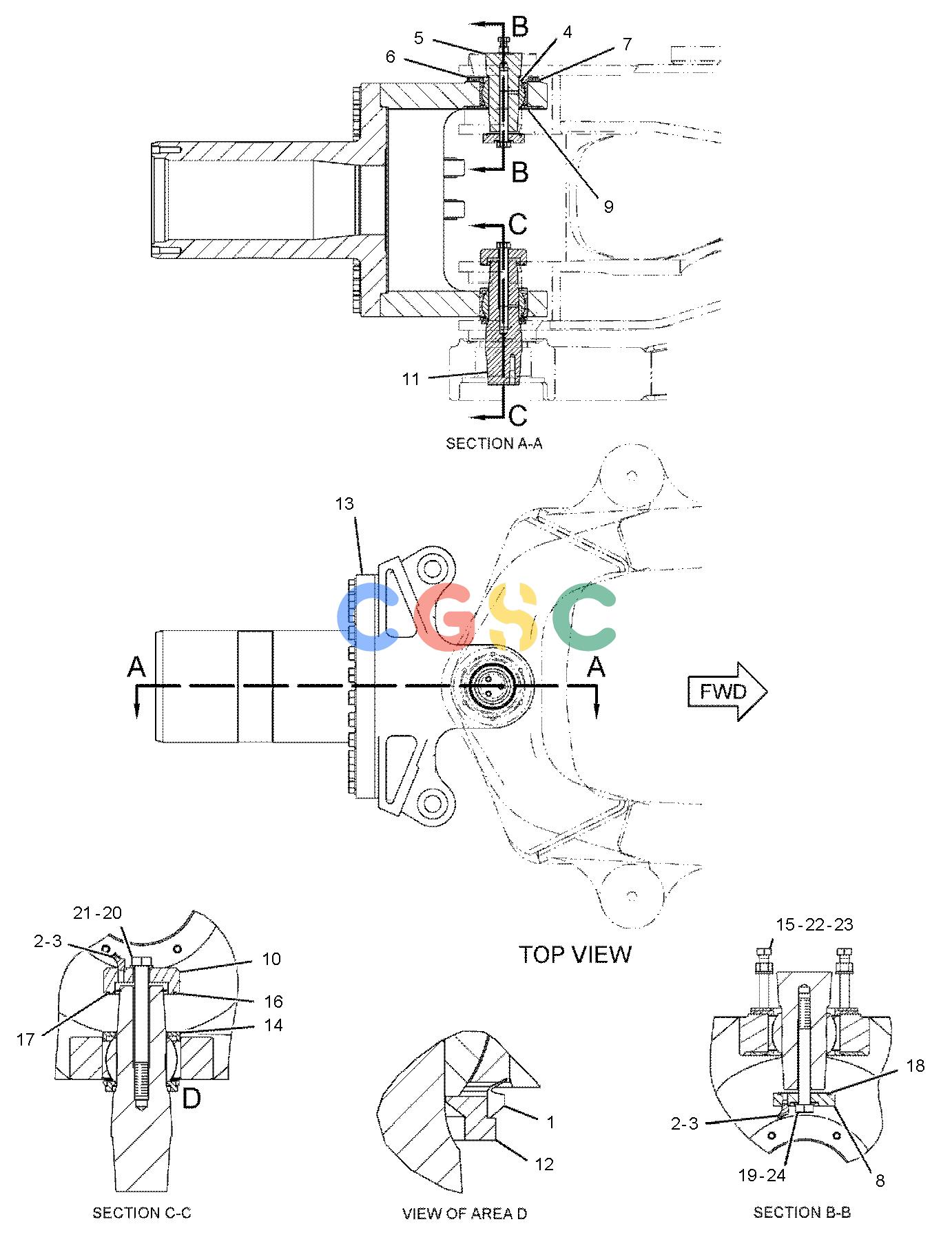

卡特零件查询（735） 141-6857: HITCH GP-OSCILLATING
广数供应链运营团队, 15 02月, 2025，浏览：
367 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2U-5388 | [1] | SEAL-V-RING | |
| 2. | 3B-8485 | [2] | ELBOW | |
| 3. | 5U-7151 | [2] | CAP-GREASE | |
| 4. | 107-8126 | [2] | BEARING | |
| 5. | 156-4078 | [1] | PIN-HITCH | |
| 6. | 156-4081 | [1] | WASHER(115X118X5-MM THK) | |
| 7. | 156-4083 | [1] | SPACER-SPECIAL(13-MM THK) | |
| 8. | 156-4085 | [1] | WASHER-SPECIAL | |
| 9. | 156-4087 | [1] | SPACER(8.6-MM THK) | |
| 10. | 185-4306 | [1] | WASHER-SPECIAL | |
| 11. | 300-3930 | [1] | PIN-HITCH | |
| 12. | 187-3579 | [1] | SPACER-BEARING | |
| 13. | 190-2768Y | [1] | HITCH GP | |
| 14. | 195-3659 | [1] | SPACER(80X118X14-MM THK) | |
| 15. | 170-8555M | [2] | BOLT(M16X2X90-MM) | |
| 16. | 1H-6227 | [1] | SEAL-O-RING | |
| 17. | 1K-6992 | [1] | RING-LOCK | |
| 18. | 2H-3931 | [1] | SEAL-O-RING | |
| 19. | 8T-0658M | [1] | BOLT(M20X2.5X180-MM) | |
| 20. | 6V-8569M | [1] | BOLT(M20X2.5X200-MM) | |
| 21. | 153-5044 | [1] | WASHER-HARD(21.5X45X6-MM THK) | |
| 22. | 8T-4132M | [2] | NUT(M16X2-THD) | |
| 23. | 9X-8257 | [2] | WASHER(17.5X30X3.5-MM THK) | |
| 24. | 8T-3282 | [1] | WASHER-HARD(22X35X3.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
