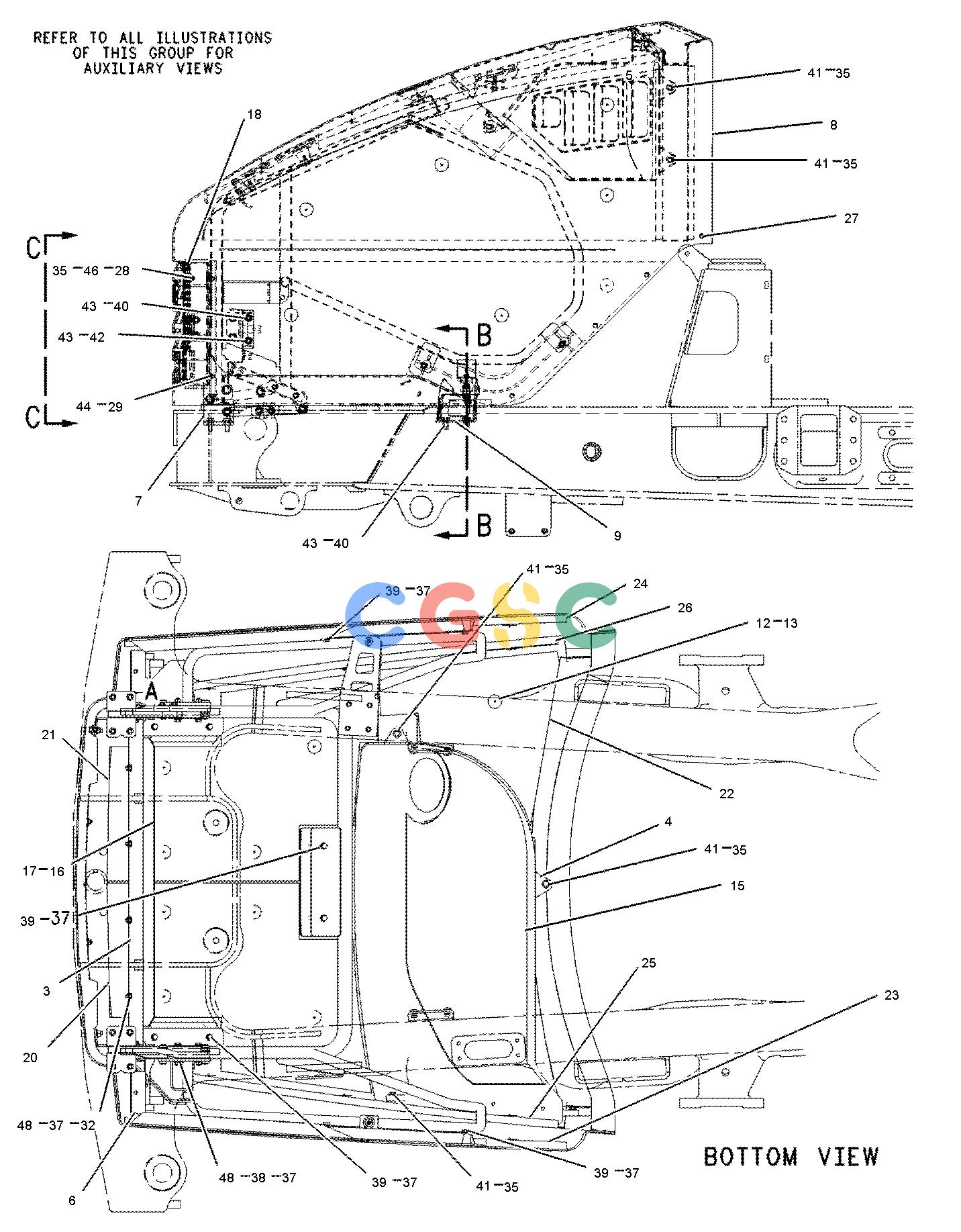

卡特零件查询（735） 152-7025: HOOD GP-ENGINE
广数供应链运营团队, 15 02月, 2025，浏览：
129 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9G-2773 | [2] | SOCKET | |
| 2. | 187-4425 | [1] | GRILL AS | |
| 2A. | 196-1044 | [1] | PLATE(CATERPILLAR) | |
| 3. | 188-6049 | [1] | FRAME AS | |
| 4. | 190-0282 | [1] | DUCT | |
| 5. | 190-2171 | [1] | BRACKET AS | |
| 6. | 190-2172 | [1] | BRACKET AS | |
| 7. | 191-5963Y | [1] | TILT GP-HOOD(RH) | |
| 8. | 191-5964 | [1] | HOOD AS | |
| 9. | 192-5453 | [1] | SUPPORT AS-HOOD | |
| 10. | 193-3809 | [2] | PIN-GUIDE | |
| 11. | 202-6378Y | [1] | TILT GP-HOOD(LH) | |
| 12. | 206-8077 | [2] | PLATE-ANGLE | |
| 13. | 209-2287 | [1] | BAFFLE | |
| 14. | 209-2288 | [1] | PLATE | |
| 15. | 210-1917 | [1] | GRILL | |
| 16. | 131-3540M | [5] | LOCKNUT(M8X1.25-THD) | |
| 17. | 5A-3604M | [2] | BOLT-SOCKET HEAD(M8X1.25X25-MM) | |
| 18. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 19. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 20. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 21. | 6V-7744M | [4] | LOCKNUT(M10X1.5-THD) | |
| 22. | 6V-9189M | [2] | LOCKNUT(M8X1.25-THD) | |
| 23. | 7X-0579 | [4] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 24. | 7X-7729 | [15] | WASHER(11X25X3-MM THK) | |
| 25. | 8T-4121 | [30] | WASHER-HARD(11X21X2.5-MM THK) | |
| 26. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 27. | 8T-4137M | [14] | BOLT(M10X1.5X20-MM) | |
| 28. | 8T-4139M | [12] | BOLT(M12X1.75X30-MM) | |
| 29. | 8T-4186M | [5] | BOLT(M10X1.5X40-MM) | |
| 30. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 31. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 32. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 33. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| 34. | 8T-4908M | [5] | BOLT(M8X1.25X25-MM) | |
| 35. | 8T-5005M | [8] | BOLT(M10X1.5X70-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
