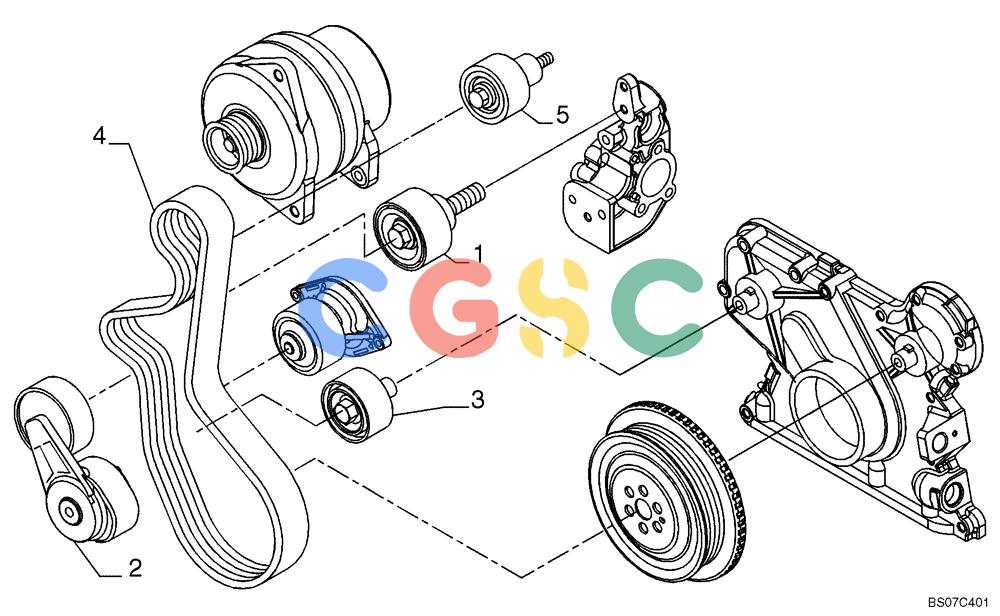

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (09-32[00]) - WATER PUMP - CONTROL (101230670001) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
622 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852398 | [1] | IDLER WHEEL,65mm OD | TOR Superseded by part number: 504065877 |
| 2. | 2852396 | [1] | BELT TENSIONER | TORAlternate, Serial Range: Part-2856173 Superseded by part number: |
| 2. | 2856173 | [1] | BELT TENSIONER | TORAlternate, Serial Range: Part-2852396 Superseded by part number: |
| 3. | 2852397 | [1] | IDLER,65mm OD | TOR Superseded by part number: 504065878 |
| 4. | 2853208 | [1] | BELT,1660.00 mm L, 8 Ribs | CAS Superseded by part number: 504079075 |
| 5. | 2852245 | [1] | PULLEY,65mm OD | TOR Superseded by part number: 504065879 |
