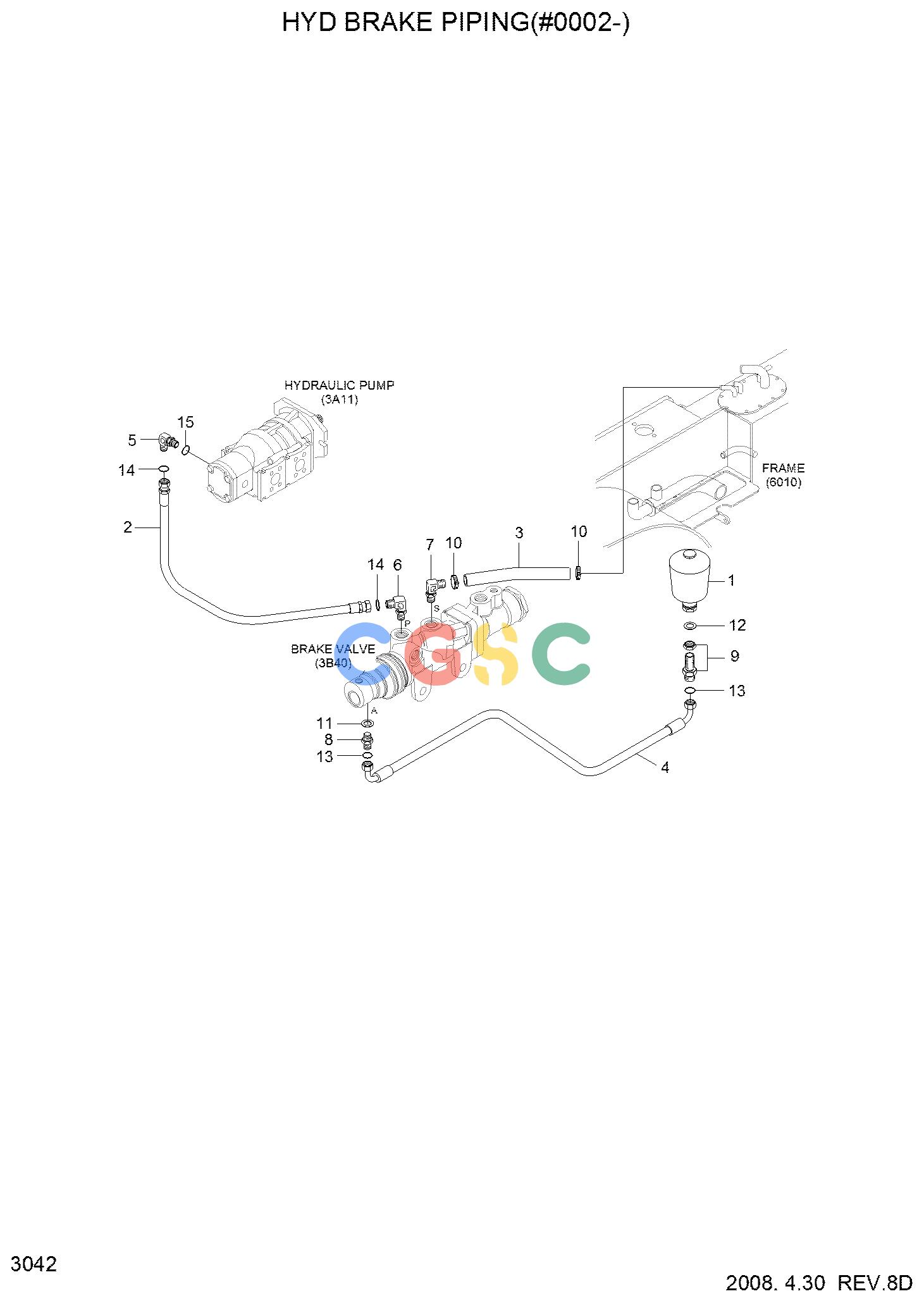

现代零件查询80D-7 HYD BRAKE PIPING(#0002-)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
933 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
31E3-3187
|
[1] |
ACCUMULATOR
|
|
| 2. |
P920-085019
|
[1] |
HOSE ASSY-ORFS 0X45
|
|
| 3. |
8201150300
|
[1] |
HOSE-LP
|
|
| 4. |
31FQ-10080
|
[1] |
HOSE ASSY 90X90
|
|
| 5. |
31FQ-50010
|
[1] |
ELBOW-90
|
|
| 6. |
31FQ-10030
|
[1] |
ELBOW-90
|
|
| 7. |
31FF-01360
|
[1] |
ELBOW-90
|
|
| 8. |
X500-120011
|
[1] |
CONNECTOR-ORFS
|
|
| 9. |
31FQ-10040
|
[1] |
CONNECTOR
|
|
| 10. |
S572-270006
|
[2] |
CLAMP-HOSE,WIRE TYPE
|
|
| 11. |
P392-140000
|
[1] |
WASHER-COPPER
|
|
| 12. |
P391-080000
|
[1] |
WASHER-COPPER
|
|
| 13. |
S621-012001
|
[2] |
O-RING
|
|
| 14. |
S621-014001
|
[2] |
O-RING
|
|
| 15. |
S611-019001
|
[1] |
O-RING
|
|
