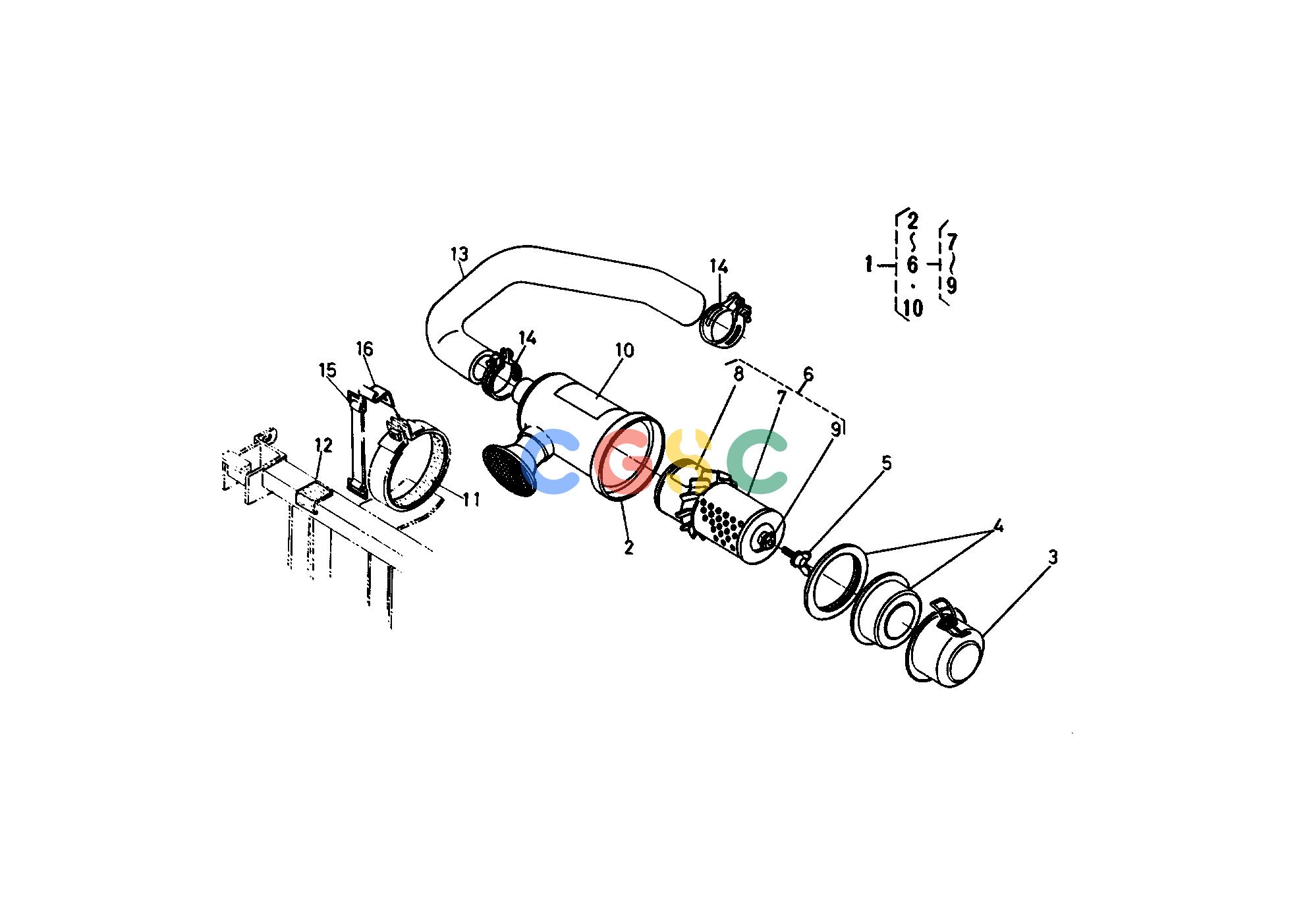

久保田零件查询T06500 AIR CLEANER ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
556 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6780058400
|
[1] |
ASSY AIP CLEANER
|
3.1020(lbs); 1.410
|
| 002. |
1553211150
|
[1] |
CLEANER AIR
|
0.0000(lbs); 0.000
|
| 003. |
1522111160
|
[1] |
COVER AIR CLEANER
|
0.4400(lbs); 0.200
|
| 004. |
1522111410
|
[1] |
COVER BAFFLE
|
0.2288(lbs); 0.104
|
| 005. |
1522192620
|
[1] |
BOLT WING
|
0.0880(lbs); 0.040
|
| 006. |
6780058300
|
[1] |
ASSY ELEMENT
|
0.7040(lbs); 0.320
|
| 008. |
1522787480
|
[1] |
LABEL ELEMENT
|
0.0088(lbs); 0.004
|
| 009. |
1522194430
|
[1] |
WASHER SEAL
|
0.0088(lbs); 0.004
|
| 010. |
1537287452
|
[1] |
LABEL AIR CLEANER
|
0.0022(lbs); 0.001
|
| 011. |
6711158230
|
[1] |
CUSHION
|
0.0440(lbs); 0.020
|
| 012. |
6780058220
|
[1] |
CUSHION
|
0.0110(lbs); 0.005
|
| 013. |
1553211124
|
[1] |
PIPE INLET
|
1.2540(lbs); 0.570
|
| 014. |
1522111720
|
[2] |
BAND PIPE
|
0.0660(lbs); 0.030
|
| 015. |
6780054730
|
[1] |
BAND
|
0.0990(lbs); 0.045
|
| 015. |
H678054000
|
[1] |
BAND
|
0.0990(lbs); 0.045
|
| 016. |
6780054740
|
[1] |
HOLDER
|
0.0396(lbs); 0.018
|
