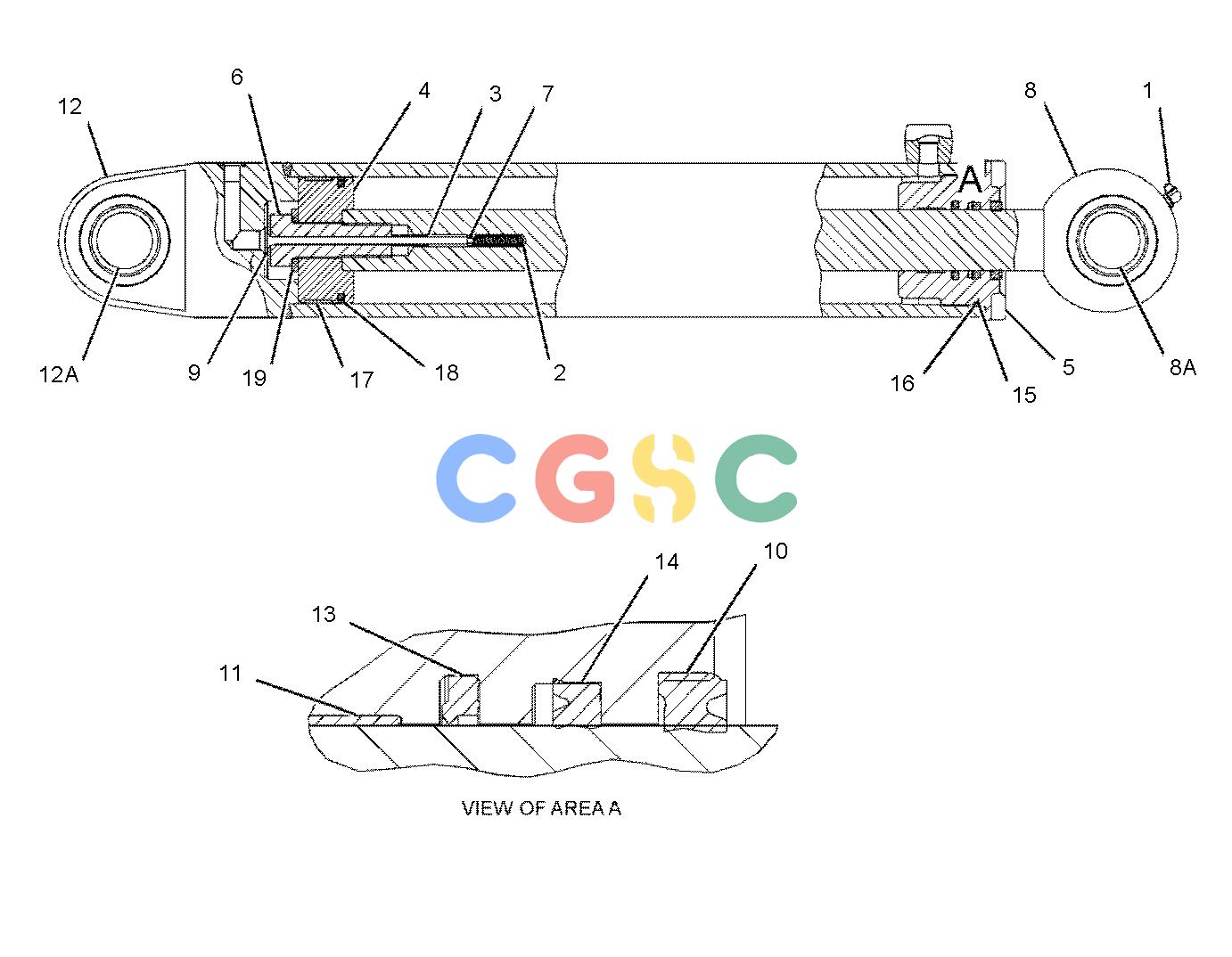

卡特零件查询（735） 223-1335: CYLINDER GP-HYDRAULIC
广数供应链运营团队, 15 02月, 2025，浏览：
924 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8488 | [1] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 4M-5912 | [1] | SPRING | |
| 3. | 6E-3772 | [1] | SPRING | |
| 4. | 141-5849 | [1] | PISTON | |
| 5. | 141-5851 | [1] | HEAD | |
| 6. | 141-5864 | [1] | BOLT(M30X3.5X90-MM) | |
| 7. | 179-4324M | [1] | LOCKNUT(M5X0.8-THD) | |
| 8. | 223-1336 | [1] | ROD AS | |
| 8A. | 6V-5002 | [1] | BEARING-ALIGNING | |
| 9. | 223-1338 | [1] | VALVE | |
| 10. | 165-9280J | [1] | SEAL-LIP TYPE | |
| 11. | 140-0249J | [1] | RING-WEAR | |
| 12. | 141-1190 | [1] | CYLINDER AS | |
| 12A. | 6V-5002 | [1] | BEARING-ALIGNING | |
| 13. | 167-2199J | [1] | SEAL AS-BUFFER | |
| 14. | 167-2306J | [1] | SEAL-U-CUP | |
| 15. | 1K-7095J | [1] | RING-BACKUP | |
| 16. | 3E-6703J | [1] | SEAL-O-RING | |
| 17. | 4J-3745J | [1] | RING-WEAR | |
| 18. | 9X-7269J | [1] | SEAL AS | |
| 19. | 9X-8399 | [1] | WASHER(33X56X6-MM THK) | |
| | | | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 217-9894J | [1] | KIT-SEAL(STEERING CYLINDER) | |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
