神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (09-44[00]) - STARTER MOTOR (101660580001 & 101570580001) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
456 次

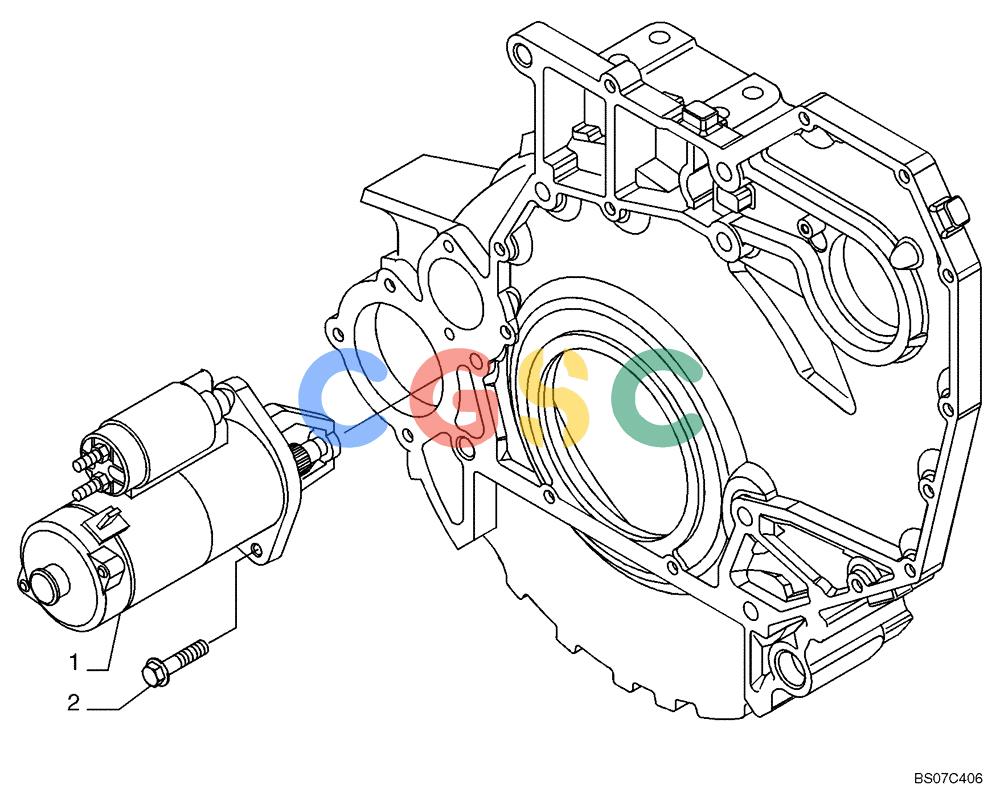

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852405 | [1] | STARTER MOTOR | TORComponent Parts are Not Serviced Separate Superseded by part number: 5801577136 |
| . . | 84377568R | [1] | REMAN-STARTER,24V, 4kW | MKTSK170-8 ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-), Reman For New P/N 2852405 |
| . . | 84377568C | [1] | CORE-STARTER,24V, 4kW | MKTReturn Number |
| . . | 2852405C | [1] | CORE-STARTER | MKTReturn Number, STARTER - for N.A. Only |
| 2. | 2852403 | [3] | FLANGE BOLT,Hex, M10 x 1.5 x 30mm | TORM10x1.50x30mm Superseded by part number: 16675835 |
