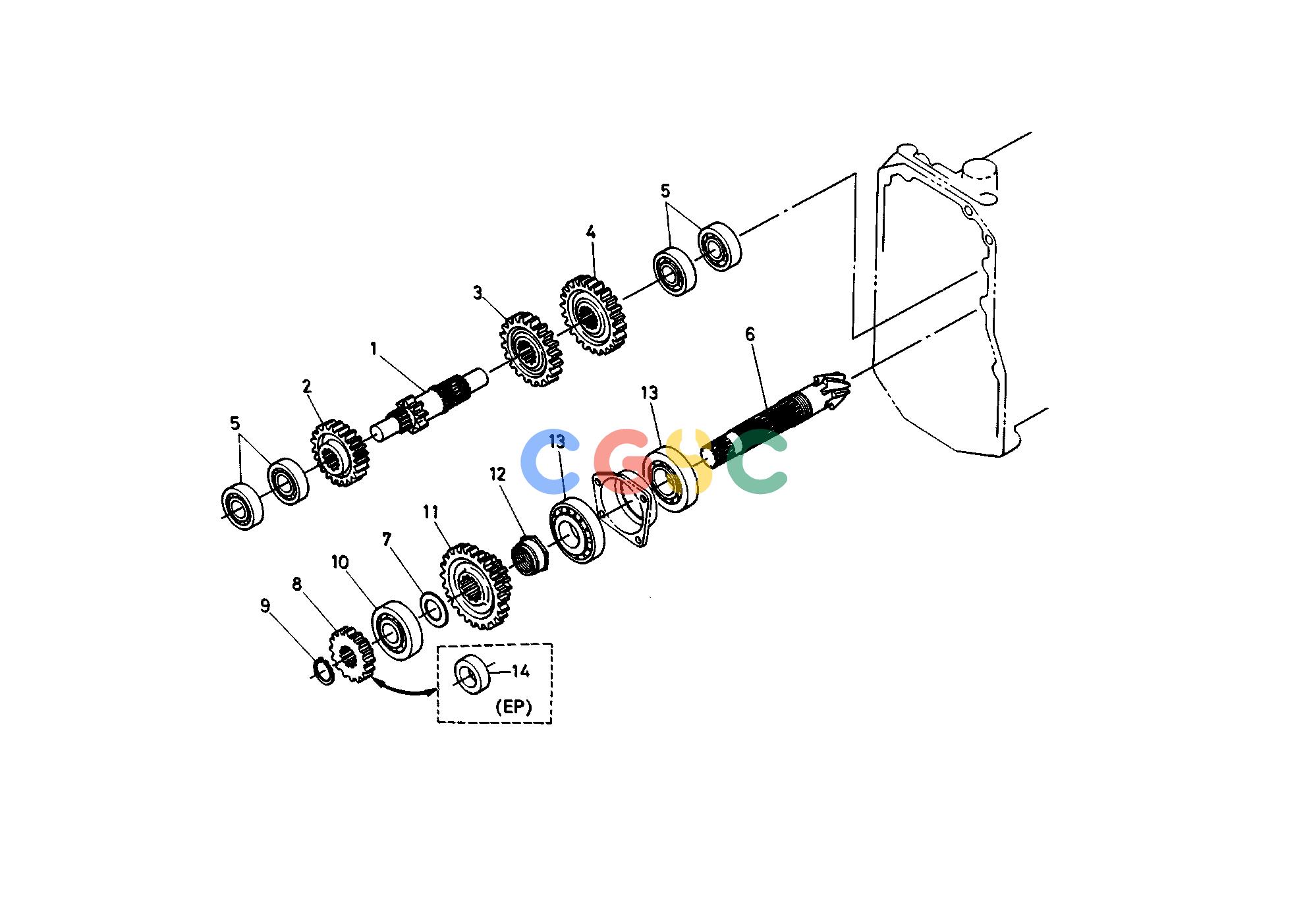

久保田零件查询T02700 4TH SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
756 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6780015210
|
[1] |
SHAFT 4TH
|
1.3860(lbs); 0.630
|
| 002. |
6630115240
|
[1] |
GEAR SPUR 23
|
0.7700(lbs); 0.350
|
| 003. |
6630115220
|
[1] |
GEAR SPUR 25
|
0.8580(lbs); 0.390
|
| 004. |
6711115230
|
[1] |
GEAR SPUR 27
|
0.0000(lbs); 0.000
|
| 005. |
0810106304
|
[4] |
BEARING BALL
|
0.3212(lbs); 0.146
|
| 007. |
6780014450
|
[1] |
COLLAR
|
0.0000(lbs); 0.000
|
| 008. |
6781015320
|
[1] |
GEAR SPUR 18
|
0.4620(lbs); 0.210
|
| 009. |
0461200250
|
[1] |
CIR-CLIP EXTERNAL
|
0.0044(lbs); 0.002
|
| 010. |
0810106305
|
[1] |
BEARING BALL
|
0.5060(lbs); 0.230
|
| 011. |
6630115360
|
[1] |
GEAR SPUR 16-19
|
1.3860(lbs); 0.630
|
| 012. |
6711115370
|
[1] |
NUT
|
0.0000(lbs); 0.000
|
| 013. |
0871130206
|
[2] |
BEARING TAPER ROLLER
|
0.4950(lbs); 0.225
|
