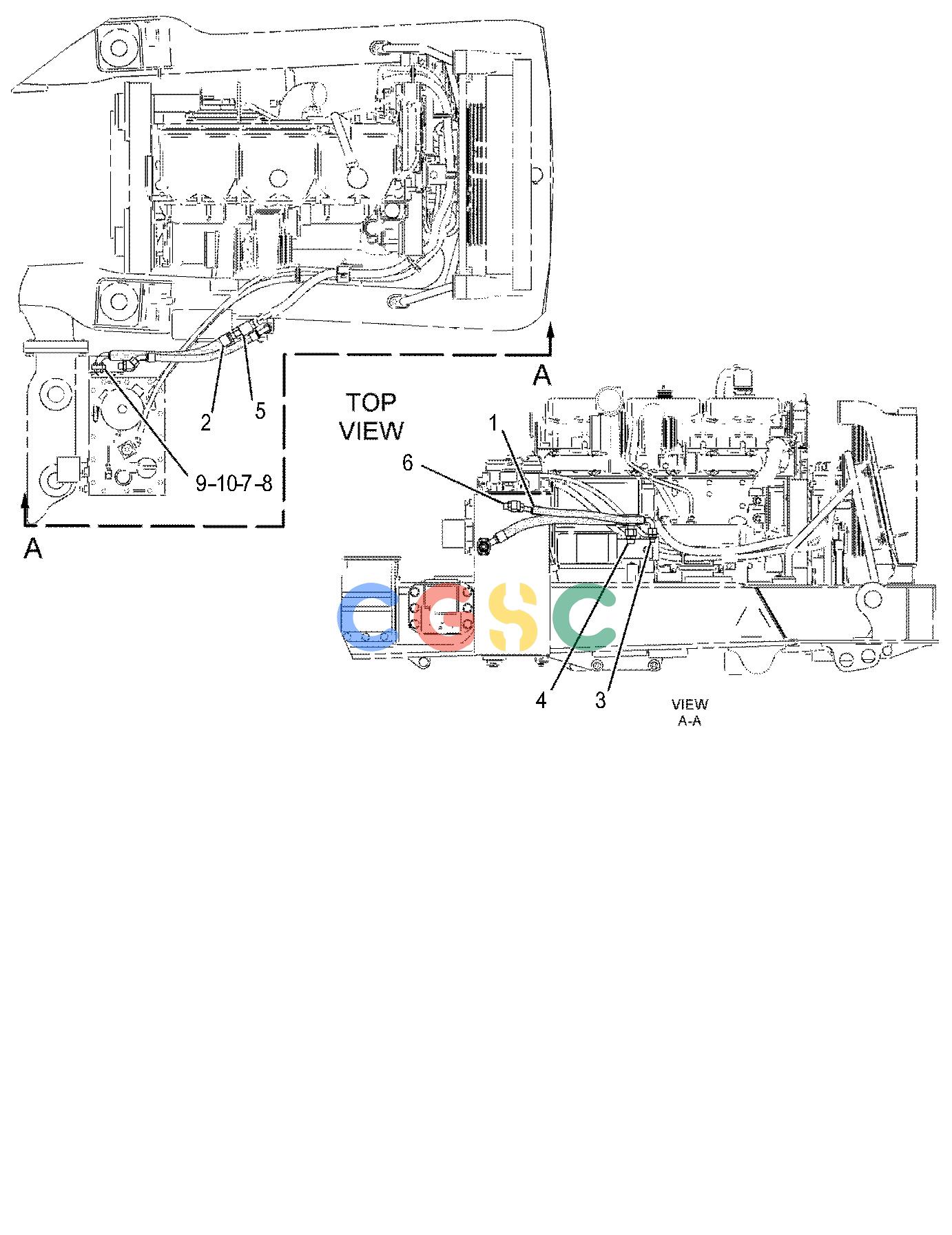

卡特零件查询（735） 166-3944: LINES GP-PUMP
广数供应链运营团队, 15 02月, 2025，浏览：
561 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 194-3662I | [1] | HOSE AS | |
| 2. | 194-3663I | [1] | HOSE AS | |
| 3. | 148-8324 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9874 | [1] | CONNECTOR(STRAIGHT) | |
| 4. | 148-8335 | [1] | CONNECTOR AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 5. | 148-8445 | [1] | TEE AS | |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-9847 | [1] | TEE-SWIVEL | |
| 6. | 153-6237 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9004 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 7. | 4J-0520 | [1] | SEAL-O-RING | |
| 8. | 8C-3206 | [2] | FLANGE-HALF | |
| 9. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 10. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
