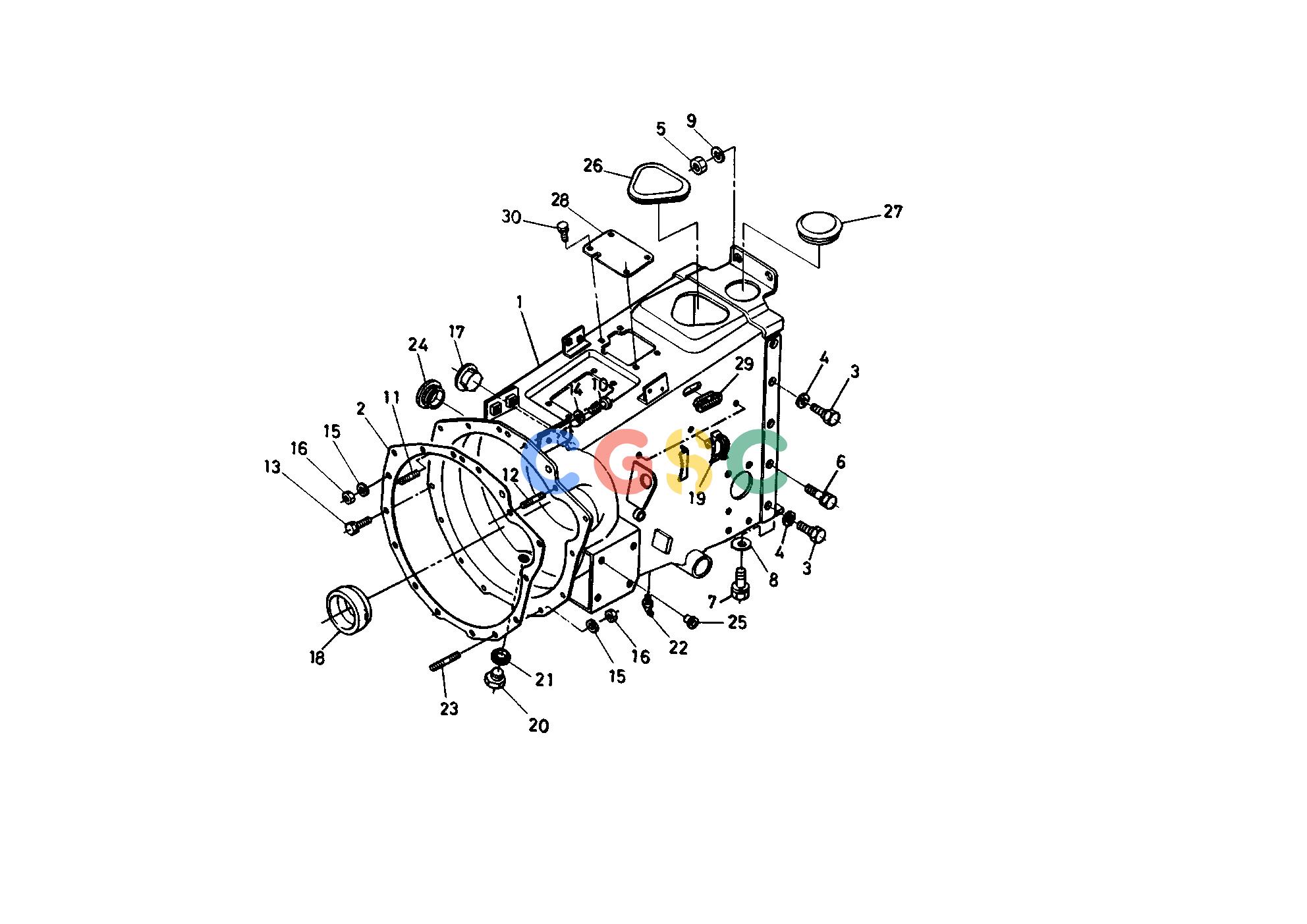

久保田零件查询T05100 CLUTCH HOUSING CLUTCHEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
577 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6630151112
|
[1] |
ASSY HOUSING CLUTCH
|
49.5000(lbs); 22.500
|
| 002. |
6780051130
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 003. |
6711151150
|
[4] |
BOLT REAMER
|
0.0880(lbs); 0.040
|
| 004. |
0451250140
|
[4] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 005. |
0217650120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 006. |
0112351230
|
[6] |
BOLT
|
0.0880(lbs); 0.040
|
| 007. |
0115351225
|
[2] |
BOLT
|
0.0704(lbs); 0.032
|
| 008. |
0401350120
|
[2] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 009. |
0451250120
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 010. |
0117351032
|
[2] |
BOLT
|
0.0528(lbs); 0.024
|
| 011. |
0151850828
|
[1] |
STUD
|
0.0220(lbs); 0.010
|
| 012. |
0151850840
|
[1] |
STUD
|
0.0374(lbs); 0.017
|
| 013. |
0112350828
|
[12] |
BOLT
|
0.0308(lbs); 0.014
|
| 014. |
0451250100
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 015. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 016. |
0211450080
|
[3] |
NUT
|
0.0110(lbs); 0.005
|
| 017. |
6711151180
|
[1] |
PLUG 25
|
0.0110(lbs); 0.005
|
| 018. |
6711151190
|
[1] |
SEAL DUST
|
0.0396(lbs); 0.018
|
| 019. |
6780051170
|
[3] |
CLAMP CORD
|
0.0044(lbs); 0.002
|
| 020. |
0633135016
|
[1] |
PLUG
|
0.0880(lbs); 0.040
|
| 021. |
0471701600
|
[1] |
WASHER SEAL
|
0.0066(lbs); 0.003
|
| 022. |
6711144250
|
[1] |
NIPPLE GREASE
|
0.0110(lbs); 0.005
|
| 022. |
H666099100
|
[1] |
NIPPLE,GREASE
|
0.0110(lbs); 0.005
|
| 023. |
0151751025
|
[2] |
STUD
|
0.0440(lbs); 0.020
|
| 024. |
6780051190
|
[1] |
COVER
|
0.0000(lbs); 0.000
|
| 024. |
6780051192
|
[1] |
COVER,TIMING HOLE
|
0.0000(lbs); 0.000
|
| 025. |
6659154390
|
[10] |
PLUG 3
|
0.0022(lbs); 0.001
|
| 026. |
6630151210
|
[1] |
CAP 1
|
0.1166(lbs); 0.053
|
| 027. |
6630151220
|
[1] |
CAP 2
|
0.0440(lbs); 0.020
|
| 028. |
6630151230
|
[1] |
COVER
|
0.5940(lbs); 0.270
|
| 029. |
6630151250
|
[2] |
CAP RUBBER
|
0.0264(lbs); 0.012
|
| 030. |
0112350818
|
[4] |
BOLT
|
0.0264(lbs); 0.012
|
