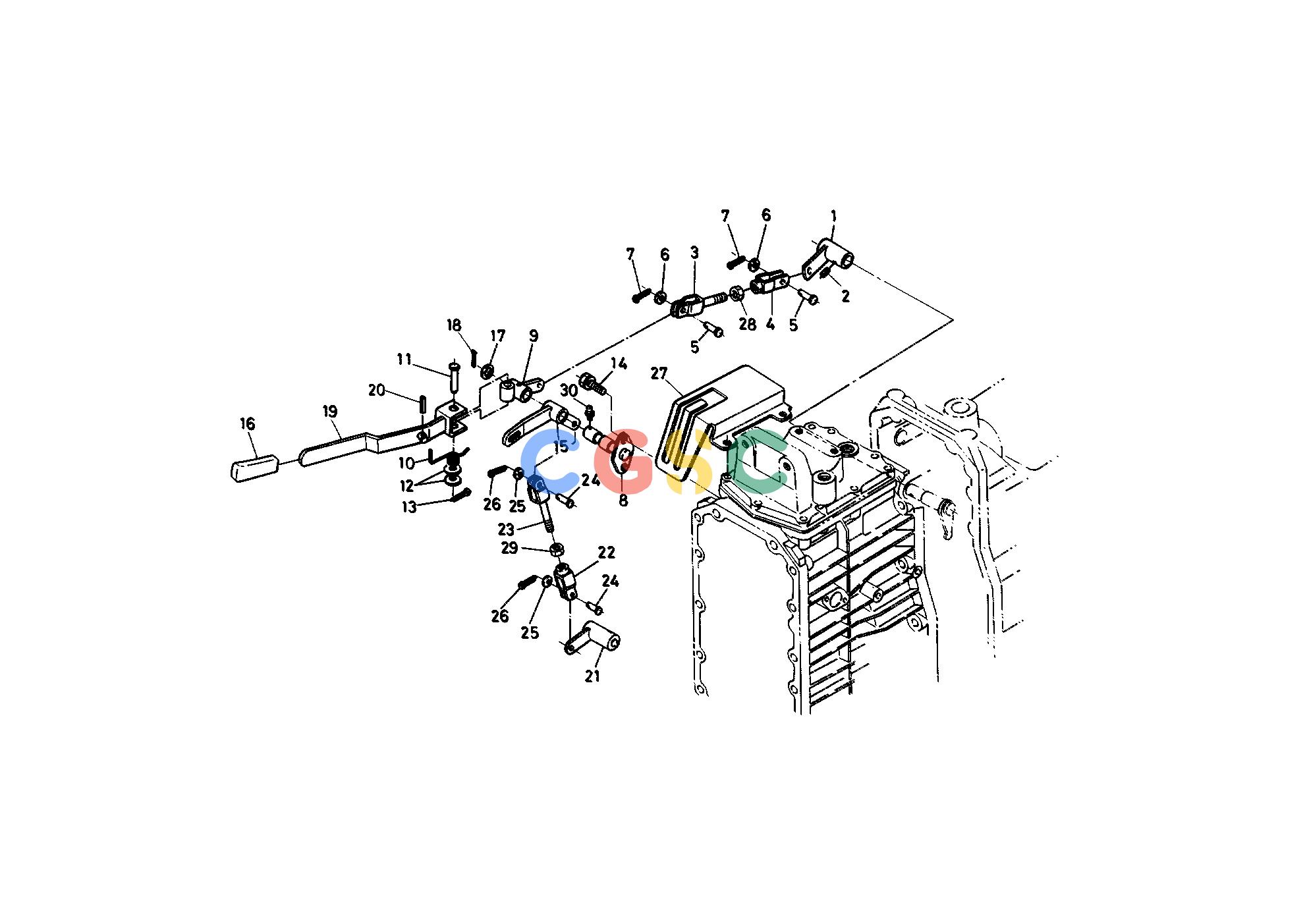

久保田零件查询T04300 SPEED CHANGE LEVER 1 SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
121 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6780042310
|
[1] |
BOSS LEVER 1
|
0.1606(lbs); 0.073
|
| 002. |
0541100632
|
[1] |
PIN SPRING
|
0.0088(lbs); 0.004
|
| 003. |
6780042380
|
[1] |
ROD 1
|
0.1100(lbs); 0.050
|
| 004. |
6780042390
|
[1] |
JOINT
|
0.0550(lbs); 0.025
|
| 005. |
0512250614
|
[2] |
PIN JOINT
|
0.0088(lbs); 0.004
|
| 006. |
0401350060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 007. |
0551151612
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 008. |
6780042340
|
[1] |
SUPPORT LEVER
|
0.2530(lbs); 0.115
|
| 009. |
6630142350
|
[1] |
BOSS LEVER
|
0.2420(lbs); 0.110
|
| 010. |
6780042360
|
[1] |
SPRING
|
0.0000(lbs); 0.000
|
| 011. |
0512251050
|
[1] |
PIN JOINT
|
0.0704(lbs); 0.032
|
| 012. |
0401150100
|
[2] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 013. |
0551150320
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 014. |
0112350820
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 015. |
6630142370
|
[1] |
LEVER 1
|
0.3080(lbs); 0.140
|
| 016. |
6780042110
|
[1] |
GRIP LEVER
|
0.0440(lbs); 0.020
|
| 017. |
0401150140
|
[1] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 018. |
0551150425
|
[1] |
PIN SPLIT
|
0.0066(lbs); 0.003
|
| 019. |
6630142450
|
[1] |
LEVER 2
|
0.5060(lbs); 0.230
|
| 020. |
0541100632
|
[1] |
PIN SPRING
|
0.0088(lbs); 0.004
|
| 021. |
6630142460
|
[1] |
BOSS LEVER 2
|
0.2310(lbs); 0.105
|
| 022. |
6780042390
|
[1] |
JOINT
|
0.0550(lbs); 0.025
|
| 023. |
6630142470
|
[1] |
ROD 2
|
0.0880(lbs); 0.040
|
| 024. |
0512250614
|
[2] |
PIN JOINT
|
0.0088(lbs); 0.004
|
| 025. |
0401350060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 026. |
0551151612
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 027. |
6630142490
|
[1] |
GUIDE
|
0.0000(lbs); 0.000
|
| 028. |
0211250080
|
[1] |
NUT
|
0.0066(lbs); 0.003
|
| 029. |
0211250080
|
[1] |
NUT
|
0.0066(lbs); 0.003
|
| 030. |
6721142940
|
[1] |
NIPPLE GREASE
|
0.0022(lbs); 0.001
|
