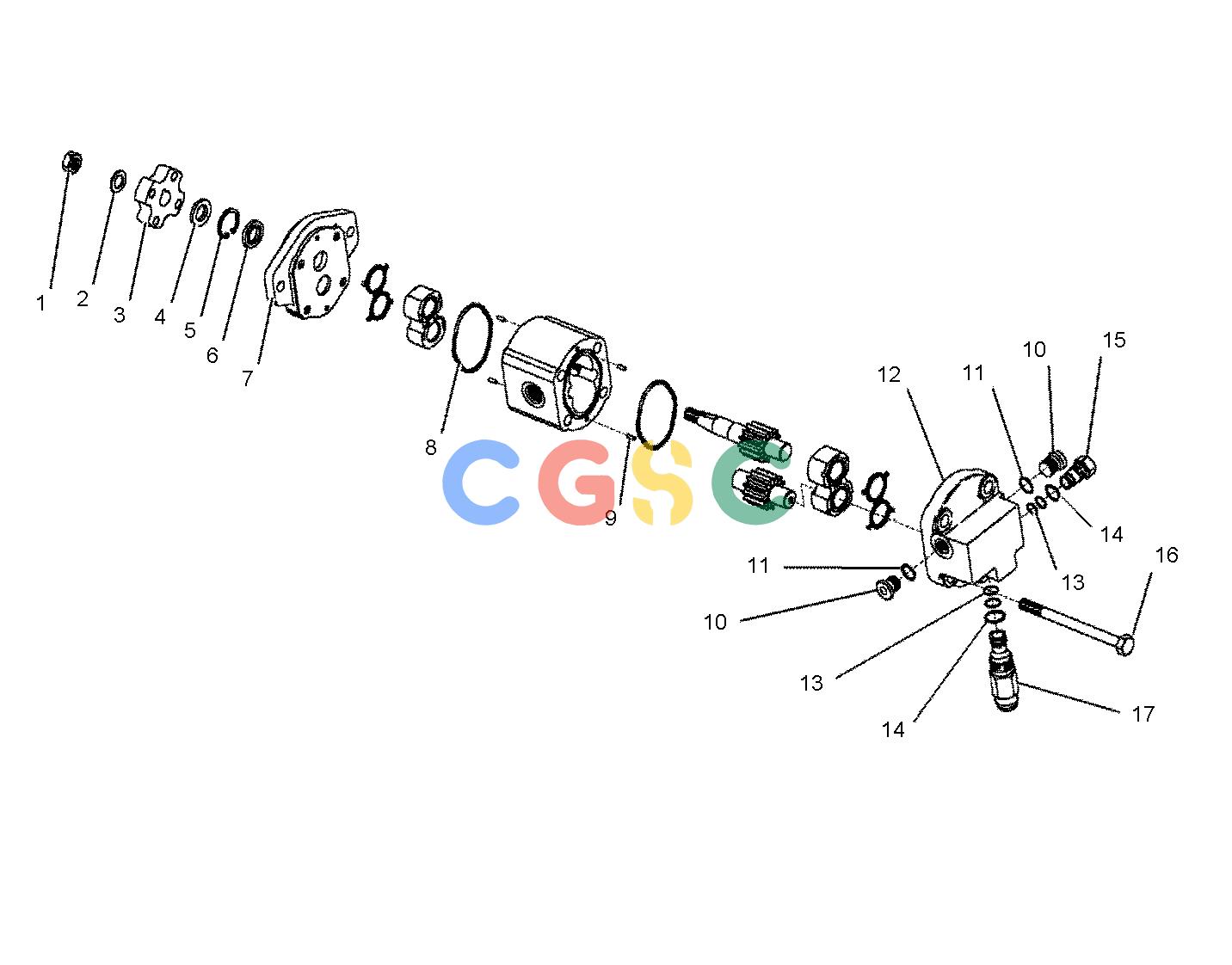

卡特零件查询（735） 220-2290: MOTOR GP-GEAR
广数供应链运营团队, 15 02月, 2025，浏览：
498 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2M-2570 | [1] | LOCKNUT(1/2-20-THD) | |
| 2. | 5P-8245 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 3. | 113-3632 | [1] | ADAPTER-FAN | |
| 4. | 176-0209L | [1] | SEAL-LIP TYPE | |
| 5. | 8J-6273L | [1] | RING-RETAINING | |
| 6. | 177-4255L | [1] | SEAL-SHAFT | |
| 7. | 176-0210 | [1] | FLANGE | |
| 8. | 4W-7356L | [2] | SEAL-O-RING | |
| 9. | 099-3095 | [4] | DOWEL | |
| 10. | 9S-4182 | [2] | PLUG(7/16-20-THD) | |
| 11. | 3J-7354L | [2] | SEAL-O-RING | |
| 12. | 183-7815 | [1] | BODY-VALVE | |
| 13. | 6V-8397JL | [3] | SEAL-O-RING | |
| 14. | 3K-0360JL | [3] | SEAL-O-RING | |
| 15. | 201-5923 | [1] | VALVE-CHECK(GEAR MOTOR) | |
| 16. | 160-8492M | [4] | BOLT(M10X1.5X85-MM) | |
| 17. | 222-6472J | [1] | VALVE-RELIEF(GEAR MOTOR) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 120-9051J | [2] | KIT-SEAL(CHECK VALVE)(PRESSURE RELIEF VALVE) | |
| | | | (ALSO INCLUDES RETAINER RING & SEAL-O-RINGS) |
| | 201-5924L | [1] | KIT-SEAL(GEAR MOTOR) | |
| | | | (ALSO INCLUDES SEAL-O-RINGS, SEALS, SEAL KITS & RETAINER RING) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
