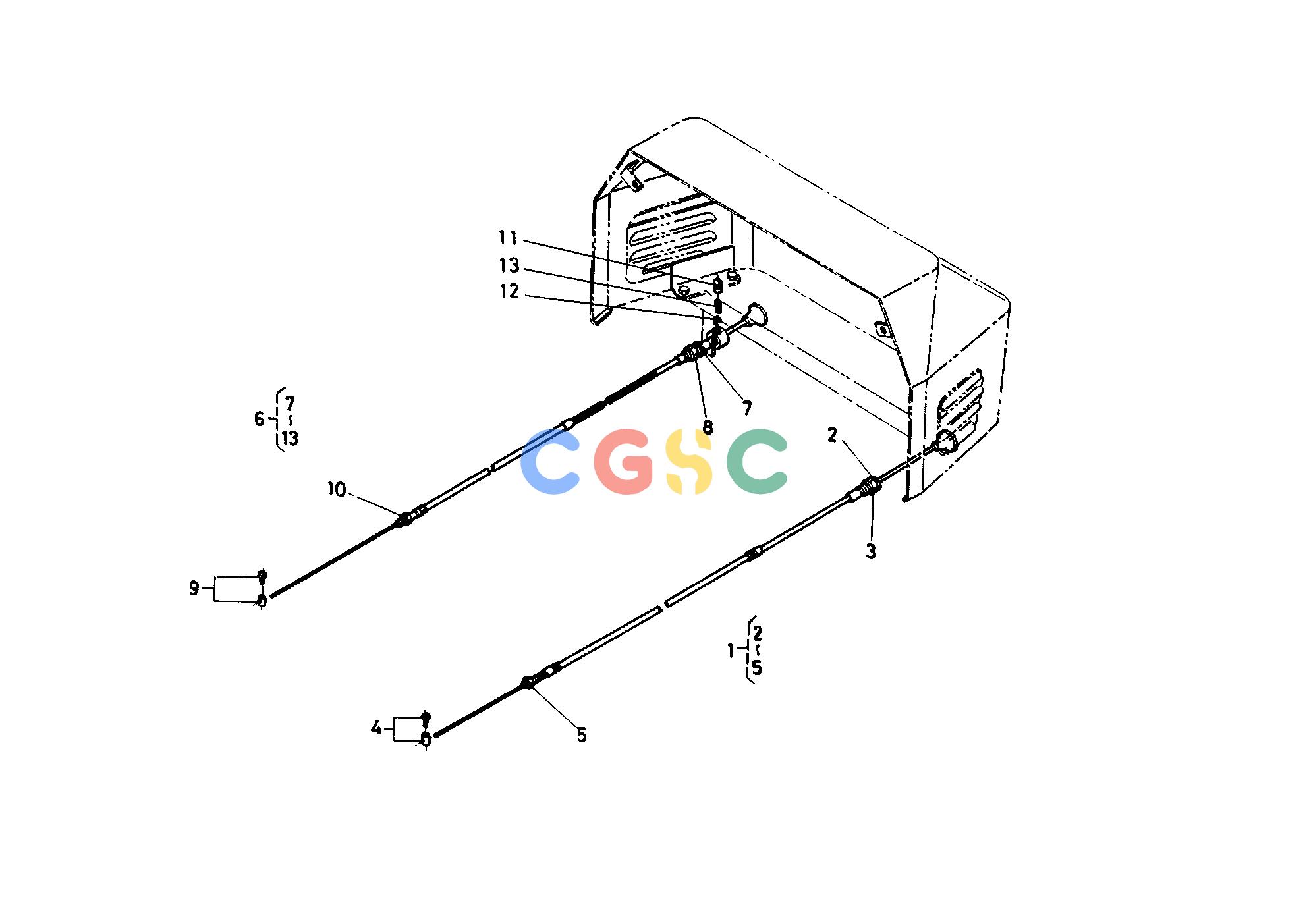

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6780053910
|
[1] |
COMP WIRE DECOMP.
|
0.2090(lbs); 0.095
|
| 001. |
H678053910
|
[1] |
COMP WIRE DECOMP.
|
0.2090(lbs); 0.095
|
| 002. |
0451250100
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 003. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 004. |
6711153930
|
[1] |
ASSY RIVET
|
0.0066(lbs); 0.003
|
| 005. |
0205450050
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 006. |
6780053920
|
[1] |
WIRE ENGINE STOP
|
0.2640(lbs); 0.120
|
| 006. |
H678053920
|
[1] |
WIRE ENGINE STOP
|
0.2640(lbs); 0.120
|
| 007. |
0451250100
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 008. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 009. |
6711153930
|
[1] |
ASSY RIVET
|
0.0066(lbs); 0.003
|
| 010. |
0205450050
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 011. |
6711153940
|
[1] |
SCREW
|
0.0066(lbs); 0.003
|
| 012. |
0771501603
|
[1] |
BALL
|
0.0220(lbs); 0.010
|
| 013. |
6711153950
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
