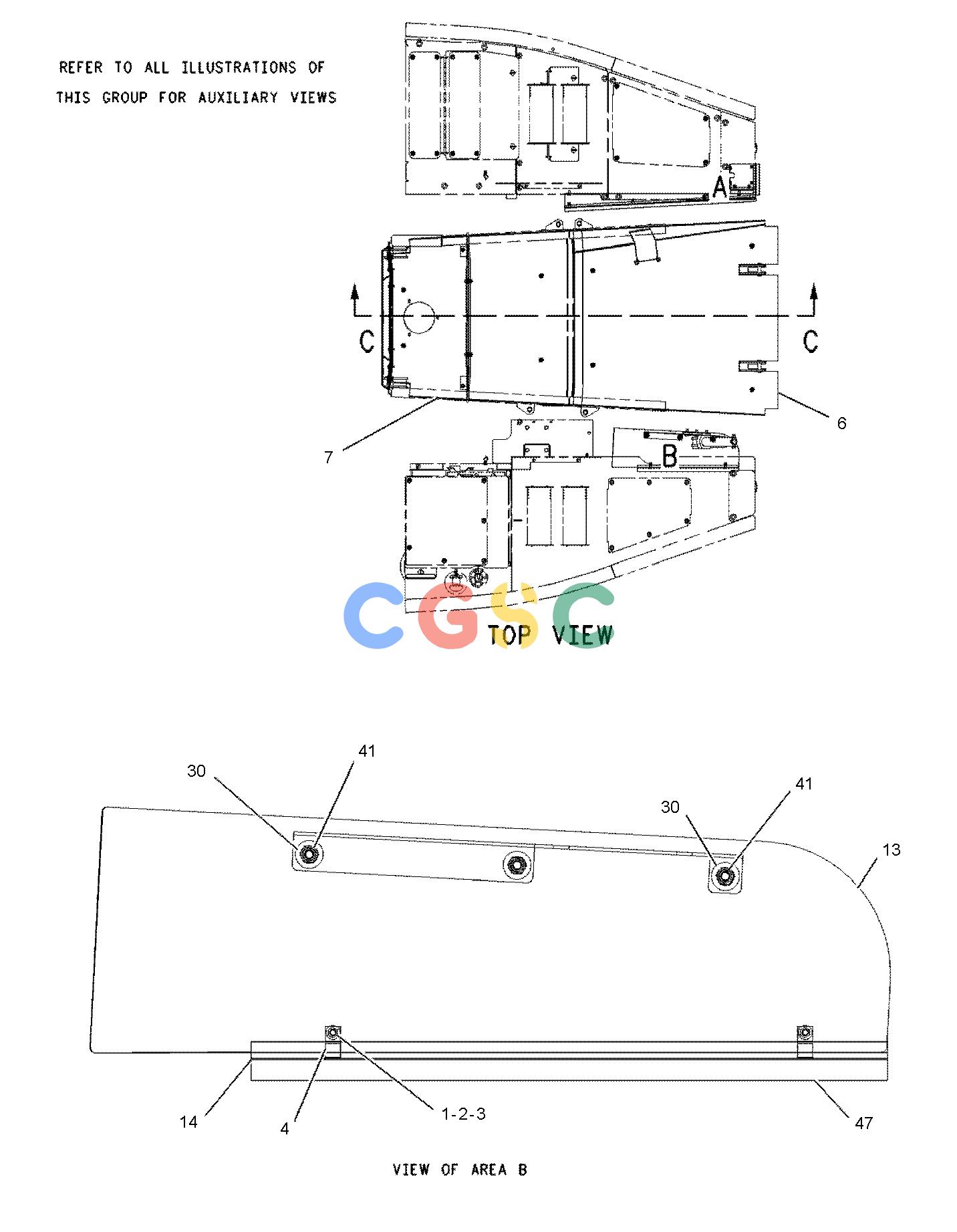

卡特零件查询（735） 216-2484: SUPPRESSION AR-SOUND
广数供应链运营团队, 15 02月, 2025，浏览：
690 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2U-2452 | [9] | LOCKNUT | |
| 2. | 2U-2453 | [9] | WASHER(5.6X12.6X1.22-MM THK) | |
| 3. | 2U-2589 | [9] | BOLT | |
| 4. | 2U-3416 | [9] | CLAMP-TUBE | |
| 5. | 7K-1181 | [6] | STRAP-CABLE | |
| 6. | 215-4406 | [1] | PANEL-INSULATION(FRONT) | |
| 7. | 215-4407 | [1] | PANEL-INSULATION | |
| 8. | 215-6562 | [1] | PANEL | |
| 9. | 215-6563 | [1] | PANEL | |
| 10. | 215-6564 | [1] | PANEL-INSULATION | |
| 11. | 215-7475 | [1] | PLATE-BAFFLE | |
| 12. | 215-7476 | [1] | PLATE-BAFFLE | |
| 13. | 215-7477 | [1] | PANEL | |
| 14. | 215-8103 | [1] | BRACKET AS | |
| 15. | 216-5114 | [2] | PLATE-SUPPORT | |
| 16. | 216-5115 | [1] | PLATE-SUPPORT | |
| 17. | 216-7280 | [2] | PANEL | |
| 18. | 217-8014 | [2] | STRAP | |
| 19. | 217-9644 | [1] | INSULATION | |
| 20. | 217-9645 | [1] | INSULATION | |
| 21. | 217-9646 | [6] | INSERT | |
| 22. | 218-1507 | [2] | PLATE-SUPPORT | |
| 23. | 0T-0055 | [1] | BOLT(3/8-16X4.25-IN) | |
| 24. | 131-3540M | [8] | LOCKNUT(M8X1.25-THD) | |
| 25. | 165-3936 | [2] | BOLT(3/8-16X4.5-IN) | |
| 26. | 1B-2790 | [2] | BOLT(5/16-18X1.375-IN) | |
| 27. | 5C-7261M | [6] | NUT(M8X1.25-THD) | |
| 28. | 5P-4116 | [10] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 29. | 7X-0578 | [8] | WASHER-HARD(10.2X32X2.5-MM THK) | |
| 30. | 7X-0613 | [3] | WASHER-HARD(8.8X25.5X5-MM THK) | |
| 31. | 8T-4908M | [8] | BOLT(M8X1.25X25-MM) | |
| 32. | 7X-7729 | [20] | WASHER(11X25X3-MM THK) | |
| 33. | 8S-9191 | [1] | BOLT(3/8-16X4-IN) | |
| 34. | 8T-0389M | [12] | LOCKNUT(M10X1.5-THD) | |
| 35. | 8T-4121 | [20] | WASHER-HARD(11X21X2.5-MM THK) | |
| 36. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 37. | 8T-4136M | [12] | BOLT(M10X1.5X25-MM) | |
| 38. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 39. | 8T-4172M | [17] | BOLT(M10X1.5X80-MM) | |
| 40. | 8T-4182M | [3] | BOLT(M10X1.5X45-MM) | |
| 41. | 8T-4189M | [3] | BOLT(M8X1.25X20-MM) | |
| 42. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 43. | 8T-4224 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| 44. | 8T-7547M | [6] | BOLT(M8X1.25X30-MM) | |
| 45. | 257-7094 | [1] | SEAL | |
| 46. | 217-9487 | [1] | SEAL | |
| 47. | 5P-5905D | | SEAL(1-M) | |
| 48. | 9X-8699E | | SEAL(160-CM) | |
| 49. | 217-7754 | [2] | STRIP-RUBBER | |
| 50. | 266-4043 | [1] | SEAL-RUBBER | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
