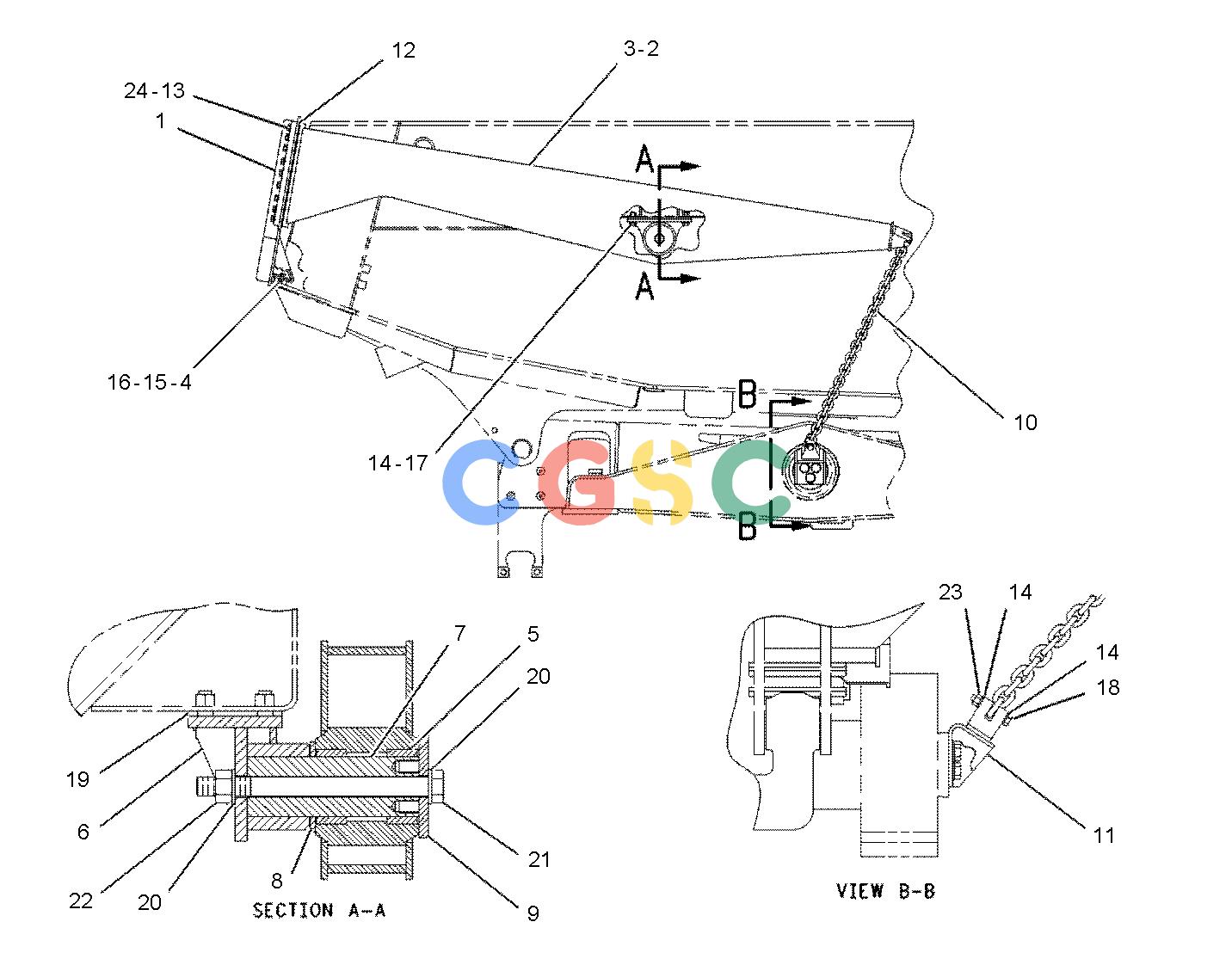

卡特零件查询（735） 232-0198: TAILGATE AR
广数供应链运营团队, 15 02月, 2025，浏览：
607 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3U-2837 | [2] | PAD-THRUST | |
| 2. | 4U-3165 | [2] | DISC | |
| 4. | 233-1363 | [2] | PIVOT(TAILGATE) | |
| 5. | 154-4812 | [2] | ABSORBER-SHOCK | |
| 6. | 154-6369B | [4] | SHIM(3-MM THK) | |
| 7. | 167-9033B | [4] | SHIM(6-MM THK) | |
| 8. | 176-4022 | [1] | PLATE AS-TAILGATE | |
| 9. | 192-9067 | [4] | BUSHING | |
| 10. | 192-9068 | [2] | PIN | |
| 11. | 219-6336 | [2] | PLATE | |
| 12. | 257-7244 | [2] | LINK(LONG) | |
| 13. | 225-8755 | [2] | CHAIN AS | |
| 14. | 227-4058 | [1] | ARM AS(SCISSORS, RH) | |
| 15. | 227-4059 | [1] | ARM AS(SCISSORS, LH) | |
| 16. | 257-7245 | [2] | LINK(SHORT) | |
| 18. | 3E-9411 | [18] | WASHER-HARD(17.5X38X6-MM THK) | |
| 19. | 7X-2489M | [4] | BOLT(M24X3X100-MM) | |
| 20. | 6V-7676M | [6] | NUT(M24X3-THD) | |
| 21. | 6V-8237 | [6] | WASHER(26X44X4-MM THK) | |
| 22. | 7X-2554M | [22] | BOLT(M16X2X70-MM) | |
| 23. | 7X-2557M | [4] | BOLT(M16X2X140-MM) | |
| 24. | 9X-8257 | [16] | WASHER(17.5X30X3.5-MM THK) | |
| 25. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 26. | 8T-4167 | [4] | WASHER-HARD(26X44X4-MM THK) | |
| 27. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 28. | 8T-4778M | [4] | LOCKNUT(M16X2-THD) | |
| 29. | 9X-8913M | [2] | BOLT(M24X3X300-MM) | |
| 30. | 8T-0668M | [6] | BOLT(M24X3X110-MM) | |
| 31. | 7X-2475M | [4] | BOLT(M16X2X130-MM) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
