卡特零件查询（735） 248-5605: PUMP GP-GEAR
广数供应链运营团队, 15 02月, 2025，浏览：
737 次

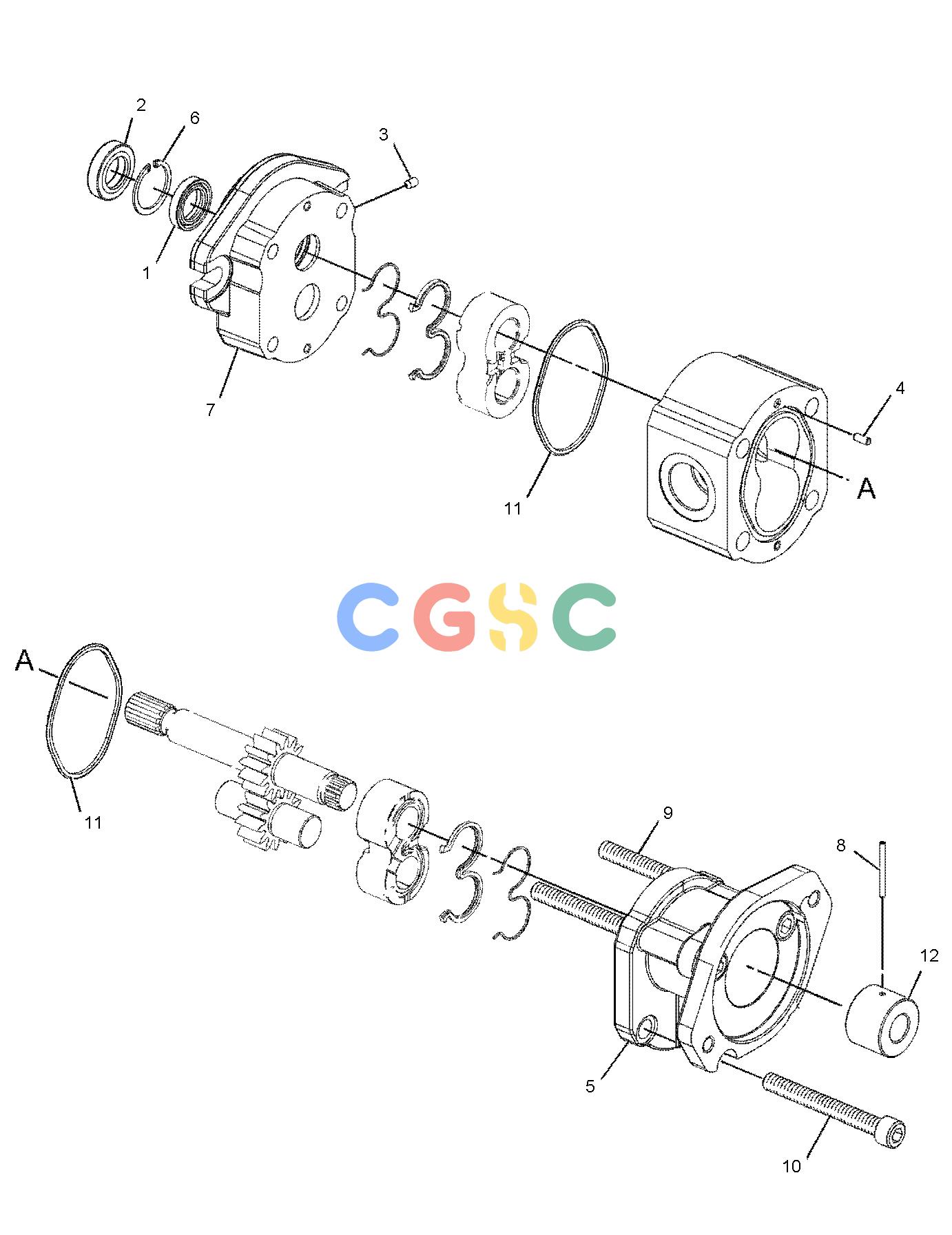

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 131-0715J | [1] | SEAL-SHAFT | |
| 2. | 204-4148J | [1] | SEAL-SHAFT | |
| 3. | 6E-2943 | [1] | PLUG | |
| 4. | 099-3095 | [4] | DOWEL | |
| 5. | 196-5731 | [1] | PLATE | |
| 6. | 8J-6273J | [1] | RING-RETAINING | |
| 7. | 204-4147 | [1] | FLANGE | |
| 8. | 4H-5128 | [1] | PIN-SPRING | |
| 9. | 086-2369M | [2] | BOLT-SOCKET HEAD(M10X1.5X130-MM) | |
| 10. | 095-0659M | [2] | BOLT-SOCKET HEAD(M10X1.5X85-MM) | |
| 11. | 004-1964J | [2] | SEAL-O-RING | |
| 12. | 255-3712 | [1] | COUPLING | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 201-5242J | [1] | KIT-SEAL(GEAR PUMP) | |
| | | | (INCLUDES SEALS & RINGS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
