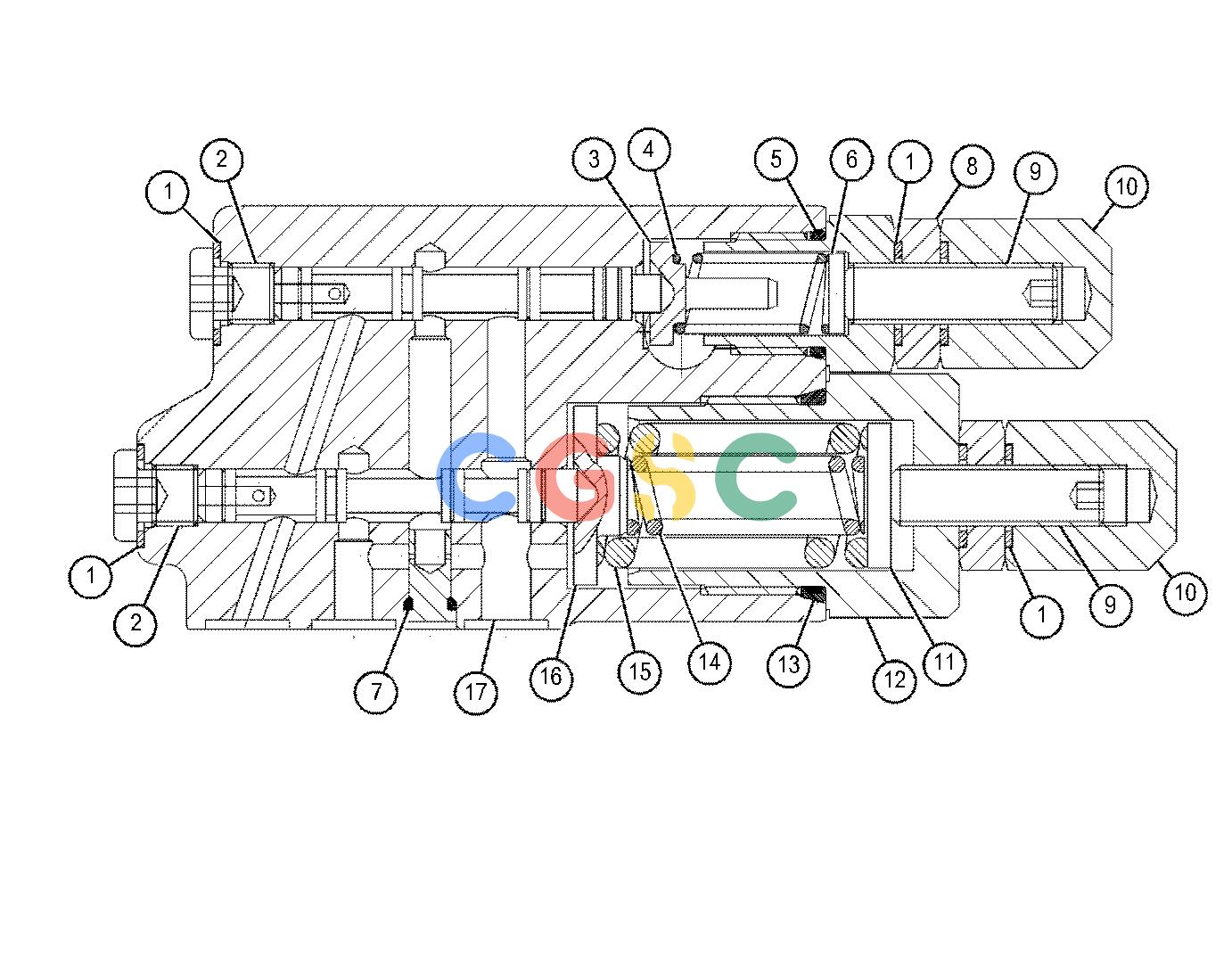

卡特零件查询（735） 184-5173: VALVE GP-PUMP CONTROL
广数供应链运营团队, 15 02月, 2025，浏览：
257 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6E-6528 | [6] | SEAL | |
| 2. | 6E-6527 | [2] | PLUG | |
| 3. | 193-3086 | [1] | RETAINER | |
| 4. | 193-3087 | [1] | SPRING | |
| 5. | 033-6043 | [1] | SEAL-O-RING | |
| 6. | 6E-3272 | [1] | SEAT | |
| 7. | 5P-9262 | [1] | SEAL-O-RING | |
| 8. | 6E-6538M | [2] | NUT-ADJUSTMENT(M8X1-THD) | |
| 9. | 6E-6537M | [2] | SCREW-ADJUSTMENT(M8X1X28-MM) | |
| 10. | 6E-6539M | [2] | NUT-CAP(M8X1-THD) | |
| 11. | 6E-3273 | [1] | SEAT | |
| 12. | 6E-6536 | [1] | PLUG | |
| 13. | 6V-8352 | [1] | SEAL-O-RING | |
| 14. | 193-1036 | [1] | SPRING | |
| 15. | 6E-3276 | [1] | SPRING | |
| 16. | 462-7927 | [1] | COLLAR-SPRING | |
| 17. | 105-2145 | [1] | VALVE-ORIFICE(HYDRAULIC OIL CHECK) | |
| | | | |
| | | | AVAILABLE REPLACEMENT PART(S): |
| | 393-5152Y | [1] | VALVE GP-PUMP CONTROL | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
