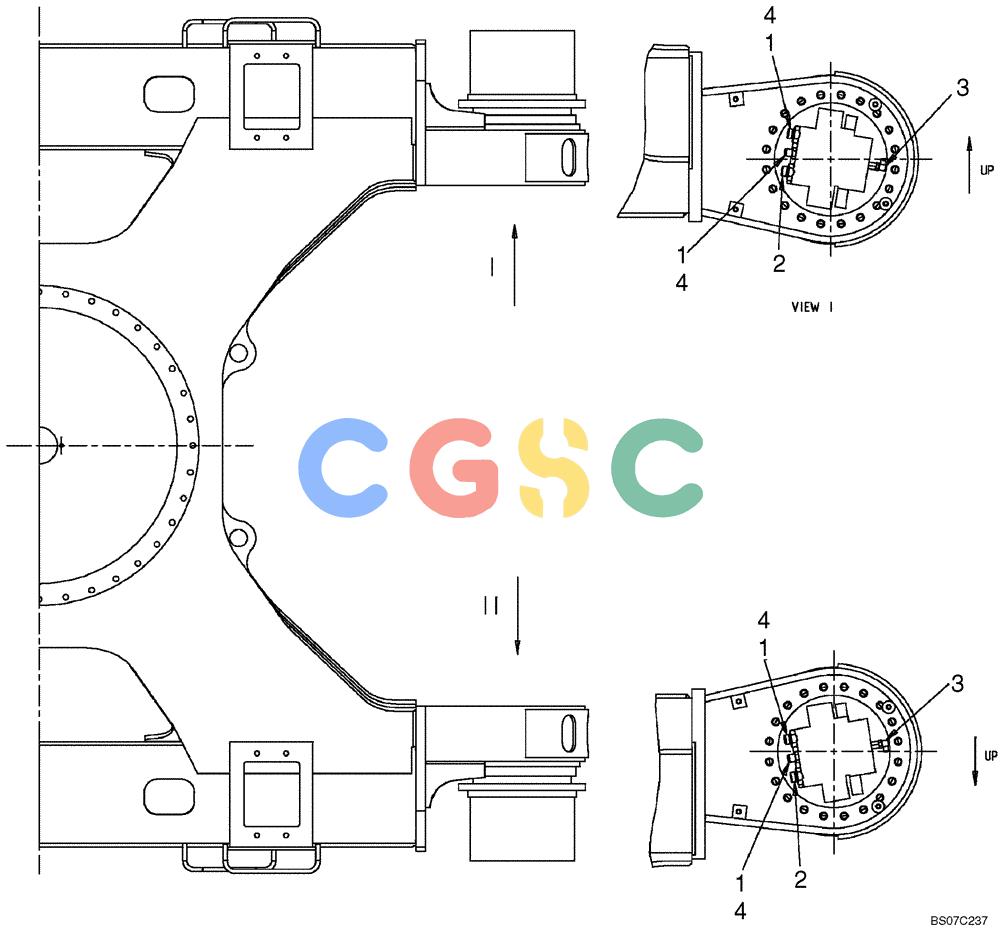

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (03-09[00]) - HYD LINES, PROPEL (YM12HU0002F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
129 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | HG24F10012G4 | [4] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P02400) |
| . . | ZD12P02400 | [1] | O-RING | KOB(Part of HG24F10012G4), ID 23.70 ± 0.24 x OD 30mm, Not Shown |
| 2. | 2444P1117D2 | [2] | HYD CONNECTOR | KOB1/4" PF - 1/4" PF x 110mm (4-21/64 in) (Incls. O-Ring ZD12P01100) |
| . . | ZD12P01100 | [1] | O-RING | KOB(Part of 2444P1117D2), ID 10.8mm x OD 13.2mm, Not Shown |
| 3. | ZH32X04000 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| . . | 237-6004 | [1] | O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro | CAS(Part of ZH32X04000), SAE No. 4-1, Not Shown Superseded by part number: 165202, 72186131 |
| 4. | ZD12A01600 | [4] | O-RING | KOBID 15.60 ± 0.12 x OD 19.16mm |
