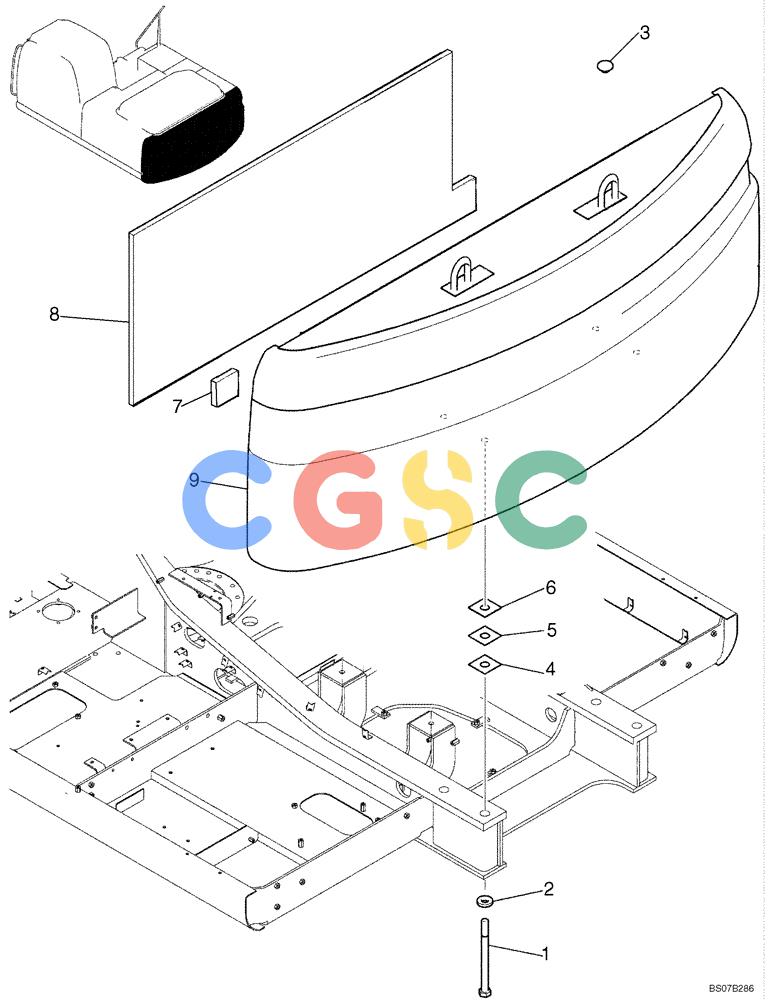

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-02[00]) - COUNTERWEIGHT INSTALLATION (YN60CU0004F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
278 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN60C01300P1 | [4] | CAP,M3 x 8mm | KOBScrew -- M27x335mm |
| 2. | YB60C01014P1 | [4] | WASHER | KOBSpecial |
| 3. | NA | [2] | NOT SERVICED | FORPlug |
| 4. | YN60C01242D1 | [3] | SHIM | KOB80x60x1.6mm |
| 5. | YN60C01242D2 | [3] | SHIM | KOB80x60x2.3mm |
| 6. | YN60C01242D3 | [4] | SHIM | KOB80x60x3.2mm |
| 7. | YB60C01011P1 | [1] | FOAM INSULATION | KOB |
| 8. | YB60C01012P1 | [1] | FOAM INSULATION | KOB |
| 9. | YM60CU0008P1 | [1] | COUNTERWEIGHT,3.0 Metric Tons | KOB3 Tons (metric) (3.3 Tons) |
