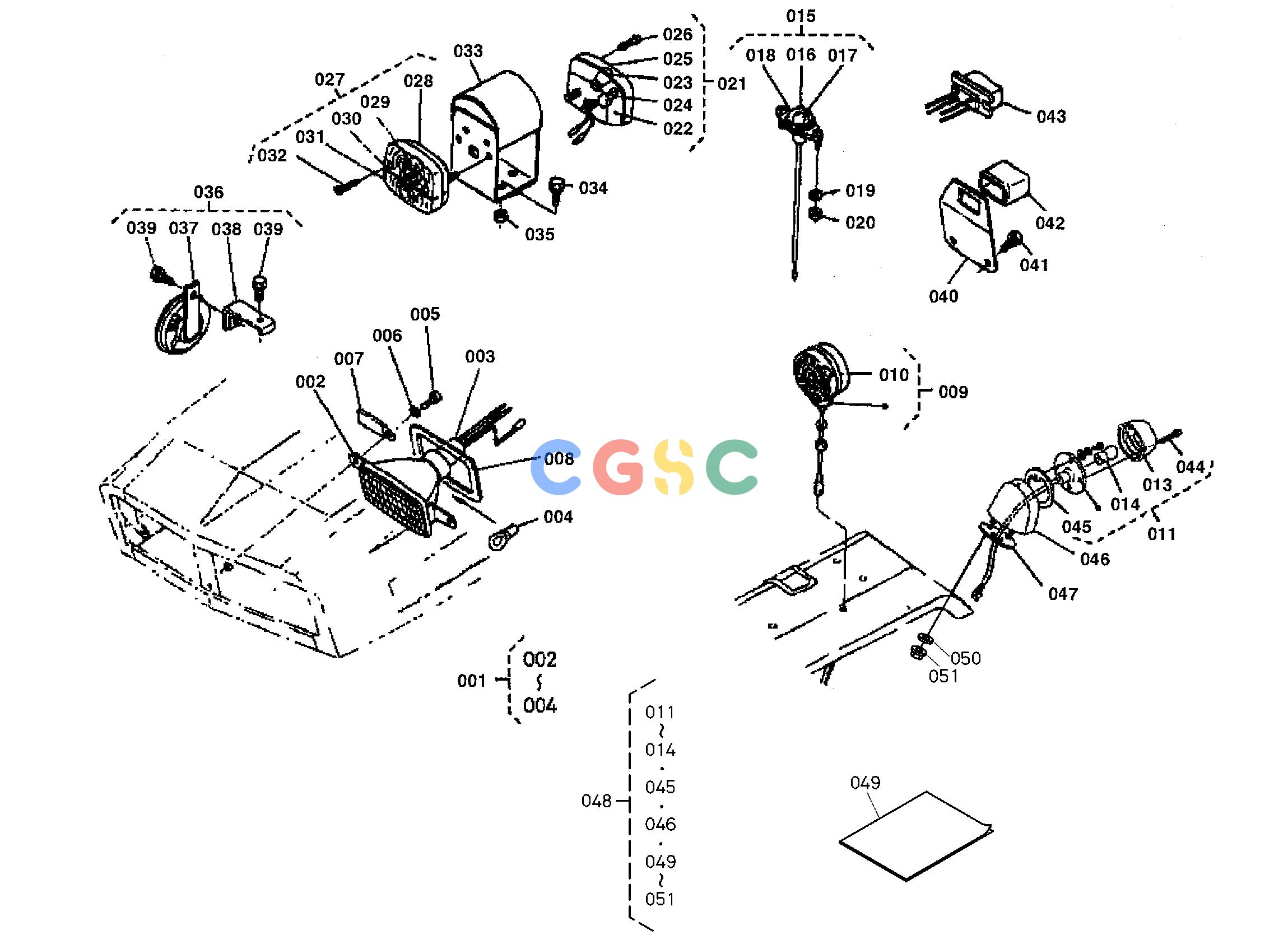

久保田零件查询T06400 HEAD LAMP AND FLASHER LAMP ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
864 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6711155700
|
[2] |
ASSY LAMP HEAD
|
0.4620(lbs); 0.210
|
| 003. |
6711155780
|
[2] |
SOCKET
|
0.0660(lbs); 0.030
|
| 004. |
6711155790
|
[2] |
BULB
|
0.0264(lbs); 0.012
|
| 005. |
0120250616
|
[4] |
BOLT
|
0.0110(lbs); 0.005
|
| 006. |
0401350060
|
[4] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 007. |
1524167570
|
[1] |
CLAMP CORD
|
0.0066(lbs); 0.003
|
| 008. |
6740154250
|
[1] |
GASKET LAMP
|
0.0220(lbs); 0.010
|
| 009. |
3545075010
|
[2] |
ASSY LAMP FLASHER
|
0.6600(lbs); 0.300
|
| 009. |
H354075000
|
[2] |
ASSY LAMP FLASHER
|
0.6600(lbs); 0.300
|
| 010. |
3545075022
|
[2] |
BULB
|
0.0176(lbs); 0.008
|
| 010. |
H354075000
|
[2] |
BULB
|
0.0176(lbs); 0.008
|
| 011. |
3435034100
|
[2] |
ASSY LAMP TAIL
|
0.2860(lbs); 0.130
|
| 011. |
3435034103
|
[2] |
ASSY LAMP TAIL
|
0.0000(lbs); 0.000
|
| 011. |
H324099100
|
[2] |
KIT,TAIL LAMP
|
0.0000(lbs); 0.000
|
| 011. |
H664099100
|
[2] |
KIT,TAIL LAMP
|
0.0000(lbs); 0.000
|
| 011. |
TC03034100
|
[2] |
ASSY LAMP TAIL
|
0.2640(lbs); 0.120
|
| 011. |
HTC0034100
|
[2] |
ASSY LAMP TAIL
|
0.2640(lbs); 0.120
|
| 013. |
3435034120
|
[2] |
LENS
|
0.1100(lbs); 0.050
|
| 013. |
TC03099210
|
[2] |
LENS
|
0.0770(lbs); 0.035
|
| 014. |
3435034140
|
[2] |
BULB
|
0.0176(lbs); 0.008
|
| 015. |
3325175860
|
[1] |
ASSY LAMP PLATE
|
0.1650(lbs); 0.075
|
| 017. |
3620075830
|
[1] |
BULB LAMP
|
0.0330(lbs); 0.015
|
| 019. |
0451250040
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 020. |
0205450040
|
[3] |
NUT
|
0.0066(lbs); 0.003
|
| 021. |
6670655730
|
[2] |
ASSY FLASHER LAMP R
|
0.7480(lbs); 0.340
|
| 021. |
H667055700
|
[2] |
ASSY FLASHER LAMP R
|
0.7480(lbs); 0.340
|
| 022. |
6670655910
|
[2] |
SOCKET
|
0.4224(lbs); 0.192
|
| 023. |
6670655920
|
[2] |
BULB 21W
|
0.0220(lbs); 0.010
|
| 024. |
6670655930
|
[2] |
BULB 5W
|
0.0220(lbs); 0.010
|
| 025. |
6670655940
|
[2] |
LENS
|
0.3300(lbs); 0.150
|
| 026. |
6670655950
|
[4] |
BOLT
|
0.0088(lbs); 0.004
|
| 026. |
H667055950
|
[4] |
BOLT
|
0.0088(lbs); 0.004
|
| 027. |
3517134200
|
[2] |
ASSY FLASHER LAMP F
|
0.8140(lbs); 0.370
|
| 028. |
6670655910
|
[2] |
SOCKET
|
0.4224(lbs); 0.192
|
| 029. |
6670655920
|
[2] |
BULB 21W
|
0.0220(lbs); 0.010
|
| 030. |
6670655930
|
[2] |
BULB 5W
|
0.0220(lbs); 0.010
|
| 031. |
3517134210
|
[2] |
LENS
|
0.3300(lbs); 0.150
|
| 032. |
6670655950
|
[4] |
BOLT
|
0.0088(lbs); 0.004
|
| 032. |
H667055950
|
[4] |
BOLT
|
0.0088(lbs); 0.004
|
| 033. |
6784055510
|
[2] |
SUPPORT
|
0.7480(lbs); 0.340
|
| 034. |
0120250614
|
[4] |
BOLT
|
0.0132(lbs); 0.006
|
| 035. |
0201450060
|
[4] |
NUT
|
0.0044(lbs); 0.002
|
| 036. |
6788055140
|
[1] |
ASSY HORN
|
1.0780(lbs); 0.490
|
| 037. |
6670655710
|
[1] |
HORN
|
0.8140(lbs); 0.370
|
| 038. |
6788055160
|
[1] |
STAY HORN
|
0.1980(lbs); 0.090
|
| 039. |
0112350828
|
[2] |
BOLT
|
0.0308(lbs); 0.014
|
| 040. |
6784045910
|
[1] |
STAY COUPLER
|
0.1540(lbs); 0.070
|
| 041. |
0112350814
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 042. |
3620077390
|
[1] |
CAP
|
0.0176(lbs); 0.008
|
| 043. |
6670655230
|
[1] |
ASSY COUPLER
|
0.0308(lbs); 0.014
|
| 044. |
0305650335
|
[4] |
SCREW WITH WASHER
|
0.0022(lbs); 0.001
|
| 045. |
3435099220
|
[2] |
GASKET LENS
|
0.0220(lbs); 0.010
|
| 045. |
3435099222
|
[2] |
GASKET LENS
|
0.0220(lbs); 0.010
|
| 045. |
TC03099220
|
[2] |
GASKET LENS
|
0.0264(lbs); 0.012
|
| 046. |
6641655540
|
[2] |
BRACKET TAIL LIGHT
|
0.2332(lbs); 0.106
|
| 046. |
6641655542
|
[2] |
BRACKET TAIL LIGHT
|
0.2332(lbs); 0.106
|
| 047. |
6780055530
|
[2] |
CUSHION
|
0.0330(lbs); 0.015
|
| 048. |
H664099100
|
[1] |
KIT TAIL LAMP
|
0.5500(lbs); 0.250
|
| 049. |
9999999999
|
[1] |
MANUAL INSTRUCTION
|
0.0000(lbs); 0.000
|
| 050. |
0451250060
|
[4] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 051. |
0201450060
|
[4] |
NUT
|
0.0044(lbs); 0.002
|
