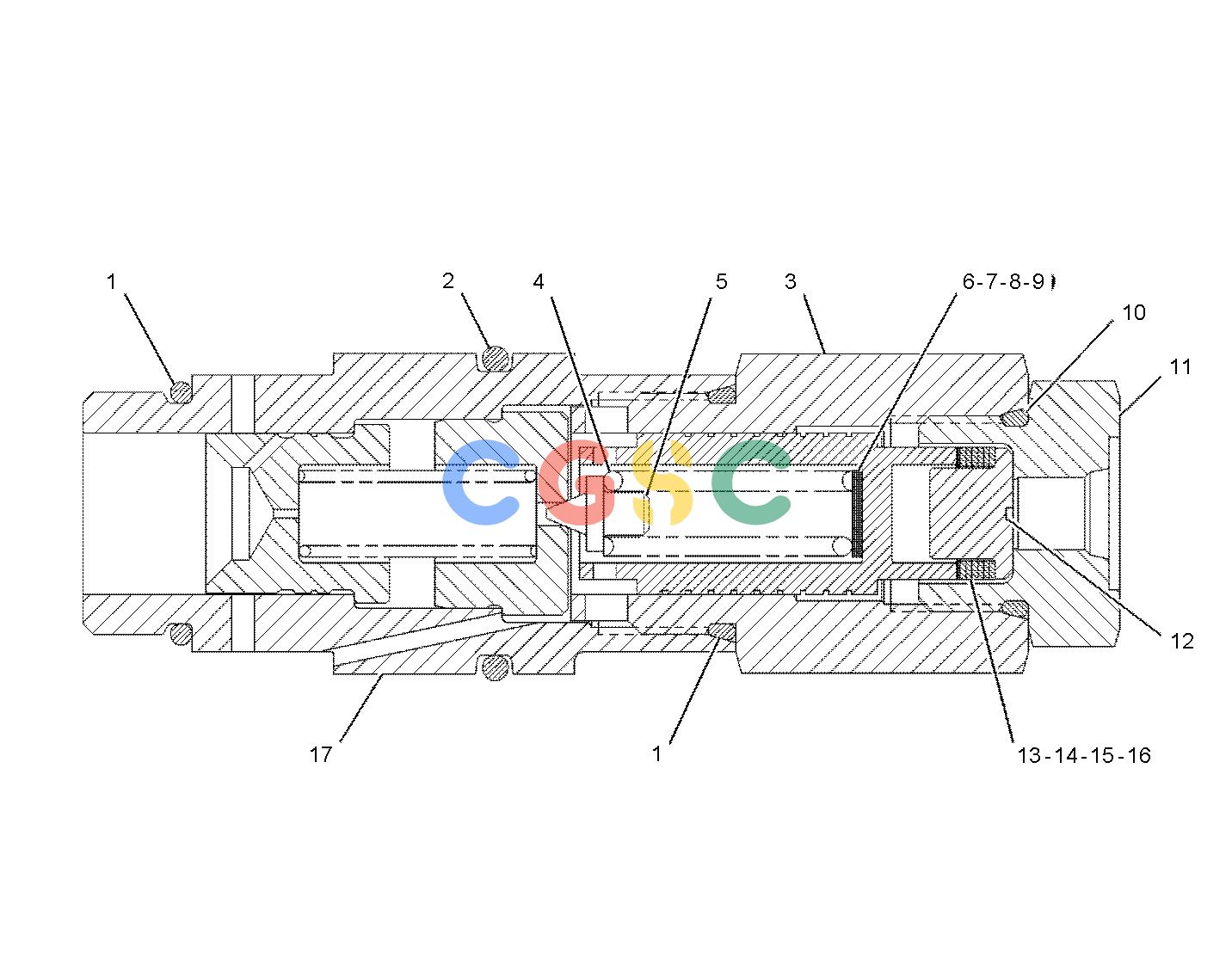

卡特零件查询（735） 171-5911: VALVE GP-RELIEF
广数供应链运营团队, 15 02月, 2025，浏览：
181 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7M-8485 | [2] | SEAL-O-RING | |
| 2. | 4J-0522 | [1] | SEAL-O-RING | |
| 3. | 4T-5988 | [1] | VALVE GP-RELIEF(PILOT) | |
| | 4T-4603 | [1] | PISTON | |
| 4. | 171-5910 | [1] | SPRING | |
| 5. | 8J-0331 | [1] | VALVE | |
| 6. | 3J-7473B | [1] | SHIM(0.12-MM THK) | |
| 7. | 3H-2549B | [5] | SHIM(0.254-MM THK) | |
| 8. | 4T-4660B | [1] | SHIM(0.08-MM THK) | |
| 9. | 3J-7470B | [1] | SHIM(1.22-MM THK) | |
| 10. | 3D-2824 | [1] | SEAL-O-RING | |
| 11. | 6P-4975 | [1] | ADAPTER | |
| 12. | 4T-4605 | [1] | RETAINER | |
| 13. | 4M-6978B | [2] | SHIM(0.05-MM THK) | |
| 14. | 4M-6979B | [1] | SHIM(0.13-MM THK) | |
| 15. | 4M-6980B | [1] | SHIM(0.25-MM THK) | |
| 16. | 4T-4659B | [6] | SHIM(0.8-MM THK) | |
| 17. | 103-8652 | [1] | VALVE GP-RELIEF(TANK) | |
| | 8H-3532 | [1] | SPRING-VALVE | |
| | B | | USE AS REQUIRED |
