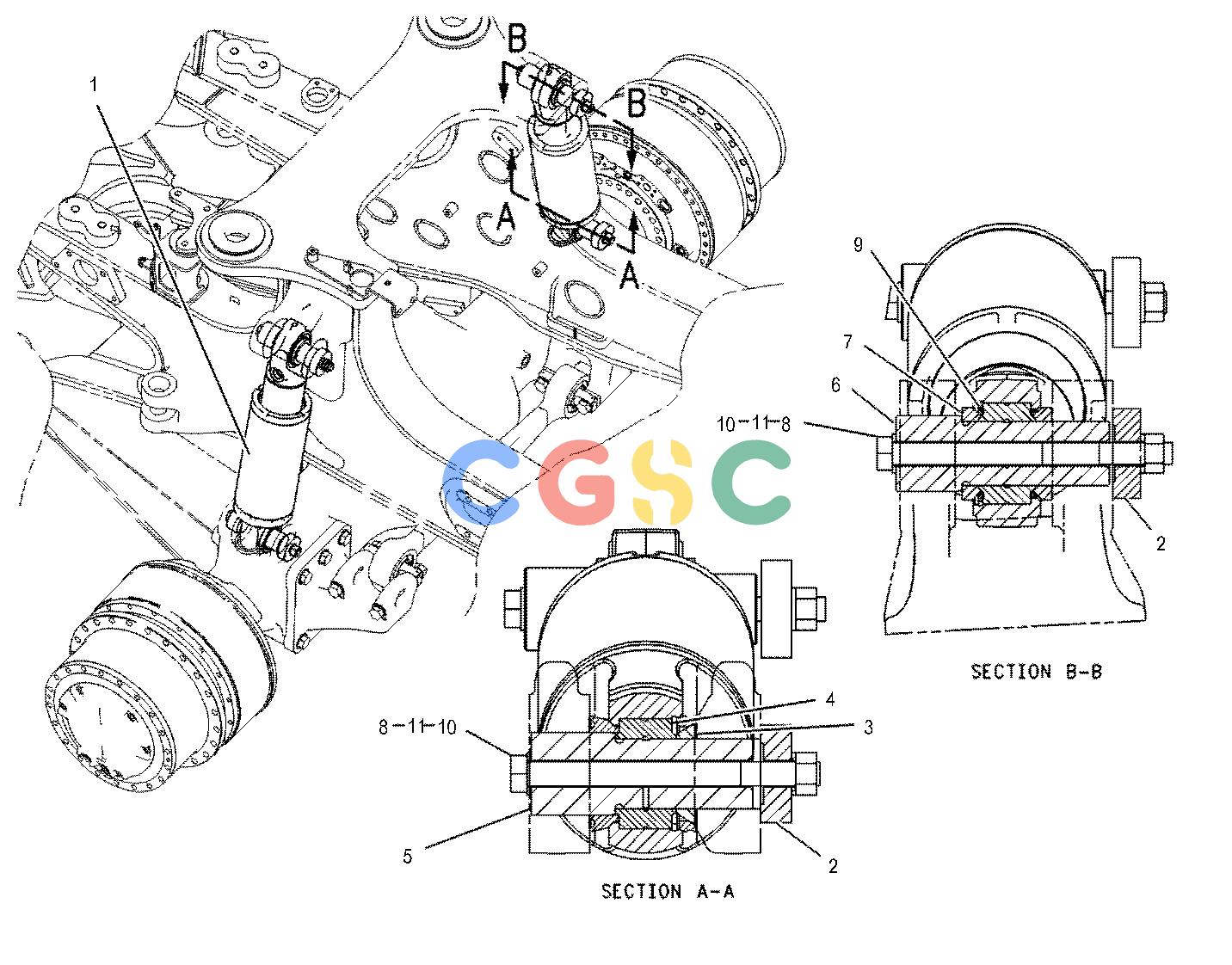

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 146-8928Y | [2] | CYLINDER GP-SUSPENSION | |
| 2. | 174-5639 | [4] | WASHER-SPECIAL | |
| 3. | 174-5643 | [2] | SPACER-SPECIAL | |
| 4. | 176-9922 | [2] | SEAL | |
| 5. | 187-9001 | [2] | PIN | |
| 6. | 204-0499 | [2] | PIN | |
| 7. | 204-0500 | [4] | SPACER(16.5-MM THK) | |
| 8. | 089-7990M | [4] | BOLT(M20X2.5X250-MM) | |
| 9. | 7F-2122 | [4] | SEAL-O-RING | |
| 10. | 8T-4123 | [8] | WASHER(3.62X5.75X0.375-MM THK) | |
| 11. | 8T-4131M | [4] | NUT(M20X2.5-THD) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
