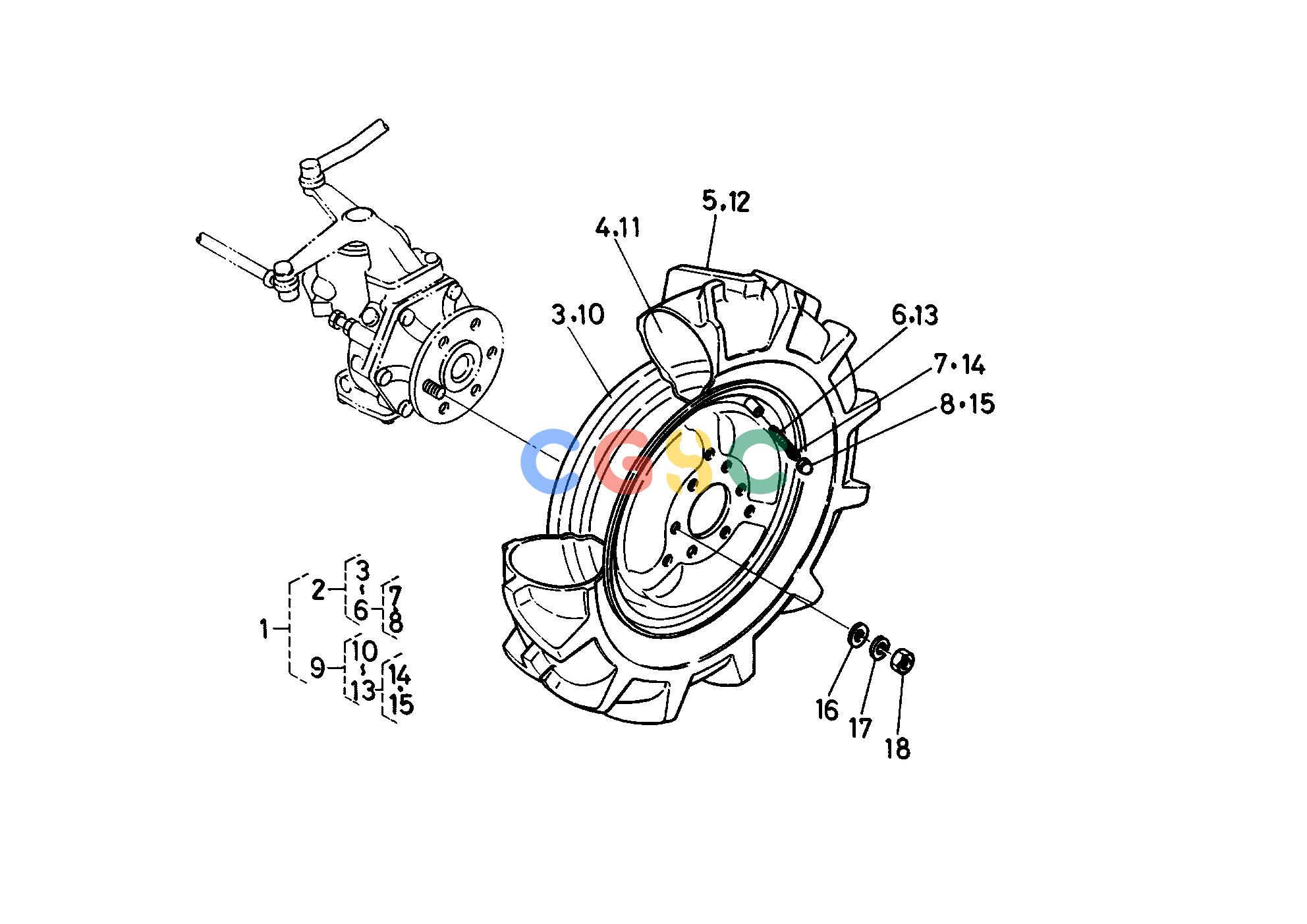

久保田零件查询T07800 FRONT WHEEL (6-12) [B8200HST-DP] FRONT AXLE/FRONT WHEELEPC Kubota online_久保田Kubota_工程机械

久保田零件查询T07800 FRONT WHEEL (6-12) [B8200HST-DP] FRONT AXLE/FRONT WHEELEPC Kubota online

广数供应链运营团队, 15 02月, 2025，浏览： 564 次

Pos.	Part No	Qty	Parts name	Comments
001.	6781057400	[1]	ASSY TIRE 6-12	REF.No.002 009 62.4800(lbs); 28.400
002.	6781057410	[1]	ASSY TIRE 6-12 LH	REF.No.003 TO 006 0.0000(lbs); 0.000
003.	6781057420	[1]	WHEEL	13.6400(lbs); 6.200
004.	9301601120	[1]	TUBE	1.5400(lbs); 0.700
005.	6781057430	[1]	TIRE 6-12	17.1600(lbs); 7.800
006.	3215027700	[1]	ASSY VALVE	REF.No.007 008 0.0022(lbs); 0.001
007.	3227011650	[1]	VALVE	0.0044(lbs); 0.002
008.	3215027740	[1]	CAP VALVE	0.0066(lbs); 0.003
009.	6781057440	[1]	ASSY TIRE 6-12 RH	REF.No.010 TO 013 0.0000(lbs); 0.000
010.	6781057420	[1]	WHEEL	13.6400(lbs); 6.200
011.	9301601120	[1]	TUBE	1.5400(lbs); 0.700
012.	6781057430	[1]	TIRE 6-12	17.1600(lbs); 7.800
013.	3215027700	[1]	ASSY VALVE	REF.No.014 015 0.0022(lbs); 0.001
014.	3227011650	[1]	VALVE	0.0044(lbs); 0.002
015.	3215027740	[1]	CAP VALVE	0.0066(lbs); 0.003
016.	0401350120	[12]	WASHER PLAIN	0.0154(lbs); 0.007
017.	0451250120	[12]	WASHER SPRING	0.0066(lbs); 0.003
018.	0217450120	[12]	NUT	0.0220(lbs); 0.010
