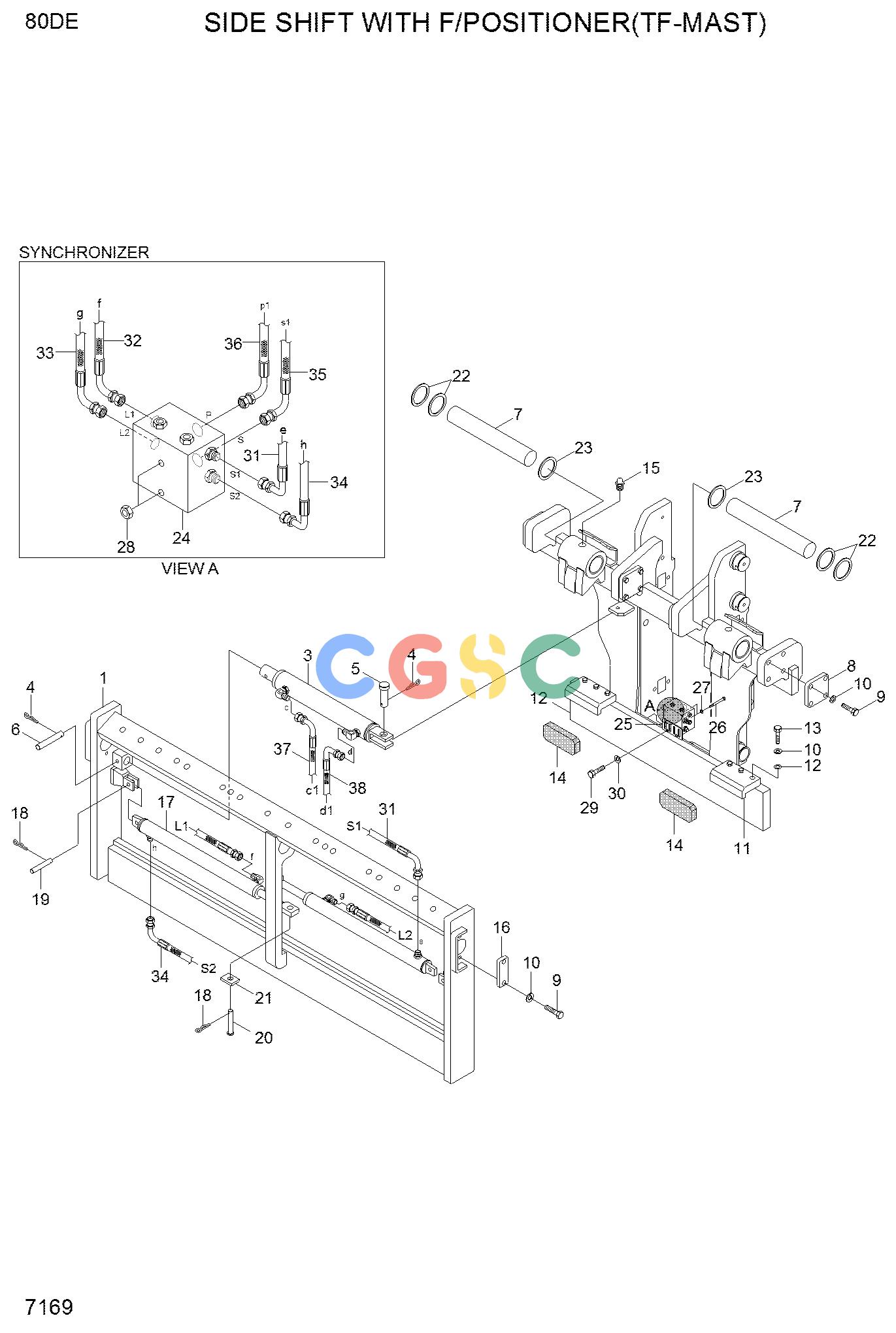

现代零件查询80D-7E(-#0507) SIDE SHIFT WITH F/POSTIONER (TF-MAST)EPC Hyundai _现代Hyundai_工程机械

现代零件查询80D-7E(-#0507) SIDE SHIFT WITH F/POSTIONER (TF-MAST)EPC Hyundai

广数供应链运营团队, 15 02月, 2025，浏览： 947 次

Pos.	Part No	Qty	Parts name	Comments
.	69FQ-30110	[1]	INT S-SHIFT & F-POSITION	SYNCHRONIZER
.	69FQ-30120	[1]	INT S-SHIFT & F-POSITION	INDEPENDENT
1.	69FQ-30200	[1]	CARRIAGE WA	SYNCHRONIZER
1.	69FQ-30300	[1]	CARRIAGE WA	INDEPENDENT
2.	JKSS5-026-C01	[1]	SIDE SHIFT ASSY
3.	JKISS5-001-Z00	[1]	CYLINDER-SIDE SHIFT
4.	JKRP-0020	[2]	R-PIN
5.	JKSS-D4-0301P	[1]	PIN-CYLINDER BASE
6.	JKSS-D4-0302P	[1]	PIN-CYLINDER ROD
7.	JKISS5-001-A03	[2]	BAR
8.	JKISS5-001-A04	[4]	COVER-1
9.	JKHHB-1660	[20]	BOLT-HEX
10.	JKHSW-16	[26]	WASHER-SPRING
11.	JKISS5-001-A05	[2]	HOOK
12.	JKISS5-001-A06	[4]	SPACER
13.	JKHHB-1670	[6]	BOLT-HEX
14.	JKISS5-001-A07	[2]	SLIDE BAR
15.	JKGN-00T1	[2]	GREASE NIPPLE
16.	JKISS5-001-A08	[2]	COVER-2
17.	JKISS5-027-Z00	[2]	CYLINDER ASSY-F/P
18.	66FQ-00430	[4]	R-PIN
19.	66FQ-00420	[2]	PIN BASE
20.	66FQ-00440	[2]	PIN ROD
21.	68FQ-70210	[2]	BRACKET-CYLINDER ROD
22.	@	[4]	OILLES BEARING
23.	@	[2]	C-RING, STOP
24.	DV-FP01-0001	[1]	FLOW DIVIDER	SYNC
25.	ITSS-S57B-0106	[1]	PLATE	SYNC
26.	S107-080906	[2]	BOLT-SOCKET	SYNC
27.	S411-080006	[2]	WASHER-SPRING	SYNC
28.	S206-081006	[2]	NUT-HEX	SYNC
29.	S107-100306	[2]	BOLT-SOCKET	SYNC
30.	S411-100006	[2]	WASHER-SPRING	SYNC
31.	P933-064023	[1]	HOSE ASSY-ORFS 0X90	SYNC
32.	P933-064008	[1]	HOSE ASSY-ORFS 0X90	SYNC
33.	P933-064010	[1]	HOSE ASSY-ORFS 0X90	SYNC
34.	P933-064019	[1]	HOSE ASSY-ORFS 0X90	SYNC
35.	P933-064011	[1]	HOSE ASSY-ORFS 0X90	SYNC
36.	P933-064011	[1]	HOSE ASSY-ORFS 0X90	SYNC
37.	P933-064009	[1]	HOSE ASSY-ORFS 0X90	SYNC
37.	P933-064025	[1]	HOSE ASSY-ORFS 0X90	IND
38.	P933-064016	[1]	HOSE ASSY-ORFS 0X90	SYNC
38.	P933-064017	[1]	HOSE ASSY-ORFS 0X90	IND
