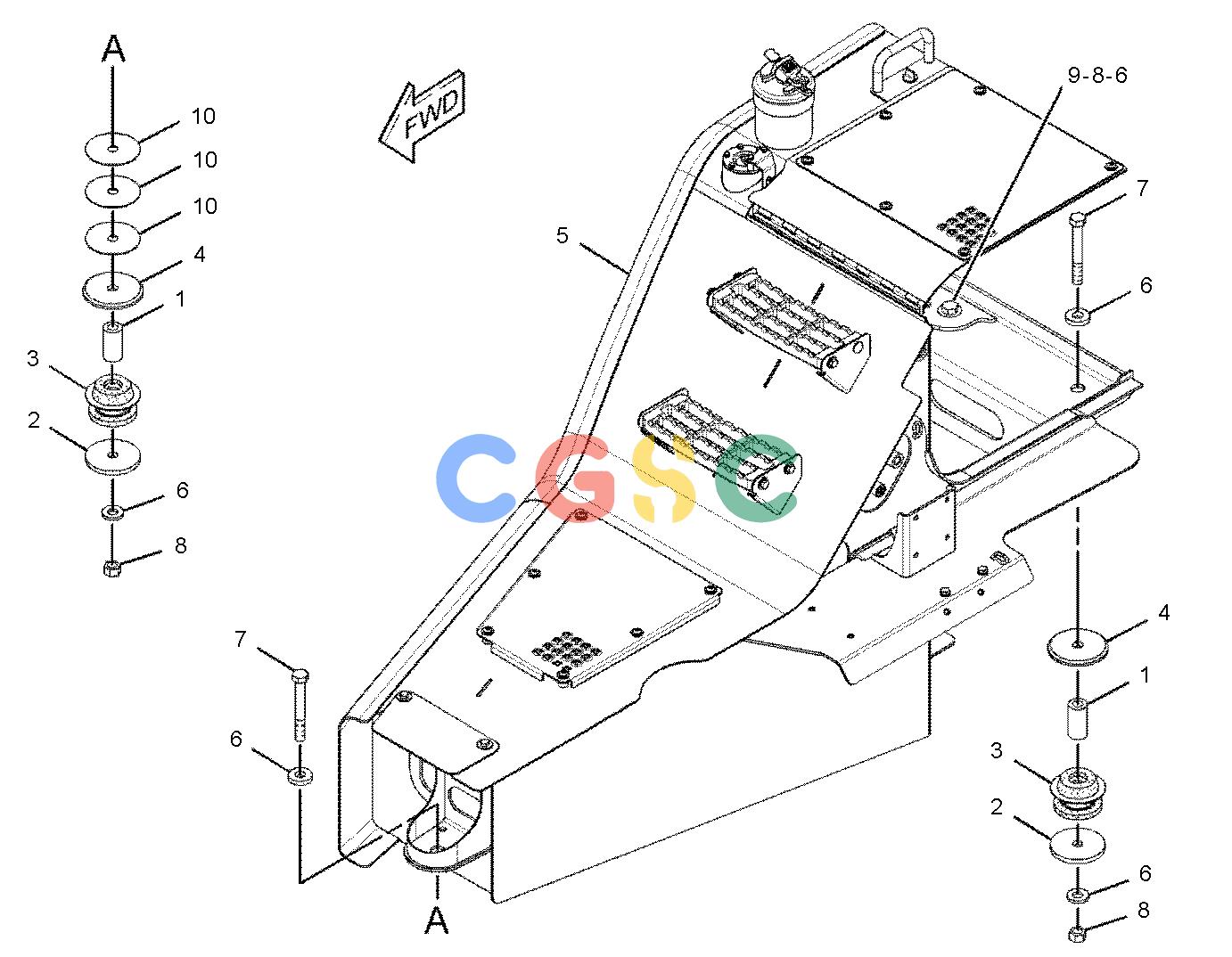

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 9W-6582 | [3] | SLEEVE | |
| 2. | 9W-6584 | [3] | WASHER(20.5X114X10-MM THK) | |
| 3. | 9W-9920 | [3] | MOUNTING AS-VIBRATION ISOLATOR | |
| 4. | 205-3984 | [3] | WASHER-SPECIAL | |
| 5. | 185-1747Y | [1] | TANK GP-FUEL | |
| 6. | 6C-9149 | [6] | WASHER(22X50X10-MM THK) | |
| 7. | 8T-4170M | [2] | BOLT(M20X2.5X150-MM) | |
| 8. | 8T-4131M | [3] | NUT(M20X2.5-THD) | |
| 9. | 7X-2488M | [1] | BOLT(M20X2.5X160-MM) | |
| 10. | 092-2267B | [3] | SHIM(2-MM THK) | |
| B | USE AS REQUIRED | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
