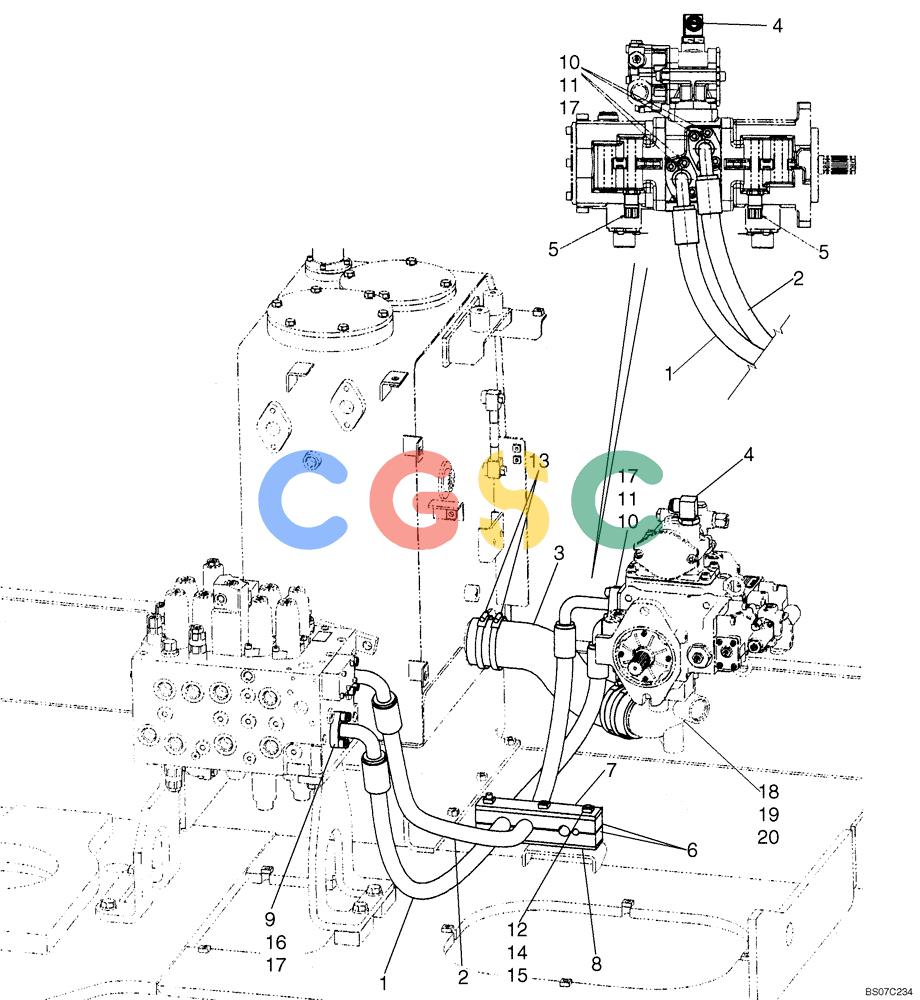

| 1. | YM30H01043D1 | [1] | HOSE | KOB1450mm Long (57-5/64 in) |
| 2. | YM30H01042D1 | [1] | HOSE | KOB1450mm Long (57-5/64 in) |
| 3. | YM30H01037P1 | [1] | HYDRAULIC HOSE | KOBID 76.3 x OD 90.3 x 366mm |
| 4. | ZH32X12000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/4" x PF 3/4", O-Ring | KOBElbow, 90° -- 3/4 PF (Incls. O-Ring 237-6012) |
| . . | 237-6012 | [1] | O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro | CAS(Part of ZH32X12000), SAE No. 12-1, Not Shown Superseded by part number: 167266, 79051113, 72186120 |
| 5. | YN52S00048P1 | [2] | SENSOR | SMPressure (High Pressure) (Incls. O-Ring ZD12P01400) Superseded by part number: LS52S00015P1 |
| . . | ZD12P01400 | [1] | O-RING | KOB(Part of YN52S00048P1), ID 13.80 ± 0.19 x OD 18mm, Not Shown |
| 6. | YB30H01019P1 | [2] | RUBBER | KOB |
| 7. | YM30H01038P1 | [1] | PLATE ASSY. | KOB |
| 8. | YN30H01217P1 | [1] | PLATE | KOB |
| 9. | ZE12X16000 | [4] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) |
| 10. | ZE13X12000 | [4] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) |
| 11. | 45Z91D73 | [2] | O-RING | KOBID 24.99 ± 0.15 OD 32.05mm |
| 12. | ZY26X06056 | [3] | SPACER | KOBID 12.7 x OD 17.3 x 56mm Long |
| 13. | YB05P01167D7 | [4] | CLAMP | KOB |
| 14. | ZS18C12090 | [3] | SCREW,Hex, M12 x 90mm | KOBM12x1.75x90mm |
| 15. | ZW16H12000 | [3] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 16. | 45Z91D150 | [2] | O-RING | KOBID 32.92 ± 0.15 OD 34.45mm |
| 17. | ZS28C10030 | [16] | SCREW,Hex Socket Head, M10 x 30mm | KOBM10x1.50x30mm |
| 18. | ZS28C12030 | [4] | SCREW,Hex Socket Head, M12 x 30mm | KOBScrew -- M12x1.75x30mm |
| 19. | YM30H01036P1 | [1] | ELBOW | KOBManifold -- No service parts Superseded by part number: 87338582 |
| 20. | 45Z91D124 | [1] | O-RING | KOBID 107.32 ± 0.38 OD 118mm |
