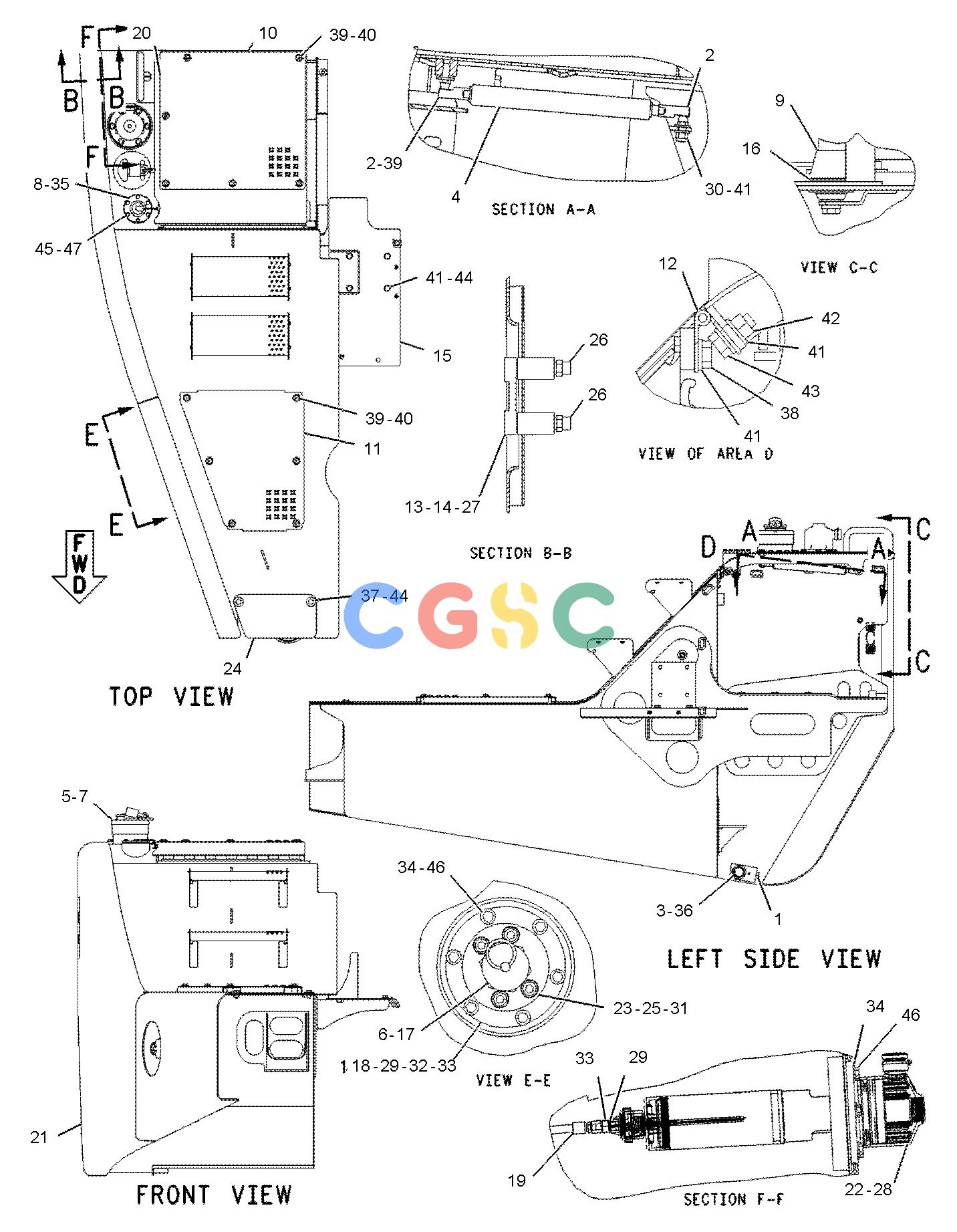

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 1H-8306 | [1] | SCREW-PURGE(1/2-20X1.625-IN) | |
| 2. | 2U-5283 | [2] | ROD END | |
| 3. | 5P-4484 | [1] | PLUG-MAGNETIC(FUEL TANK) | |
| 4. | 5U-6733 | [1] | STRUT | |
| 5. | 7X-7700 | [1] | CAP AS-FUEL(LOCKABLE, VENTED) | |
| 9X-2205 | [1] | KIT-CAP FILTER(FUEL TANK) | ||
| (INCLUDES FILTER AS, VALVE, SCREW & GASKETS) | ||||
| 9X-8600 | [1] | SEAL-O-RING | ||
| 6. | 9D-0630 | [1] | CAP-DUST | |
| 7. | 9P-7121 | [1] | STRAINER-FUEL(FUEL TANK)(FAST FILL) | |
| 8. | 157-8859 | [1] | SENDER AS-FUEL LEVEL | |
| 6C-3060 | [1] | GASKET | ||
| 317-9182 | [1] | KIT-DIAL SENSOR | ||
| (INCLUDES SENSOR AS, SCREWS, RECEPTACLE KIT & CONNECTOR PINS) | ||||
| 9. | 187-6156 | [1] | LATCH AS | |
| 10. | 191-2214 | [1] | PLATE-TREAD | |
| 11. | 191-2215 | [1] | PLATE-TREAD | |
| 12. | 191-8104 | [1] | HINGE AS | |
| 13. | 192-7619 | [1] | GAUGE AS-SIGHT(STEERING OIL) | |
| 150-2952B | [2] | ADAPTER | ||
| 173-5549B | [4] | SEAL-O-RING | ||
| 14. | 193-0249 | [1] | PLATE(LIQUID LEVEL) | |
| 15. | 193-5676 | [1] | SHIELD AS | |
| 7T-1099 | [1] | LINK | ||
| 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | ||
| 16. | 201-1379 | [2] | SHIM(1-MM THK) | |
| 17. | 217-5703 | [1] | RECEIVER(FAST FILL FUEL) | |
| 18. | 221-7693 | [1] | VALVE(FAST FILL FUEL) | |
| 19. | 223-1404 | [1] | HOSE AS | |
| 20. | 223-7420 | [1] | COVER AS | |
| 8T-3490M | [6] | NUT-WELD(M10X1.5-THD) | ||
| 21. | 223-7479 | [1] | TANK AS | |
| 22. | 224-2988 | [1] | VENT AS | |
| 23. | 225-0556 | [1] | ADAPTER | |
| 24. | 232-1106 | [1] | PLATE-COVER | |
| 25. | 095-0670M | [4] | BOLT(M12X1.75X45-MM) | |
| 26. | 148-8326 | [2] | CONNECTOR AS | |
| (EACH INCLUDES) | ||||
| 3J-7354 | [1] | SEAL-O-RING | ||
| 6V-8397 | [1] | SEAL-O-RING | ||
| 6V-9872 | [1] | CONNECTOR | ||
| 27. | 173-5549 | [4] | SEAL-O-RING | |
| 28. | 1H-8128 | [1] | SEAL-O-RING | |
| 29. | 1J-9671 | [2] | SEAL-O-RING | |
| 30. | 2F-8616 | [1] | NUT-SELF LOCKING(3/8-24-THD) | |
| 31. | 4J-0527 | [1] | SEAL-O-RING | |
| 32. | 5H-6734 | [1] | SEAL-O-RING | |
| 33. | 5P-2618 | [2] | CONNECTOR | |
| 34. | 5P-4116 | [12] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 35. | 6C-3060 | [1] | GASKET | |
| 36. | 7M-8485 | [1] | SEAL-O-RING | |
| 37. | 7X-0578 | [2] | WASHER-HARD(10.2X32X2.5-MM THK) | |
| 38. | 7X-2621M | [5] | BOLT(M10X1.5X12-MM) | |
| 39. | 7X-7729 | [13] | WASHER(11X25X3-MM THK) | |
| 40. | 8C-8585M | [12] | SCREW-BUTTON HEAD(M10X1.5X20-MM) | |
| 41. | 8T-4121 | [23] | WASHER-HARD(11X21X2.5-MM THK) | |
| 42. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 43. | 8T-4136M | [6] | BOLT(M10X1.5X25-MM) | |
| 44. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| 45. | 8T-4138M | [6] | BOLT(M6X1X20-MM) | |
| 46. | 8T-4908M | [12] | BOLT(M8X1.25X25-MM) | |
| 47. | 9X-8256 | [6] | WASHER(6.6X12X2-MM THK) | |
| B | USE AS REQUIRED | |||
| M | METRIC PART | |||
