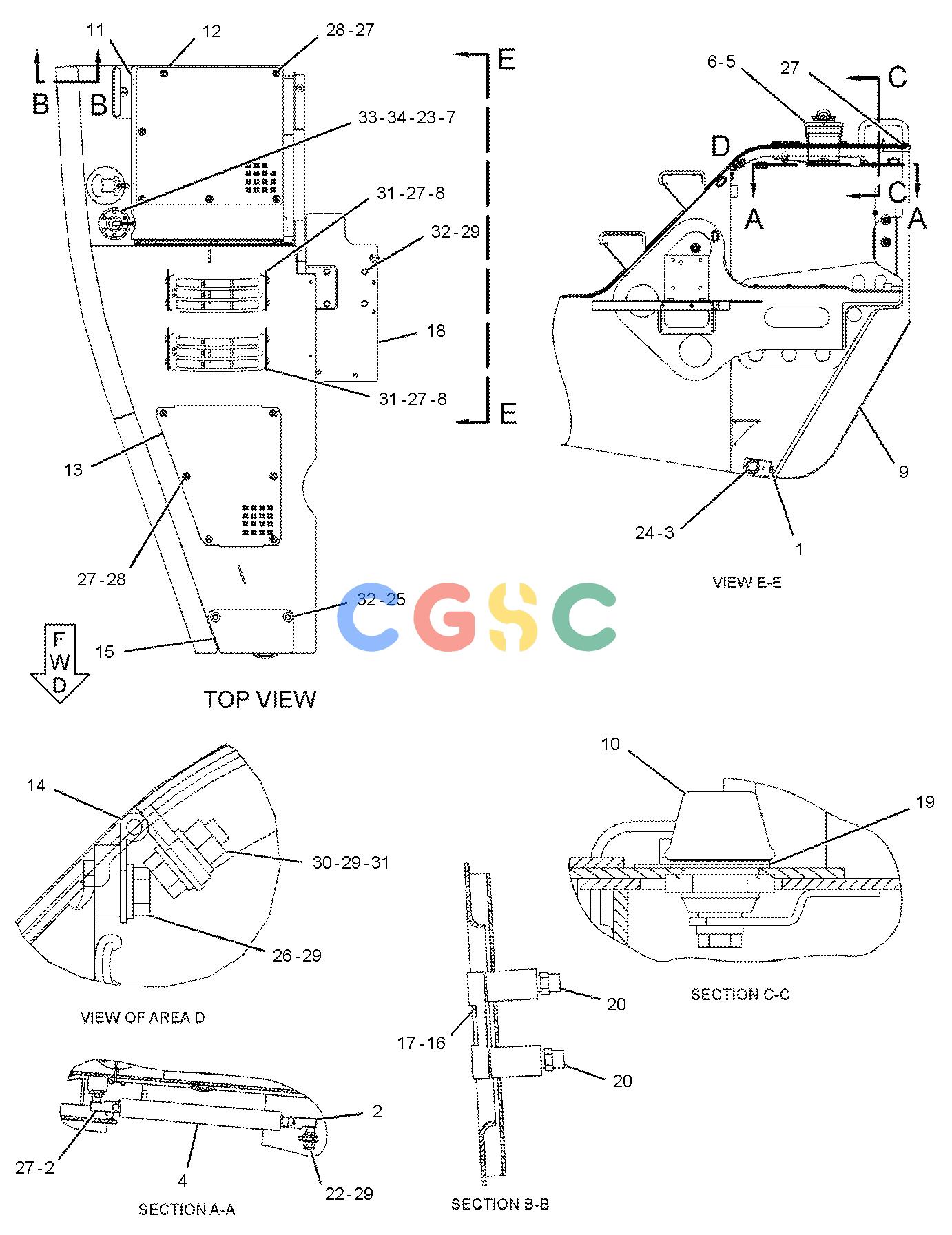

卡特零件查询（735） 185-1747: TANK GP-FUEL
广数供应链运营团队, 15 02月, 2025，浏览：
849 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1H-8306 | [1] | SCREW-PURGE(1/2-20X1.625-IN) | |
| 2. | 2U-5283 | [2] | ROD END | |
| 3. | 5P-4484 | [1] | PLUG-MAGNETIC(FUEL TANK) | |
| 4. | 5U-6733 | [1] | STRUT | |
| 5. | 7X-7700 | [1] | CAP AS-FUEL(LOCKABLE, VENTED) | |
| | 9X-2205 | [1] | KIT-CAP FILTER(FUEL TANK) | |
| | | | (INCLUDES FILTER AS, SCREWS, GASKETS & VALVE) |
| | 9X-8600 | [1] | SEAL-O-RING | |
| 6. | 9P-7121 | [1] | STRAINER-FUEL(FUEL TANK)(FAST FILL) | |
| 7. | 157-8859 | [1] | SENDER AS-FUEL LEVEL | |
| | 6C-3060 | [1] | GASKET | |
| | 317-9182 | [1] | KIT-DIAL SENSOR | |
| | | | (INCLUDES SENSOR AS, SCREWS, RECEPTACLE KIT & CONNECTOR PINS) |
| 8. | 171-1590 | [1] | KIT-TETHER(FUEL CAP) | |
| 9. | 331-1663 | [1] | TANK AS-FUEL | |
| 10. | 187-6156 | [1] | LATCH AS | |
| 11. | 191-2206 | [1] | COVER AS | |
| | 8T-3490M | [6] | NUT-WELD(M10X1.5-THD) | |
| 12. | 191-2214 | [1] | PLATE-TREAD | |
| 13. | 191-2215 | [1] | PLATE-TREAD | |
| 14. | 191-8104 | [1] | HINGE AS | |
| 15. | 192-6998 | [1] | PLATE | |
| 16. | 192-7619 | [1] | GAUGE AS-SIGHT(STEERING OIL) | |
| | 150-2952B | [2] | ADAPTER | |
| | 173-5549B | [4] | SEAL-O-RING | |
| 17. | 193-0249 | [1] | PLATE(LIQUID LEVEL) | |
| 18. | 193-5676 | [1] | SHIELD AS | |
| | 7T-1099 | [1] | LINK | |
| | 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | |
| 19. | 201-1379B | [2] | SHIM(1-MM THK) | |
| 20. | 148-8326 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-9872 | [1] | CONNECTOR | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 22. | 2F-8616 | [1] | NUT-SELF LOCKING(3/8-24-THD) | |
| 23. | 6C-3060 | [1] | GASKET | |
| 24. | 7M-8485 | [1] | SEAL-O-RING | |
| 25. | 7X-0578 | [2] | WASHER-HARD(10.2X32X2.5-MM THK) | |
| 26. | 7X-2621M | [5] | BOLT(M10X1.5X12-MM) | |
| 27. | 7X-7729 | [13] | WASHER(11X25X3-MM THK) | |
| 28. | 8C-8585M | [12] | SCREW-BUTTON HEAD(M10X1.5X20-MM) | |
| 29. | 8T-4121 | [23] | WASHER-HARD(11X21X2.5-MM THK) | |
| 30. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 31. | 8T-4136M | [6] | BOLT(M10X1.5X25-MM) | |
| 32. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| 33. | 8T-4138M | [6] | BOLT(M6X1X20-MM) | |
| 34. | 9X-8256 | [6] | WASHER(6.6X12X2-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
