神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-28[00]) - GRIP ASSY (YN03M01870F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
706 次

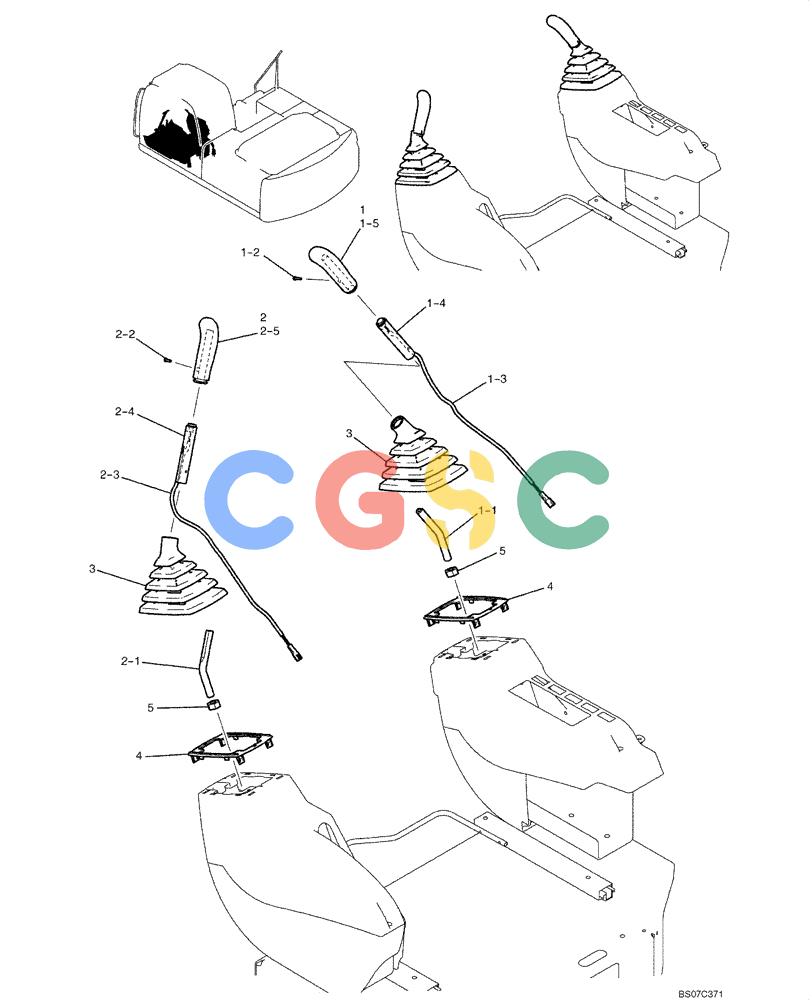

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN03M01861F1 | [1] | HANDLE GRIP | SM Superseded by part number: YN03M02021F2 |
| 1-1. | YN03M01864P1 | [1] | LEVER | KOB |
| 1-2. | ZS31C04016 | [1] | SCREW,Phillips Drive, Pan HD, M4 x 16mm | KOBM04x0.7x16mm |
| 1-3. | YN50E00017P1 | [1] | SWITCH ASSY | KOBHorn Right Handle Grip |
| 1-4. | YN03M01866P1 | [1] | CASE | KOB |
| 1-5. | YN03M01863P1 | [1] | GRIP | KOB |
| 2. | YN03M01862F1 | [1] | HANDLE GRIP | SM Superseded by part number: YN03M02687F1 |
| 2-1. | YN03M01865P1 | [1] | LEVER | KOB |
| 2-2. | ZS31C04016 | [1] | SCREW,Phillips Drive, Pan HD, M4 x 16mm | KOBM04x0.7x16mm |
| 2-3. | YN50E00017P1 | [1] | SWITCH ASSY | KOBHorn Left Handle Grip |
| 2-4. | YN03M01866P1 | [1] | CASE | KOB |
| 2-5. | YN03M01867P1 | [1] | GRIP | KOB Superseded by part number: YN03M02618P1 |
| 3. | YN03M01498P1 | [2] | BELLOWS | SM |
| 4. | YN03M01328P2 | [2] | PLATE | KOB |
| 5. | ZN18C14011 | [2] | NUT | KOBM14x2.0mm |
