卡特零件查询（735） 246-0846: AIR CONDITIONER GP
广数供应链运营团队, 15 02月, 2025，浏览：
526 次

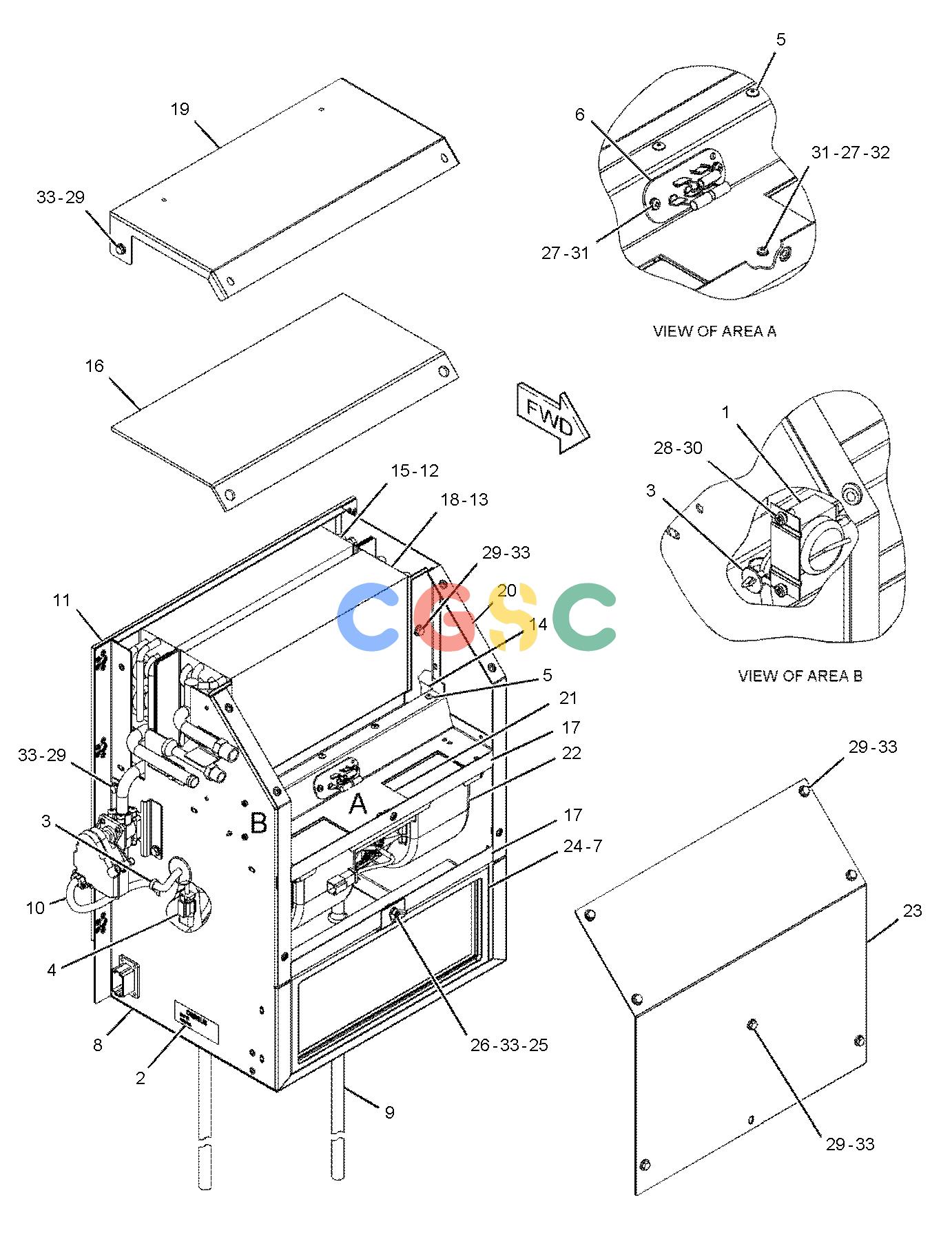

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3E-0400 | [2] | WHEEL AS-BLOWER | |
| | | | (EACH INCLUDES) |
| | 037-4838 | [1] | CLAMP | |
| 2. | 3E-5464 | [1] | SWITCH AS-THERMOSTAT(HVAC) | |
| 3. | 3S-2093 | [3] | STRAP-CABLE | |
| 4. | 3T-2511 | [2] | TUBE | |
| 5. | 6T-6708 | [2] | WASHER(7X28.6X4.1-MM THK) | |
| 6. | 8C-3756 | [1] | FILM-IDENTIFICATION(AIR CONDITIONER) | |
| 7. | 8C-4586 | [2] | CLAMP | |
| 8. | 8P-5141 | [2] | PLATE-ORIFICE | |
| 10. | 9X-2185 | [4] | SCREW(8-15X0.44-IN) | |
| 11. | 9X-2488 | [2] | CLAMP-HOSE | |
| 12. | 037-4838 | [2] | CLAMP | |
| 13. | 102-0340 | [1] | COVER | |
| 14. | 125-9740 | [1] | RESISTOR | |
| 15. | 131-2639 | [4] | WASHER(3.2X9X0.5-MM THK) | |
| 16. | 141-9784M | [1] | BOLT(M6X1X190-MM) | |
| 17. | 157-2482 | [1] | CASE AS | |
| 18. | | [1] | COVER AS |
| 19. | | [1] | COVER AS |
| 20. | | [1] | HOUSING AS |
| 21. | | [1] | COVER |
| 22. | | [1] | GASKET |
| 23. | | [1] | PLATE |
| 24. | | [1] | GASKET |
| 25. | | [1] | GASKET |
| 26. | | [1] | GASKET |
| 27. | | [2] | GASKET |
| 28. | 157-2501 | [1] | PAN-DRAIN | |
| 29. | | [1] | BRACKET |
| 30. | | [1] | PLATE AS |
| 31. | | [1] | GASKET |
| 32. | | [1] | GASKET |
| 33. | | [1] | COIL AS-HEATER |
| 34. | 157-2523 | [1] | COIL AS-EVAPORATOR | |
| 35. | 316-1927 | [1] | MOTOR AS-BLOWER(24-VOLT, A/C, HEATER) | |
| | 9W-0852 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 36. | 174-8145 | [1] | FILTER ELEMENT-CAB AIR(AIR CONDITIONER) | |
| 37. | 180-9562 | [2] | LATCH AS | |
| 38. | 239-9368 | [1] | RESISTOR AS | |
| 39. | 241-5670 | [1] | VALVE AS-WATER(HEATER) | |
| 40. | 241-7691 | [1] | HARNESS AS-HEATER & AIR COND(POWER) | |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 100-6674 | [3] | SEAL-CONNECTOR | |
| 41. | 246-7280 | [1] | HARNESS AS-HEATER & AIR COND(WATER IN, WATER OUT) | |
| | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| | 6V-9632M | [2] | NUT-WELD(M6X1-THD) | |
| | 9P-2300 | [1] | GROMMET | |
| | 6T-6506 | [6] | TERMINAL-BLADE(14-GA TO 18-GA) | |
| | 8T-8729 | [7] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0852 | [3] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 155-2270 | [2] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [2] | PLUG-SEAL | |
| | 103-8134 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | | [4] | FLANGE |
| | 9W-0844 | [3] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 3S-2093 | [1] | STRAP-CABLE | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(20-CM) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(5-CM) | |
| | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 42. | 247-8272 | [2] | GASKET | |
| 43. | 247-8274 | [1] | GASKET | |
| 44. | 247-8275 | [1] | GASKET | |
| 45. | 247-8276 | [1] | PLATE AS | |
| 46. | 247-8302 | [10] | RIVET | |
| 47. | 033-7291 | [2] | RIVET | |
| 48. | 129-3178M | [12] | LOCKNUT(M6X1-THD) | |
| 49. | 247-8273 | [1] | GASKET | |
| 50. | 5C-9553M | [35] | BOLT(M6X1X16-MM) | |
| 51. | 6V-1668 | [2] | WASHER(6.5X29.1X3-MM THK) | |
| 52. | 6V-7728M | [1] | BOLT(M6X1X45-MM) | |
| 53. | 6V-9671M | [4] | SCREW-MACHINE(M3X0.5X12-MM) | |
| 54. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 55. | 8T-4205 | [48] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 56. | 136-1953E | | HOSE(14-CM) | |
| 57. | 6V-2496D | | SEAL(0.5-M) | |
| 57A. | 6V-2496D | | SEAL(0.15-M) | |
| 57B. | 6V-2496D | | SEAL(0.4-M EACH) | |
| 57C. | 6V-2496D | | SEAL(0.25-M EACH) | |
| 58. | 5P-5908D | | SEAL(0.2-M) | |
| 59. | 5P-5672D | | SEAL(0.4-M) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
