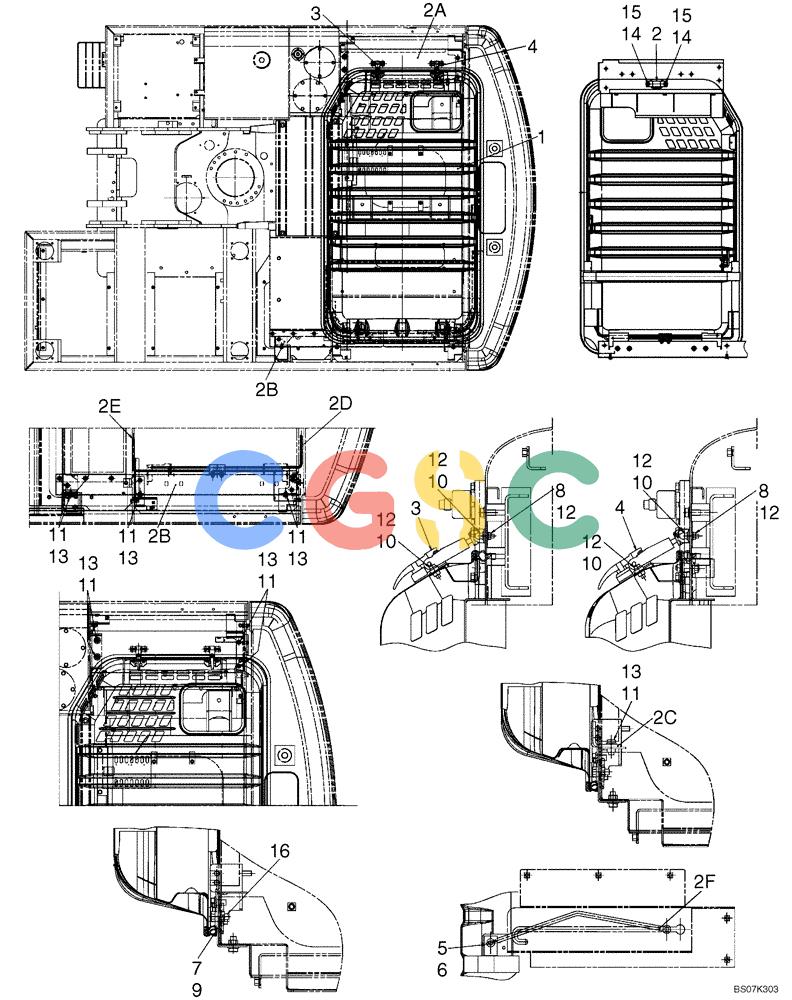

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-52-01[00]) - GUARD INSTALLATION, (TOP COVER) (YM21C00007F1), FIGURE 1 OF 2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
823 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YB22C01059F1 | [1] | COVER | KOBTop Cover Assembly, See Figure 02-52-02 |
| 2. | 71503574 | [1] | Kit, Engine Hood Installation -- Incls. Refs. 2A-2G, Not Shown | |
| 2A. | YB21C01290P1 | [1] | GUARD | KOBGuard |
| 2B. | YM21C01240P1 | [1] | BEAM | KOBBeam |
| 2C. | YN21C01716P1 | [1] | PLATE | KOBNo longer included in kit, Purchase separately |
| 2D. | YB21C01228P1 | [1] | SPRING | KOBSpring Superseded by part number: 87361700 |
| 2E. | YB21C01229P1 | [1] | SPRING | KOBSpring Superseded by part number: 87361702 |
| 2F. | YB21C01230P1 | [1] | STAY | KOBStay Assembly |
| 2G. | YN21C03238P1 | [1] | PLATE | KOB |
| 3. | LC21C01811P2 | [1] | LATCH | SM(Supplied with Key); Replacement keys are not available |
| 4. | LC21C01812P2 | [1] | HANDLE | SM(Non-locking) Superseded by part number: LC21C01811P2 |
| 5. | 2419R9D6 | [1] | PIN | KOBSnap -- OD 16mm x 43.8mm Long |
| 6. | ZW16P16000 | [1] | WASHER | KOBID 17 x OD 30 x Th 3.0mm |
| 7. | 2418T10357 | [4] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 8. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm |
| 9. | ZN18C12010 | [4] | NUT | KOBM12x1.75mm |
| 10. | ZS18C08025 | [8] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 11. | ZM73C12025 | [12] | BOLT,M12x25mm - Course Thread | KOBM12x1.75x25mm (Incls. Washer) -- Replaces ZS18C12025, M12x1.75x25mm |
| 12. | ZW16H08000 | [12] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 13. | ZW16H12000 | [12] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 14. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
| 15. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 16. | YN21C03749P1 | [2] | SHIM | KOB(1.6) |
