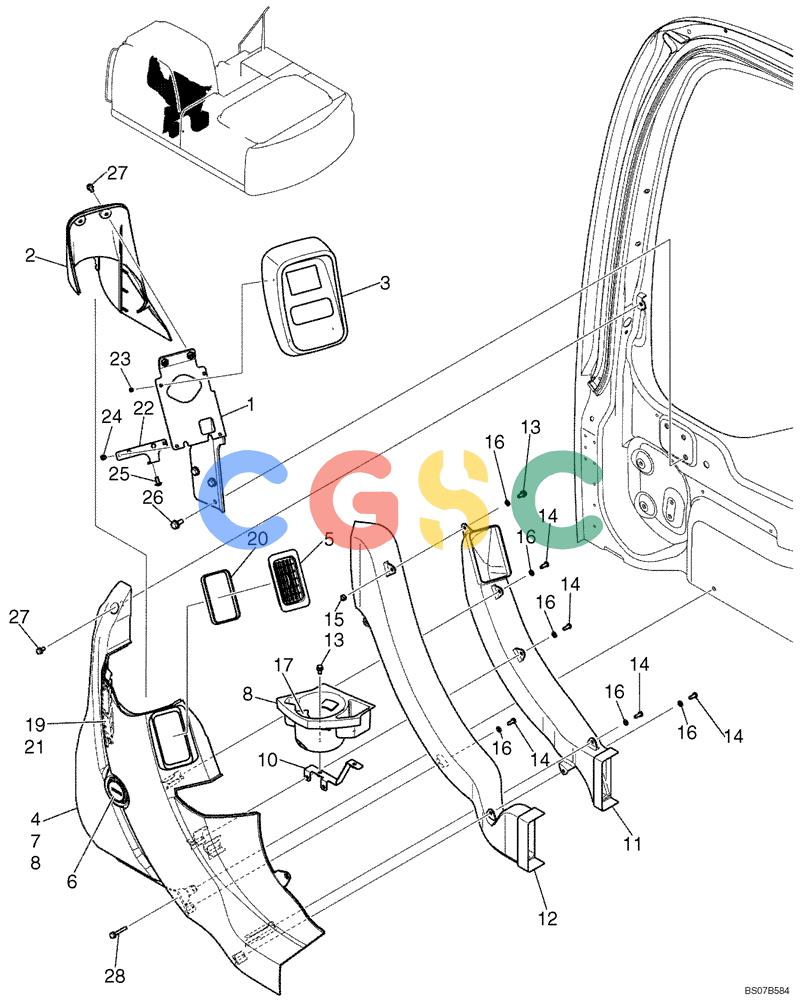

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-62[00]) - INSTRUMENT PANEL ASSEMBLY N&B (YN17M00063F1 & YN17M00056F1) PAGE 1 OF 3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
197 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN17M01197P2 | [1] | BRACKET | SM |
| 2. | YN17M01310F1 | [1] | GUARD | SM |
| 3. | YN59S00021F2 | [1] | GAUGE | KOBSee Figure 02-62-00 Superseded by part number: YN59S00021F3 |
| 4. | YN17M01317F1 | [1] | GUARD | SMIncls. Refs. 5 - 7 |
| 5. | YN20M01220P1 | [1] | VENT | KOB |
| 6. | YT58S00006P1 | [1] | HOURMETER | KOBHour |
| 7. | YN17M01286F1 | [1] | COVER ASSY | KOBIncls. Refs. 8 - 17 |
| 8. | YN17M01308F1 | [1] | COVER ASSY | KOB |
| 9. | YN17M01306F1 | [1] | COVER ASSY | KOBIncls. Refs. 18 - 21 Superseded by part number: YN17M01422F1 |
| 10. | YN17M01271P1 | [1] | BRACKET | SM |
| 11. | YN20M01622F1 | [1] | DUCT | SM |
| 12. | YN20M01625F1 | [1] | DUCT | SM |
| 13. | YN17M01255P1 | [3] | BOLT | SMM06x1.0x15mm (Incls. Washer & Lockwasher) Superseded by part number: ZM66C06016 |
| 14. | YN17M01264P1 | [7] | SCREW | SMM06x15mm Self-Taper |
| 15. | YN17M01281P1 | [1] | NUT | SMM06x1.0mm Superseded by part number: ZN18C06005 |
| 16. | YN17M01266P1 | [8] | WASHER | SMID 06.4 x OD 11.5 x Th 1.6mm |
| 17. | YN17M01309P1 | [3] | RUBBER BAND | KOB Superseded by part number: YN17M01308F1 |
| 18. | YN17M01185P1 | [1] | COVER | KOB |
| 19. | YN20M01619P1 | [1] | GRILLE | KOB |
| 20. | YN20M01620P1 | [1] | FOAM INSULATION | KOB8x15x325mm Long (12-25/32 in) |
| 21. | YN20M01621P1 | [1] | FOAM INSULATION | KOB8x15x715mm Long (28-9/64 in) |
| 22. | YN17M01319P1 | [1] | BRACKET | SM |
| 23. | ZM61C05012 | [2] | BOLT | KOBM05x0.8x12mm (Incls. Washer & Lockwasher) |
| 24. | ZM61C05016 | [2] | BOLT | KOBM05x0.8x16mm (Incls. Washer & Lockwasher) |
| 25. | YN17M01320P1 | [1] | SCREW,Phillips Drive, Truss HD, M6 x 1 x 15mm | SMM06x1.0x15mm |
| 26. | ZM73C08020 | [3] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| 27. | ZM66C06016 | [2] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 28. | ZM66C06045 | [1] | BOLT | KOBM06x1.0x45mm (Incls. Washer & Lockwasher) |
