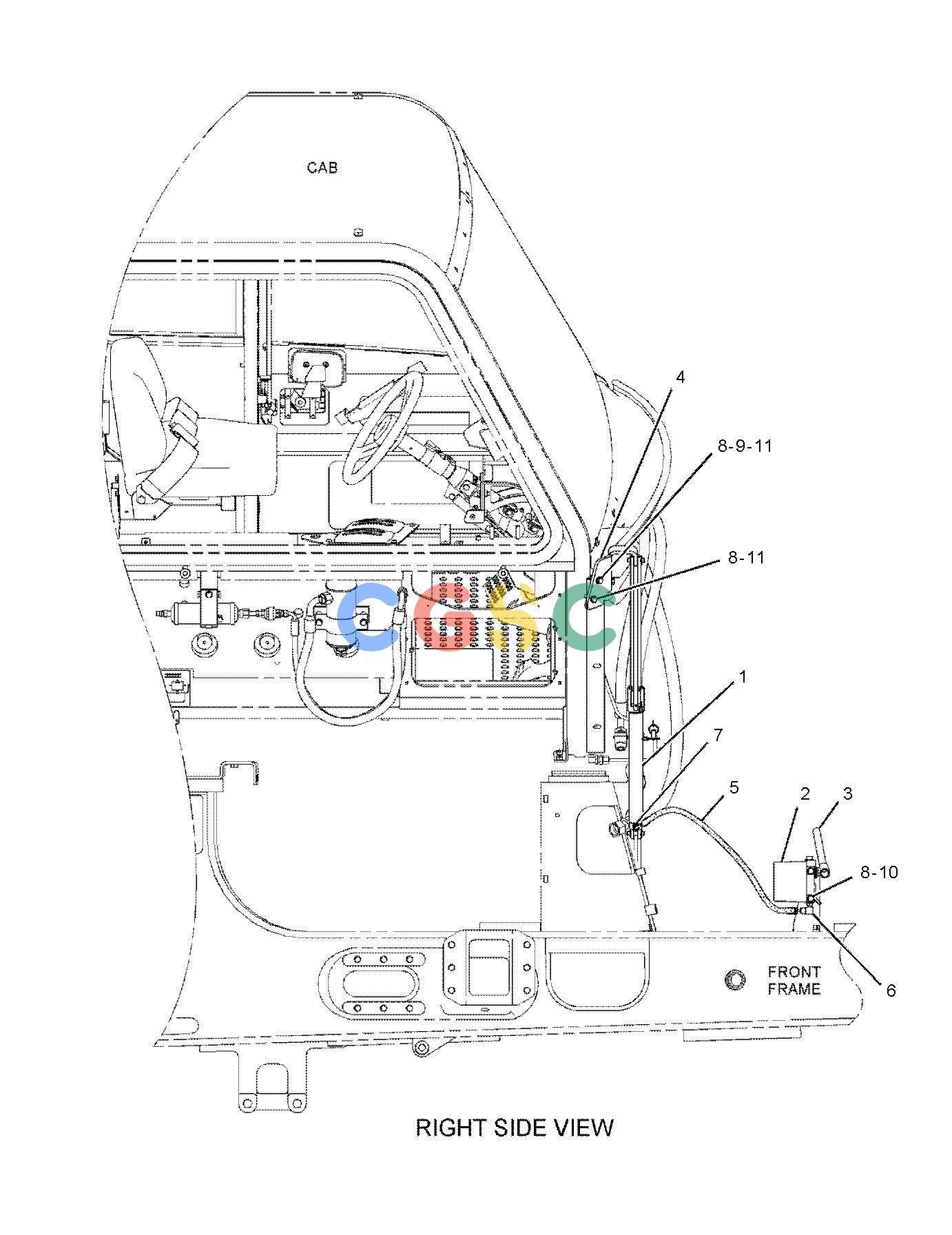

卡特零件查询（735） 152-7117: TILT GP-PLATFORM
广数供应链运营团队, 15 02月, 2025，浏览：
918 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 183-3513Y | [1] | CYLINDER GP-CAB TILT | |
| 2. | 183-3514 | [1] | PUMP GP-CAB TILT | |
| 3. | 184-5858 | [1] | HANDLE | |
| 4. | 191-3490 | [1] | BRACKET AS | |
| 5. | 195-1206I | [1] | HOSE AS | |
| 6. | 123-8829 | [1] | ELBOW AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8T-7876 | [1] | SEAL-O-RING | |
| 7. | 4J-5477 | [1] | SEAL-O-RING | |
| 8. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 10. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 11. | 8T-4196M | [3] | BOLT(M10X1.5X35-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
