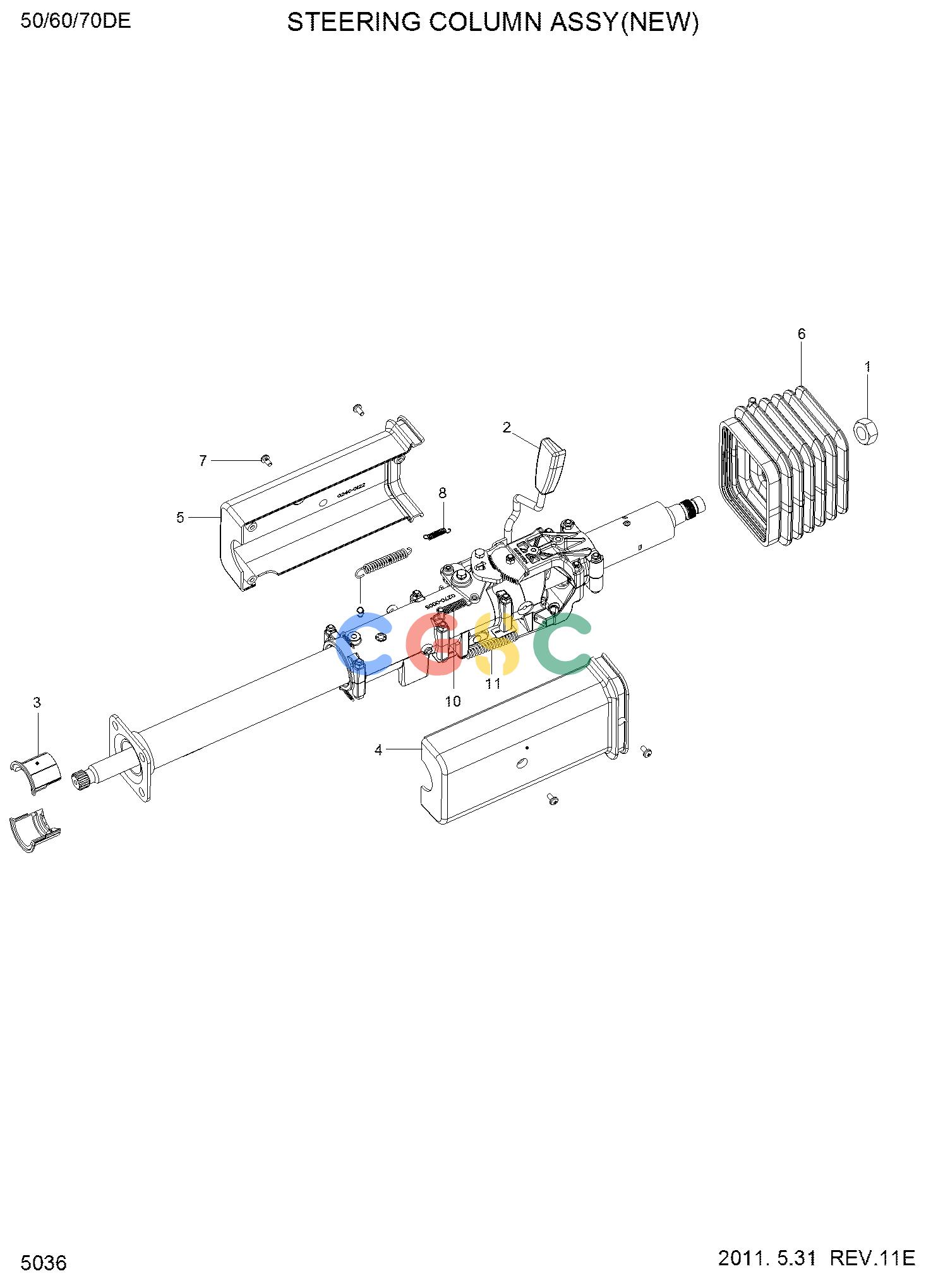

现代零件查询80D-7E(-#0507) STEERING COLUMN ASSY(NEW)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
153 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
71FT-25100
|
[1] |
STEERING COLUMN ASSY
|
|
| 1. |
ZTAC-00001
|
[1] |
NUT-UN15589
|
|
| 2. |
ZTAC-00002
|
[1] |
CONTROL LEVER
|
|
| 3. |
ZTAC-00003
|
[2] |
LOWER GUIDE
|
|
| 4. |
ZTAC-00004
|
[1] |
LEFT CARTER
|
|
| 5. |
ZTAC-00005
|
[1] |
RIGHT CARTER
|
|
| 6. |
ZTAC-00006
|
[1] |
BELLOWS IN RUBBER
|
|
| 7. |
ZTAC-00007
|
[4] |
TAPPING SCREW
|
|
| 8. |
ZTAC-00008
|
[1] |
COIL SPRING
|
|
| 9. |
ZTAC-00009
|
[1] |
COIL SPRING
|
|
| 10. |
ZTAC-00010
|
[1] |
COIL SPRING
|
|
| 11. |
ZTAC-00011
|
[1] |
COIL SPRING
|
|
