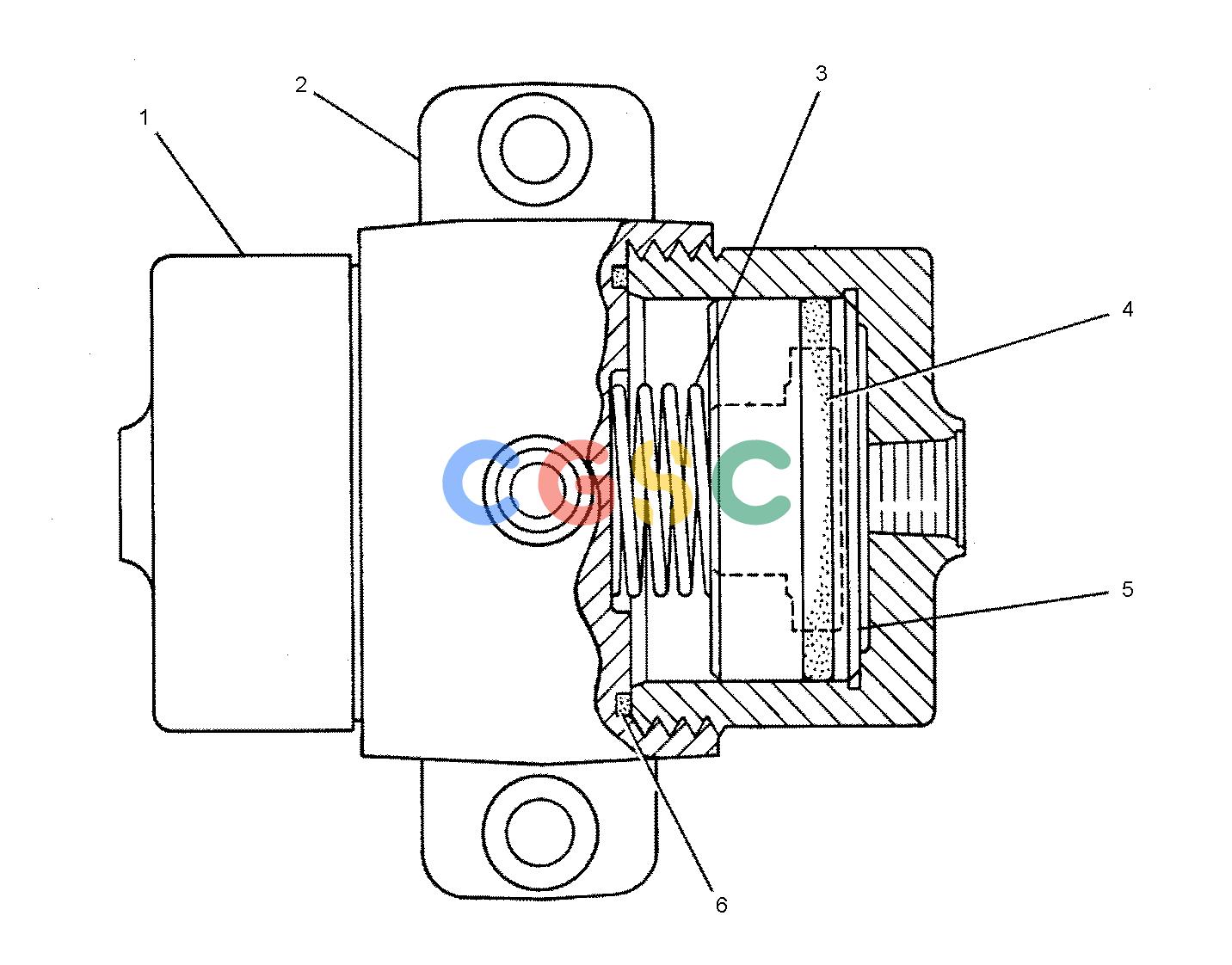

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 2G-8932 | [2] | HOUSING | |
| 2. | [1] | BASE | ||
| 3. | 2G-1202 | [2] | SPRING | |
| 4. | 7F-2122 | [2] | SEAL-O-RING | |
| 5. | 9V-3222JL | [2] | PISTON AS | |
| 6. | 2H-4145 | [2] | SEAL-O-RING | |
| AVAILABLE REPAIR KIT(S): | ||||
| 9V-3225L | [1] | KIT-PISTON | ||
| (INCLUDES PISTON AS, RING, RETAINING RING, SEALS & SPRINGS) | ||||
| 9C-0645J | [1] | KIT-PISTON | ||
| (INCLUDES PISTON & HOUSING) | ||||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| L | KIT MARKED L SERVICES PART(S) MARKED L | |||
