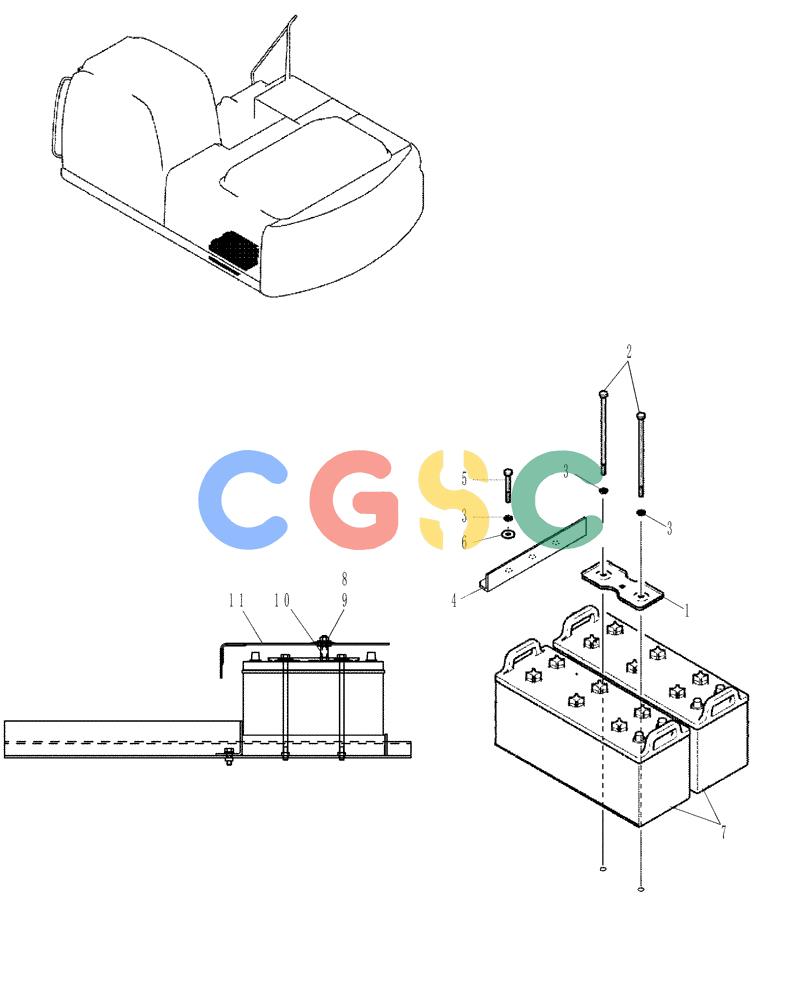

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-65[00]) - BATTERY INSTALLATION (YM72E00004F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
256 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2418P5535 | [1] | PLATE | KOB |
| 2. | R20T0084D17 | [2] | CAPSCREW | KOBSCREW M10x1.50x235mm |
| 3. | ZW26X10000 | [5] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 4. | YM72E01006P1 | [1] | BRACKET | KOB |
| 5. | ZS18C10030 | [3] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 6. | ZW16P10000 | [3] | WASHER | KOBID 10.5 x OD 21 x Th 2.0mm |
| 7. | 2411U18 | [2] | DRY BATTERY | KOBBattery, Purchase Locally |
| 8. | ZN18C10008 | [1] | NUT | KOB |
| 9. | 2418T12346 | [1] | WASHER | KOB |
| 10. | YN72E01032P1 | [1] | SPACER | KOB |
| 11. | YM72EU1003P1 | [1] | COVER | KOBCover |
