神钢零件查询(SK200LC-6) - DYNAMIC ACERA EXCAVATOR ASN YQ03501 (1/95-12/06) (01-051[01]) - COMPRESSOR ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1027 次

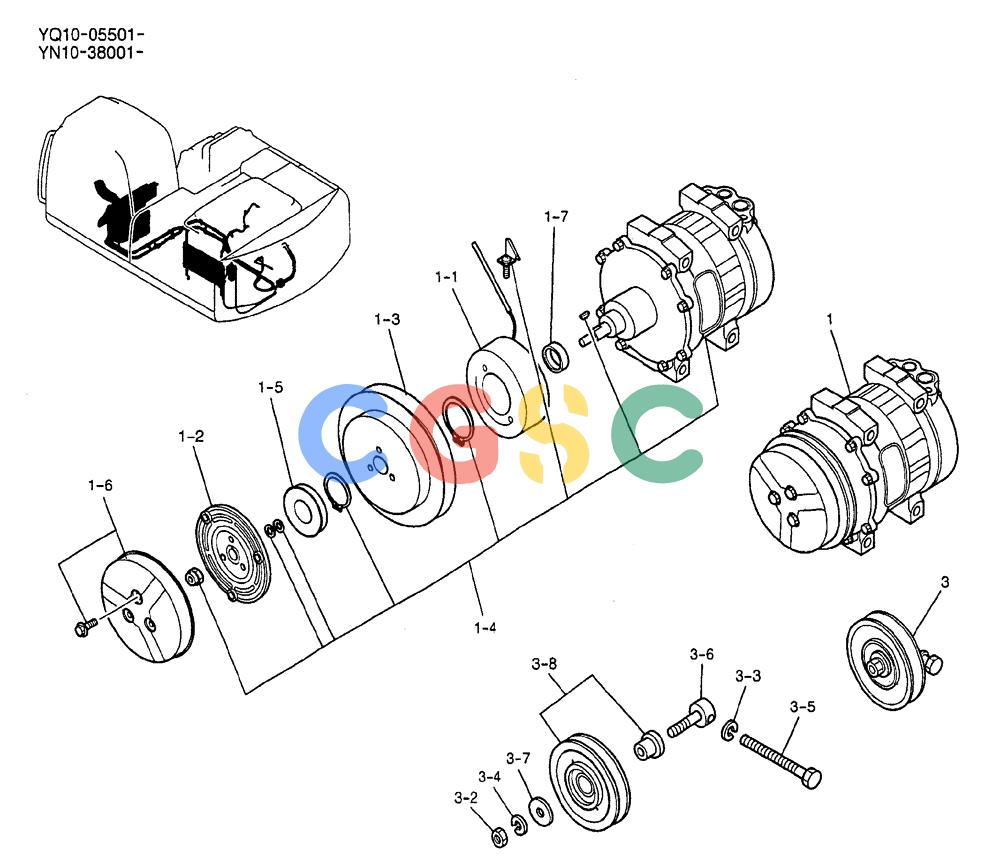

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LC91V00002F1 | [1] | COMPRESSOR | KOBASSY, AIR Superseded by part number: LC91V00002F3 |
| . . | LC91V00002F3R | [1] | REMAN-A/C COMPRESSOR,W/ Pulley | RACSK200-6 ASN YN30001, SK200LC-6 ASN YQ03501, SK290LC ASN LB03U0101, SK210LC ASN YQ07U0101, SK330LC ASN YC06U0101, All DYNAMIC ACERA EXCAVATOR , ED190LC BLADE RUNNER EXCAVATOR/DOZER BTW YL02U0101 - YL03U0135, All ASSY, AIR, Reman for New PN LC91V00002F1 |
| . . | LC91V00002F3C | [1] | CORE-A/C COMPRESSOR | RACReturn Number |
| 1. | LC91V00001F1 | [1] | AIRCOND. COMPRESSOR,W/ Pulley | KOBASSY, AIR |
| 1-1. | LC91V00001S002 | [1] | PLATE | KOBCORE |
| 1-2. | YN91V01001S002 | [1] | PLATE | KOB |
| 1-3. | YN91V01001S003 | [1] | ROTOR | KOB |
| 1-4. | LC91V00001S004 | [1] | ACCESSORIES | KOB |
| 1-5. | YN91V01001S005 | [1] | COVER | KOB |
| 1-6. | YN91V01001S006 | [1] | COVER | KOB |
| 1-7. | YN91V01001S007 | [1] | RING | KOBASSY |
| 3. | YX20M01029F2 | [1] | PULLEY ASSY. | KOB Superseded by part number: YX20M01029F4 |
| 3-2. | 24100U1176S25 | [1] | NUT | KOBM10 |
| 3-3. | 24100U1176S27 | [1] | LOCK WASHER | KOBM08 Superseded by part number: 83990583 |
| 3-4. | 24100U1176S26 | [1] | LOCK WASHER | KOBM10 Superseded by part number: ZW26X10000 |
| 3-5. | 24100U1176S18 | [1] | BOLT | KOB |
| 3-6. | YX20M01029S006 | [1] | SHAFT | KOB |
| 3-7. | 24100U1176S19 | [1] | STOP | KOB |
| 3-8. | LC20M01060P1 | [1] | PULLEY | KOBAir Compressor Tension, Superseded by part number: YX20M01029F4 |
