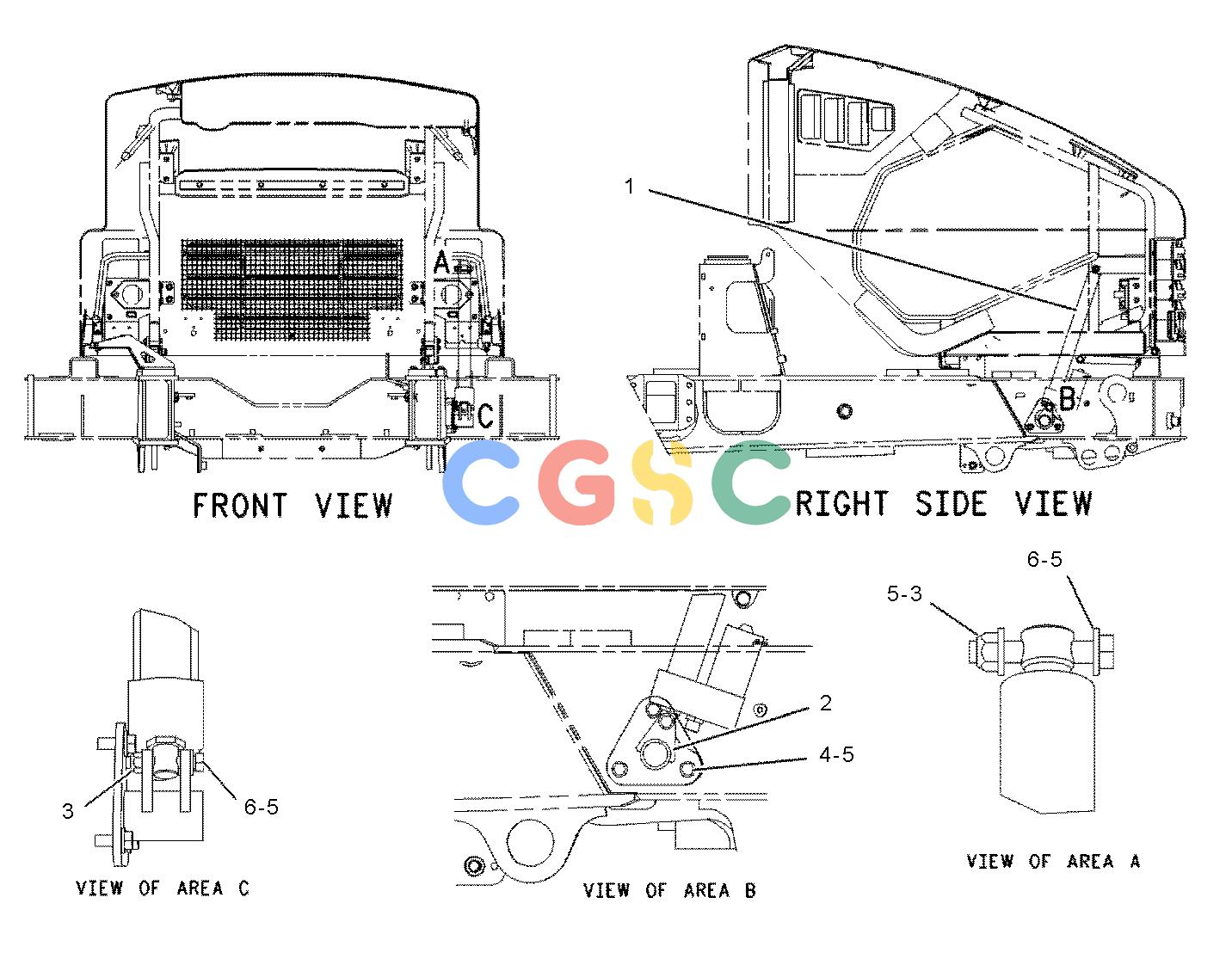

卡特零件查询（735） 152-7024: TILT GP-HOOD
广数供应链运营团队, 15 02月, 2025，浏览：
753 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 204-7016 | [1] | ACTUATOR GP-POWER(HOOD TILT) | |
| | 8N-1540 | [1] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 8N-1541 | [1] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 129-7163 | [1] | PLUG AS-CONNECTOR(1-PIN) | |
| | 129-7164 | [1] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| 2. | 206-7688 | [1] | BRACKET AS | |
| 3. | 6V-7687M | [2] | LOCKNUT(M12X1.75-THD) | |
| 4. | 8T-4139M | [3] | BOLT(M12X1.75X30-MM) | |
| 5. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 6. | 8T-4648M | [2] | BOLT(M12X1.75X70-MM) | |
| | M | | METRIC PART |
