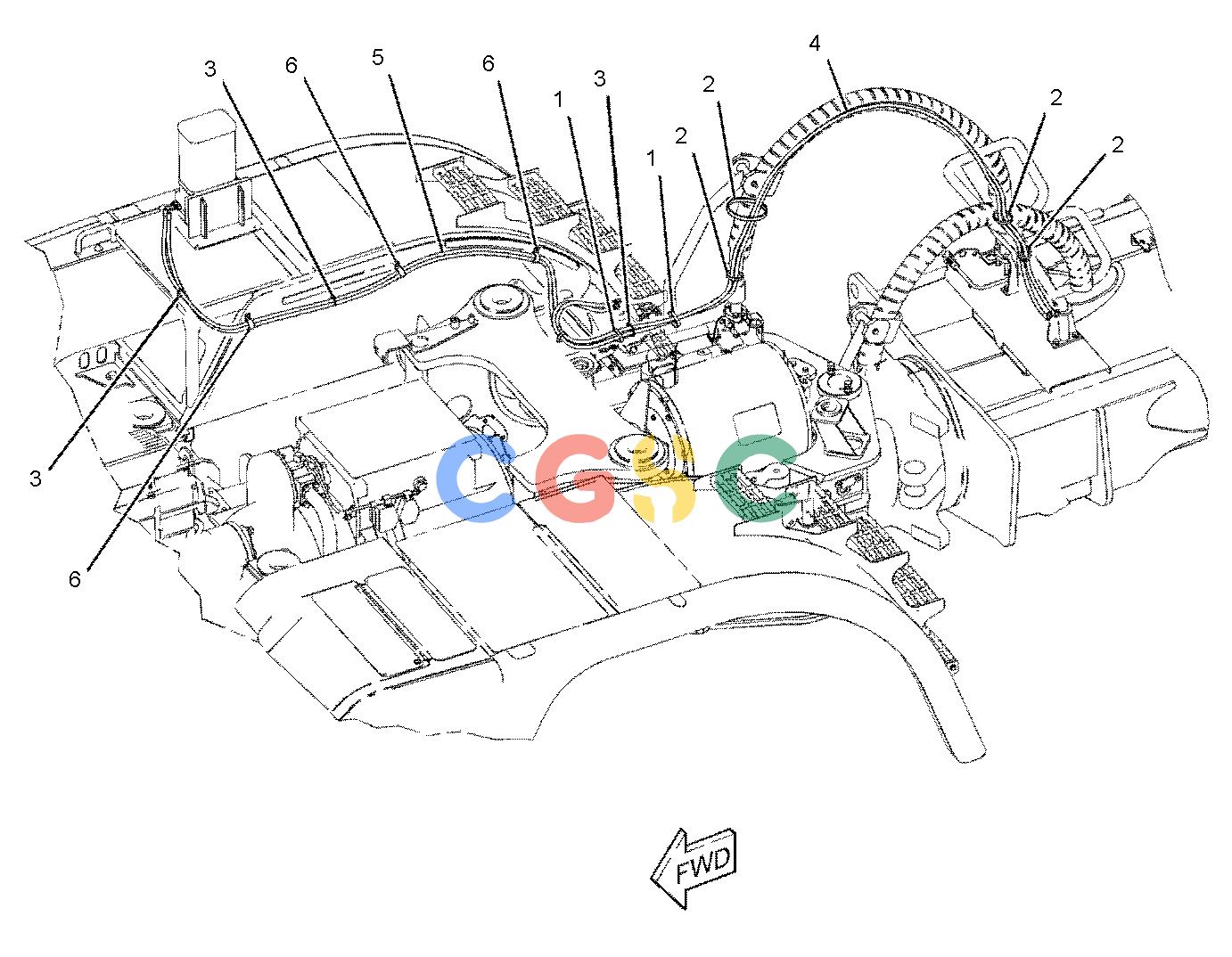

卡特零件查询（735） 254-6752: LINES GP-AUTOMATIC LUBRICATION
广数供应链运营团队, 15 02月, 2025，浏览：
520 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [18] | STRAP-CABLE | |
| 2. | 177-3463 | [7] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 277-3072M | [1] | NUT(M10X1-THD) | |
| | 277-3073 | [1] | FITTING-COMPRESSION | |
| 3. | 177-3464 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 277-3072M | [1] | NUT(M10X1-THD) | |
| | 277-3073 | [1] | FITTING-COMPRESSION | |
| 4. | 177-3475 | [2] | CONNECTOR(REDUCER) | |
| 5. | 254-6753Y | [1] | VALVE GP-LUBE DISTRIBUTION(12-INJECTOR) | |
| 6. | 268-1354 | [1] | BRACKET(LH) | |
| 7. | 268-1355 | [1] | BRACKET(RH) | |
| 8. | 3U-2752 | [1] | CLIP(LOOP) | |
| 9. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 10. | 5P-9085 | [4] | CLIP(LOOP) | |
| 11. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 13. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 14. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 15. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 16. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 17. | 6D-4244 | [1] | CLIP(LOOP) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
