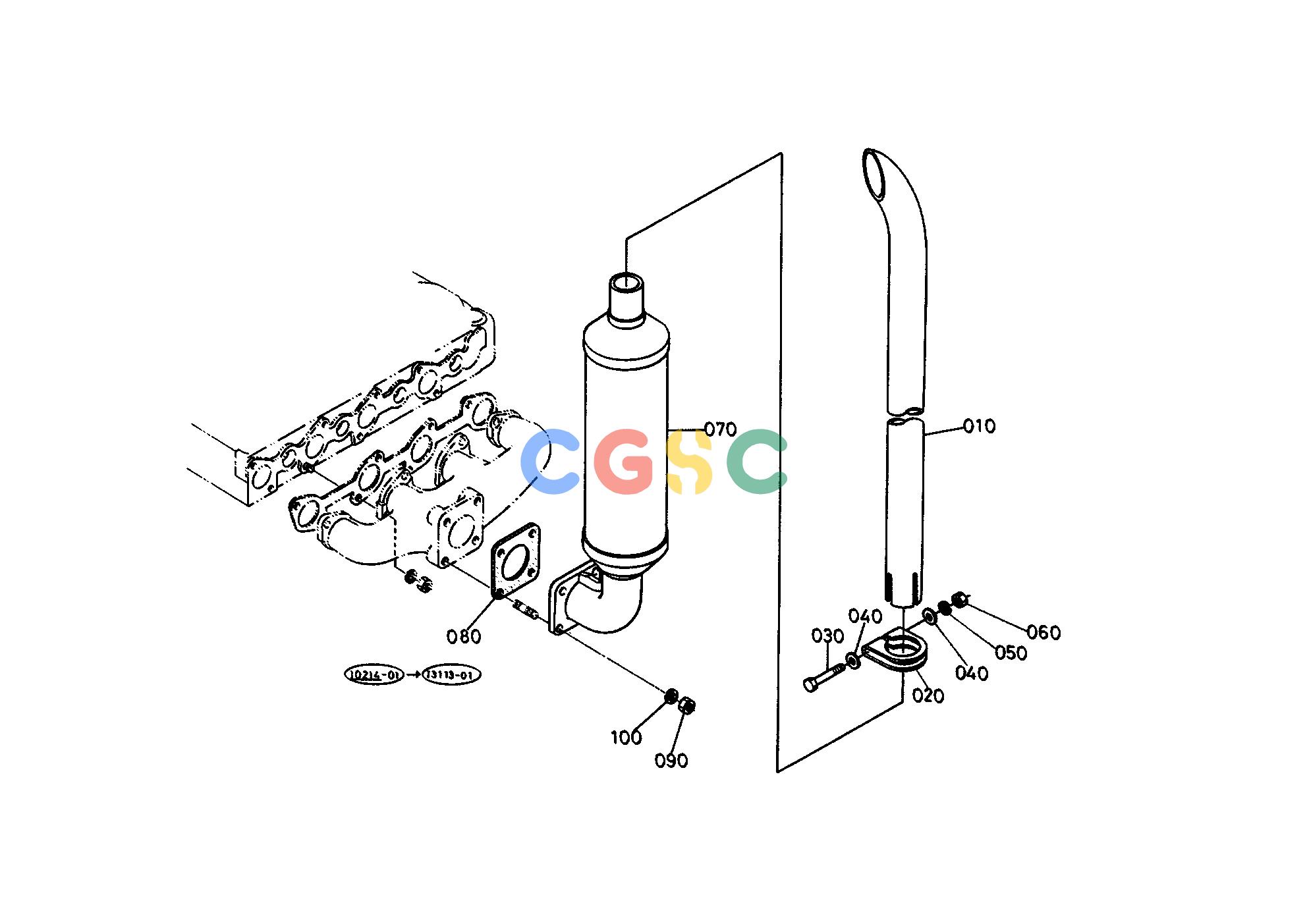

久保田零件查询T01501 MUFFLER [A CA AU] ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
436 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6780053410
|
[1] |
PIPE MUFFLER
|
1.2540(lbs); 0.570
|
| 020. |
6780053420
|
[1] |
BAND PIPE
|
0.0880(lbs); 0.040
|
| 030. |
0115350865
|
[1] |
BOLT
|
0.0550(lbs); 0.025
|
| 040. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 050. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 060. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 070. |
6636154510
|
[1] |
COMP.MUFFLER
|
0.0000(lbs); 0.000
|
| 070. |
6636154512
|
[1] |
COMP.MUFFLER
|
6.4240(lbs); 2.920
|
| 080. |
1537112370
|
[1] |
GASKET MUFFLER
|
0.0000(lbs); 0.000
|
| 090. |
0215650080
|
[4] |
NUT
|
0.0088(lbs); 0.004
|
| 100. |
0451250080
|
[4] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
