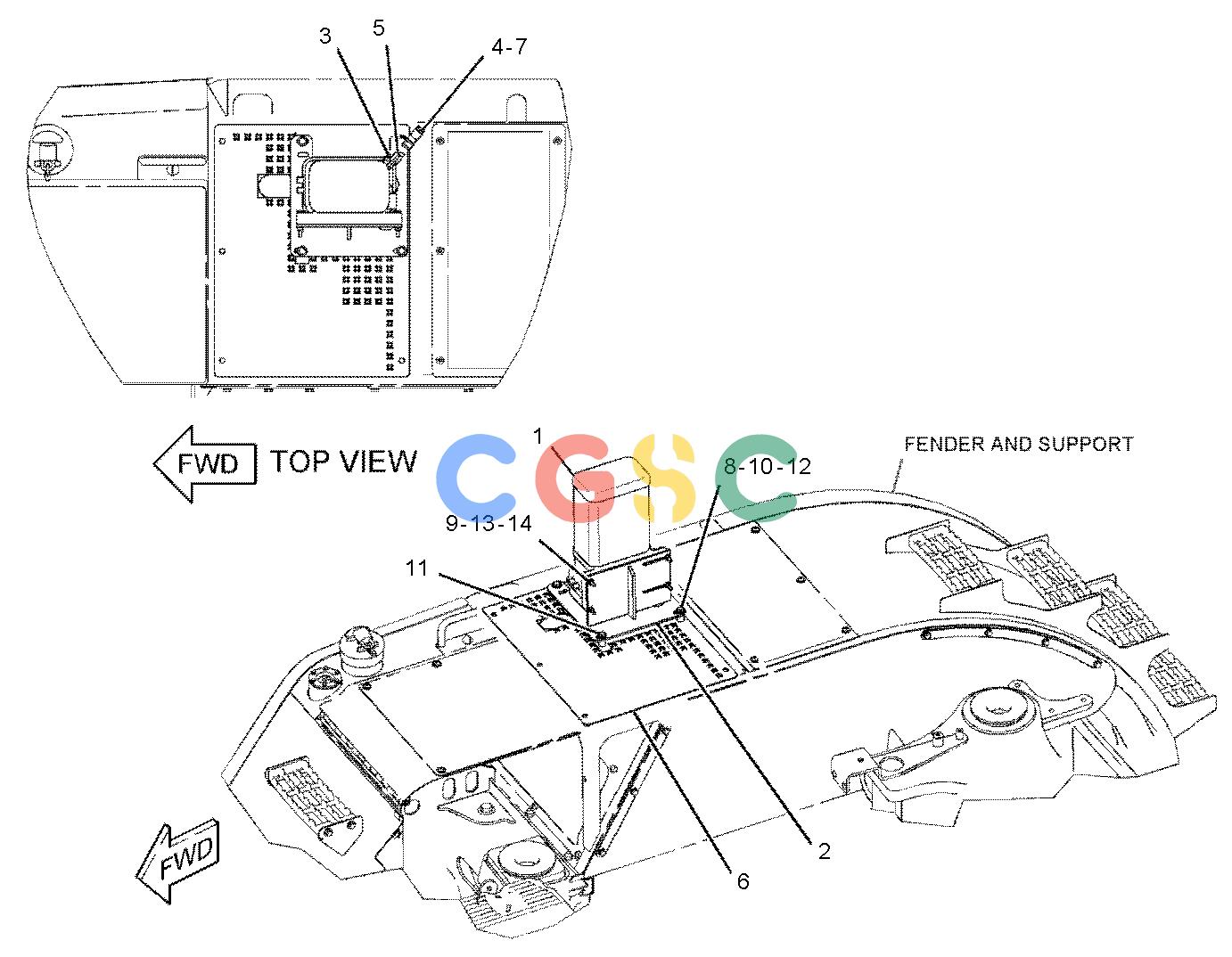

卡特零件查询（735） 255-3327: MOUNTING GP-TRUCK BODY
广数供应链运营团队, 15 02月, 2025，浏览：
951 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [14] | STRAP-CABLE | |
| 2. | 161-9030E | | HOSE(600-CM EACH) | |
| 2A. | 161-9030E | | HOSE(330-CM EACH) | |
| 3. | 177-3464 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 277-3072M | [1] | NUT(M10X1-THD) | |
| | 277-3073 | [1] | FITTING-COMPRESSION | |
| 4. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 5. | 252-9819 | [1] | TUBE(LH) | |
| 6. | 252-9820 | [1] | TUBE(RH) | |
| 7. | 263-1948 | [2] | TUBE AS | |
| 8. | 3U-2752 | [11] | CLIP(LOOP) | |
| 9. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 10. | 8M-2771 | [4] | CLIP | |
| 11. | 8T-4121 | [11] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4191M | [11] | BOLT(M10X1.5X16-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
