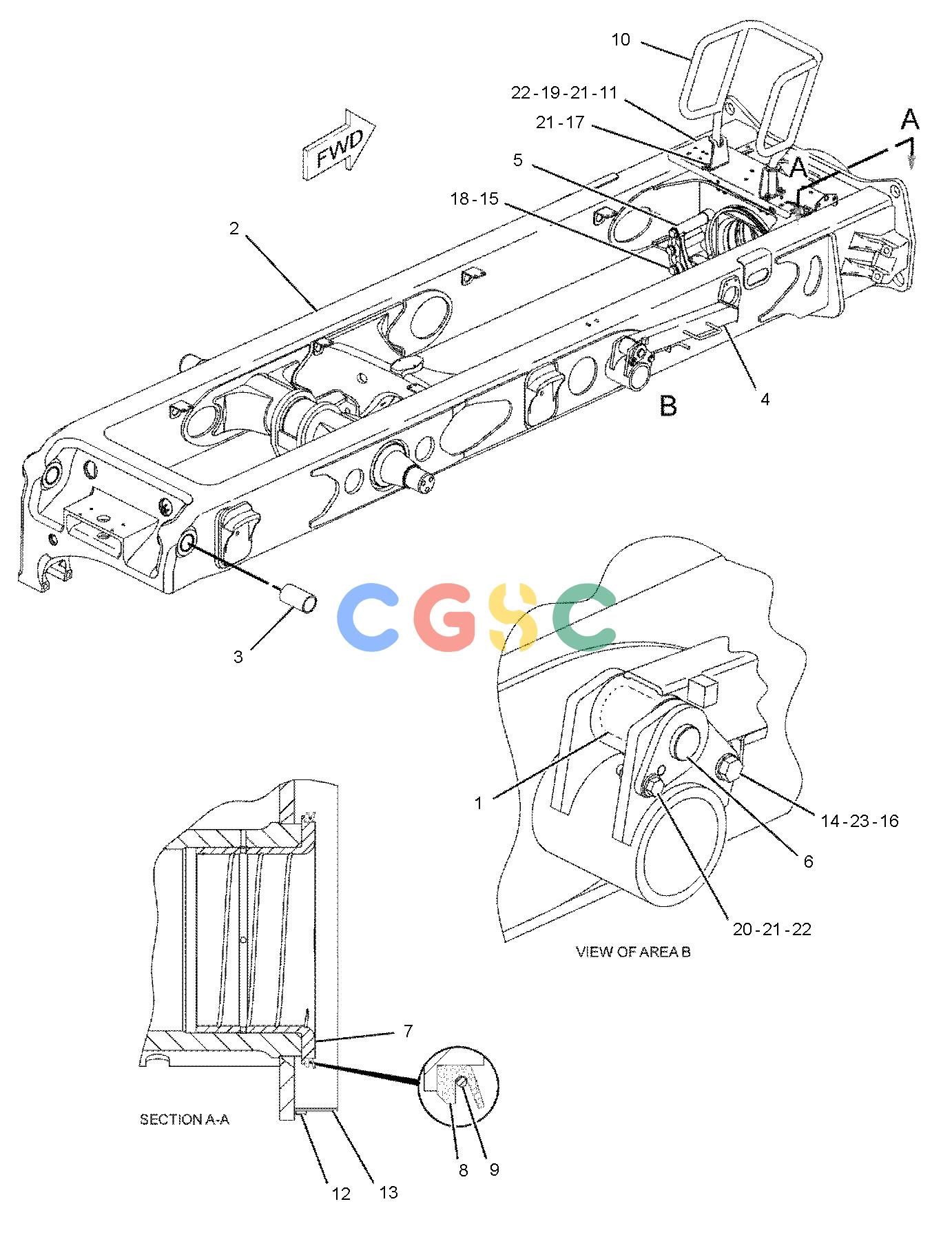

卡特零件查询（735） 152-7099: FENDER & SUPPORT GP
广数供应链运营团队, 15 02月, 2025，浏览：
387 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7W-6333 | [8] | SPACER(10.5X20X10.7-MM THK) | |
| 2. | 151-1676 | [12] | COLLAR | |
| 3. | 164-6811 | [1] | COVER-FENDER(RH) | |
| 4. | 164-9208 | [1] | COVER(FENDER, LH) | |
| 5. | 279-8779 | [1] | FENDER AS(RH) | |
| 6. | 279-8778 | [1] | FENDER AS(LH) | |
| 7. | 188-1956 | [1] | SUPPORT(RH) | |
| 8. | 188-1970 | [1] | SUPPORT(LH) | |
| 9. | 189-2045 | [1] | DEFLECTOR(RH) | |
| 10. | 189-2046 | [1] | DEFLECTOR(LH) | |
| 11. | 189-2047 | [1] | PLATE(RH) | |
| 12. | 189-2048 | [1] | PLATE(LH) | |
| 13. | 189-2050 | [2] | SHIELD-INNER | |
| 14. | 189-2290 | [2] | PLATE | |
| 15. | 7X-7729 | [8] | WASHER(11X25X3-MM THK) | |
| 16. | 190-0566 | [2] | PLATE-COVER | |
| 17. | 200-2159 | [2] | STRIP | |
| 18. | 206-5017 | [20] | SPACER(11X20X5-MM THK) | |
| 19. | 206-6819 | [4] | PLATE-LOCK | |
| 20. | 7X-2553M | [4] | BOLT(M16X2X40-MM) | |
| 21. | 8T-4121 | [56] | WASHER-HARD(11X21X2.5-MM THK) | |
| 22. | 8T-4137M | [12] | BOLT(M10X1.5X20-MM) | |
| 23. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 24. | 8T-4140M | [4] | BOLT(M16X2X60-MM) | |
| 25. | 8T-4176M | [6] | BOLT(M12X1.75X90-MM) | |
| 26. | 8T-4186M | [8] | BOLT(M10X1.5X40-MM) | |
| 27. | 8T-4196M | [3] | BOLT(M10X1.5X35-MM) | |
| 28. | 5P-1076 | [10] | WASHER-HARD(13.5X30X4-MM THK) | |
| 29. | 8T-4224 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| 30. | 8T-5005M | [17] | BOLT(M10X1.5X70-MM) | |
| 31. | 8T-6869M | [12] | BOLT(M8X1.25X60-MM) | |
| 32. | 9X-8257 | [8] | WASHER(17.5X30X3.5-MM THK) | |
| 33. | 8T-4136M | [24] | BOLT(M10X1.5X25-MM) | |
| 34. | 239-5015 | [10] | STEP | |
| | M | | METRIC PART |
