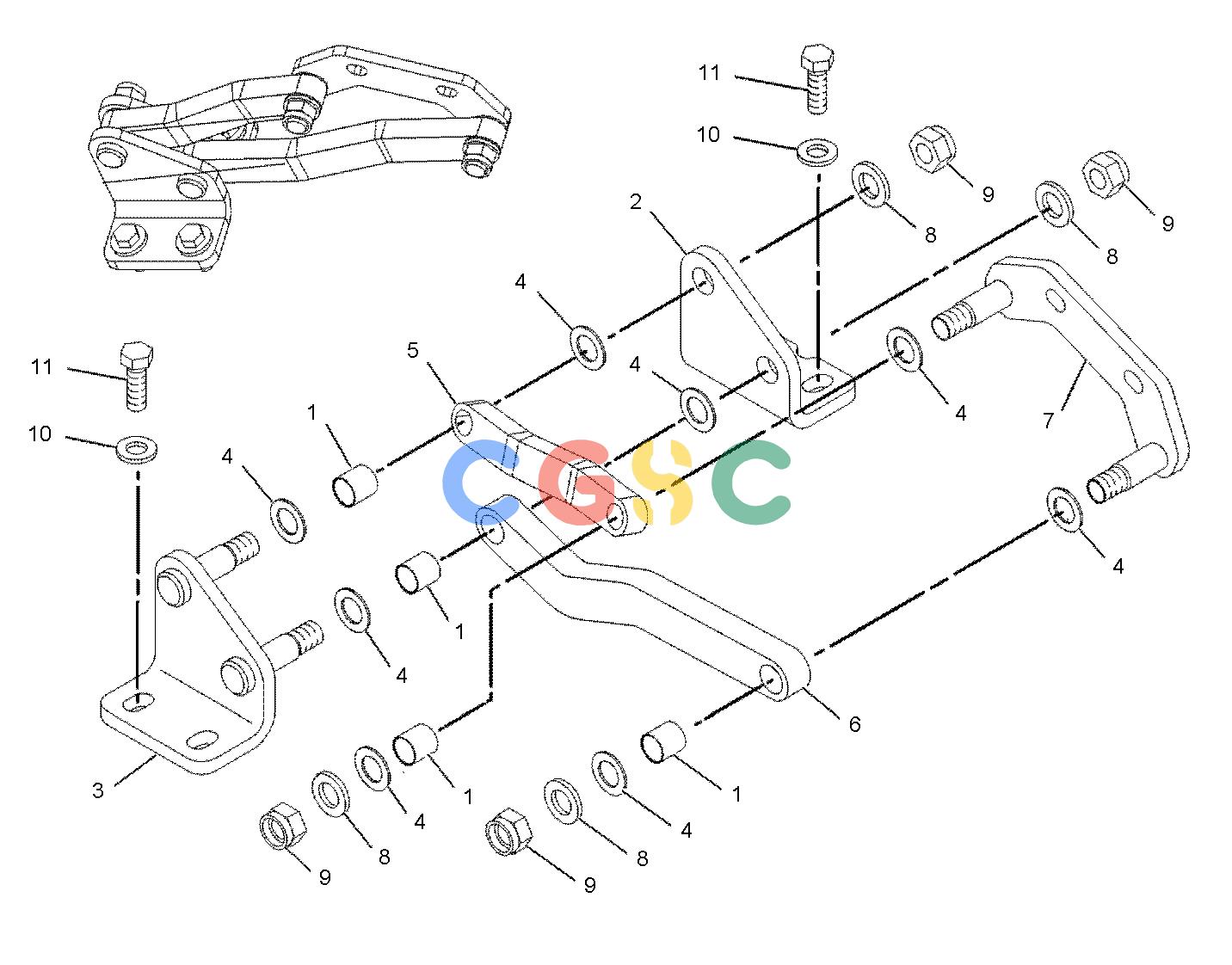

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 188-0432 | [4] | BEARING | |
| 2. | 188-0433 | [1] | PLATE | |
| 3. | 192-1180 | [1] | PLATE AS | |
| 4. | 192-1181 | [8] | WASHER-PLASTIC(18.1X30X1.5-MM THK) | |
| 5. | 207-4296 | [1] | LINK-FRONT | |
| 6. | 207-4297 | [1] | LINK-REAR | |
| 7. | 207-4715 | [1] | CONNECTOR AS | |
| 8. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| 9. | 176-5311M | [4] | LOCKNUT(M16X2-THD) | |
| 10. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 11. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| M | METRIC PART | |||
