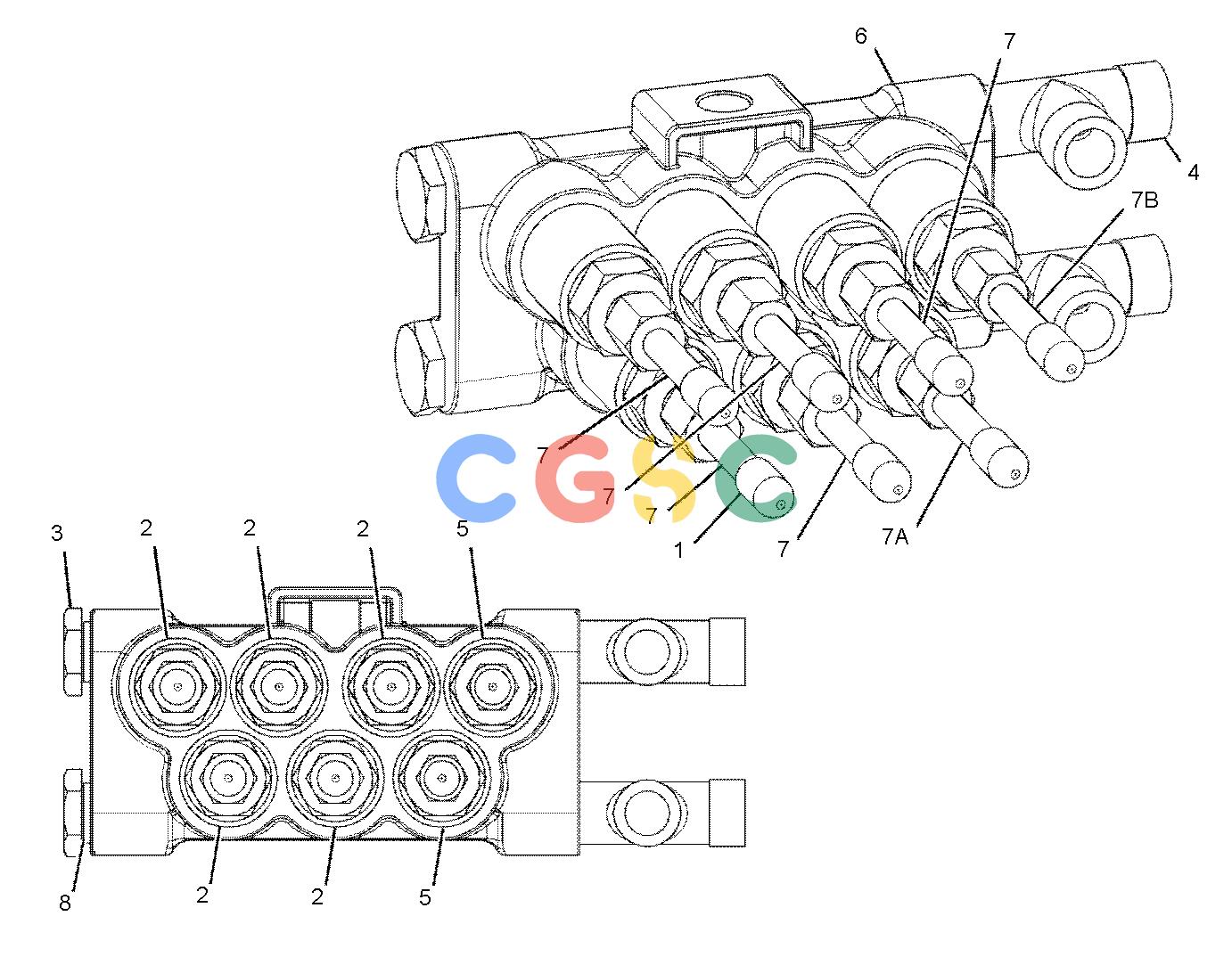

卡特零件查询（735） 254-6756: VALVE GP-LUBE DISTRIBUTION
广数供应链运营团队, 15 02月, 2025，浏览：
658 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 177-3524 | [7] | PLUG | |
| 2. | 178-2746 | [5] | INJECTOR AS-GREASE(NO. 9) | |
| | | | (EACH INCLUDES) |
| | 277-3072M | [1] | NUT(M10X1-THD) | |
| | 277-3073 | [1] | FITTING-COMPRESSION | |
| 3. | 179-1660 | [2] | PLUG | |
| 4. | 221-1584 | [2] | COUPLING | |
| 5. | 221-1585 | [2] | INJECTOR AS-GREASE(NO. 8.5) | |
| | | | (EACH INCLUDES) |
| | 277-3072M | [1] | NUT(M10X1-THD) | |
| | 277-3073 | [1] | FITTING-COMPRESSION | |
| 6. | 220-8573 | [1] | BLOCK(7-INJECTOR) | |
| 7. | 161-9030E | | HOSE(90-CM EACH) | |
| 7A. | 161-9030E | | HOSE(200-CM) | |
| 7B. | 161-9030E | | HOSE(250-CM) | |
| 8. | 192-5987 | [2] | GASKET | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
