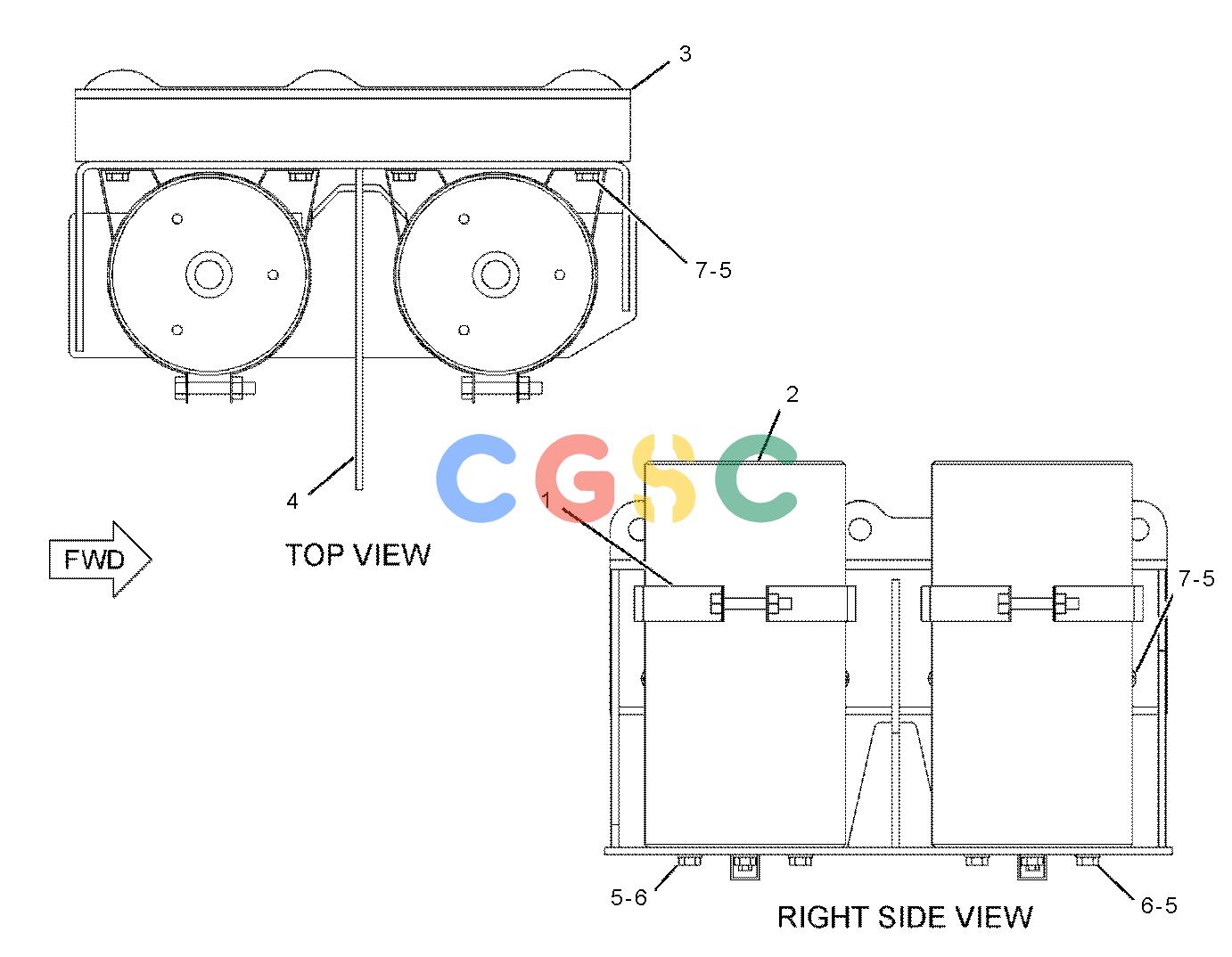

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 142-3061 | [2] | CLAMP AS | |
| 2. | 223-2444Y | [2] | ACCUMULATOR GP-HYDRAULIC(CHARGED) | |
| 3. | 251-1447 | [1] | CHANNEL AS | |
| 4. | 251-1450 | [1] | PLATE AS | |
| 5. | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| 6. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| 7. | 8T-4195M | [8] | BOLT(M10X1.5X30-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
