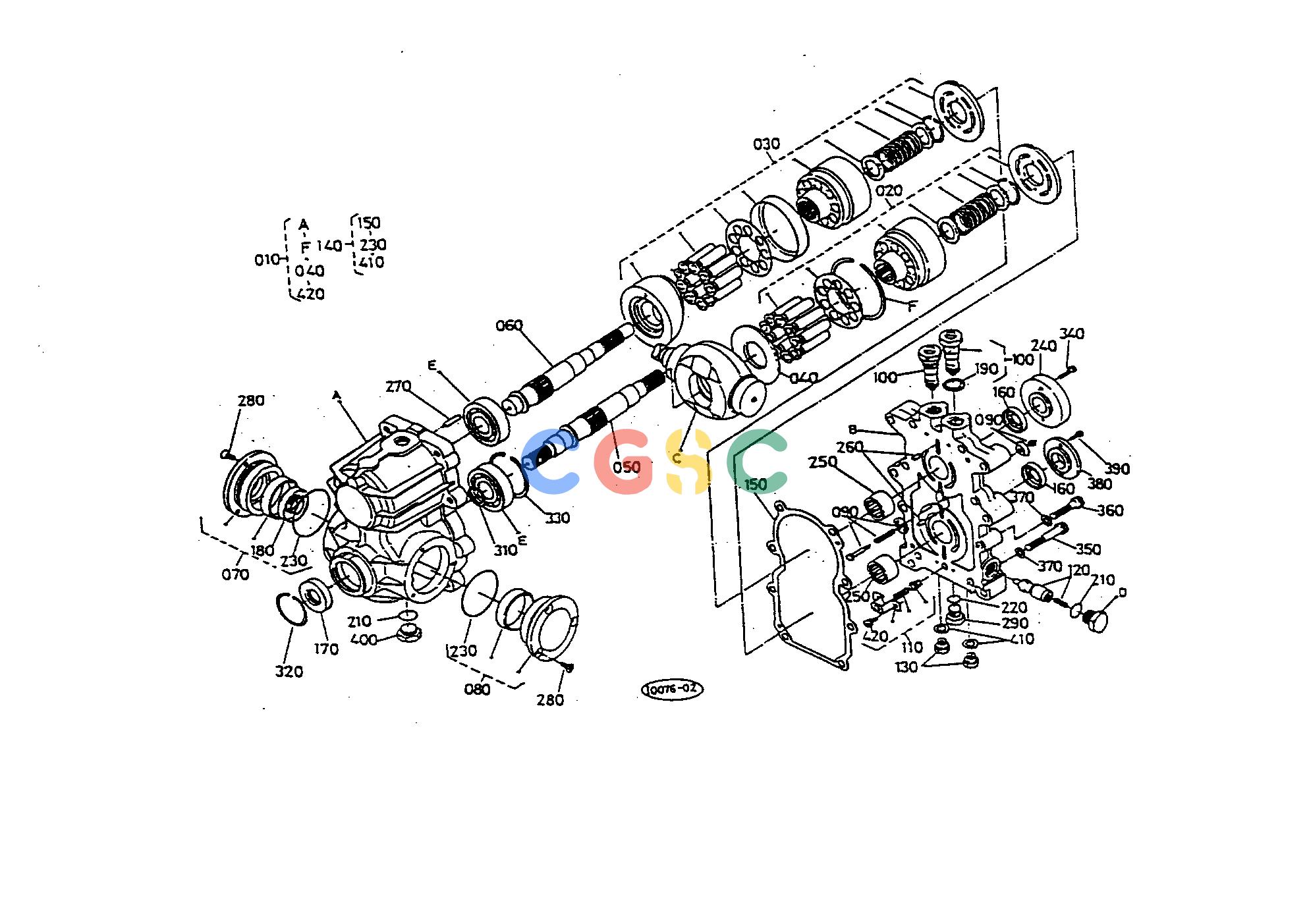

久保田零件查询T05101 HST [COMPONENT PARTS] ## S.No.;<=52099 TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
827 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6630111602
|
[1] |
ASSY HST
|
0.0000(lbs); 0.000
|
| 020. |
6630183100
|
[1] |
ASSY BLOCK CYL.(P)
|
4.1360(lbs); 1.880
|
| 030. |
6630183200
|
[1] |
ASSY BLOCK CYL.(M)
|
5.8300(lbs); 2.650
|
| 040. |
6630139260
|
[1] |
PLATE THRUST
|
0.2860(lbs); 0.130
|
| 050. |
6630139310
|
[1] |
SHAFT
|
2.0460(lbs); 0.930
|
| 060. |
6630139320
|
[1] |
SHAFT
|
1.8040(lbs); 0.820
|
| 070. |
6630183300
|
[1] |
ASSY COVER(A)
|
1.2760(lbs); 0.580
|
| 080. |
6630183400
|
[1] |
ASSY COVER(B)
|
1.3860(lbs); 0.630
|
| 090. |
6620484400
|
[1] |
ASSY VALVE RELIEF
|
0.0440(lbs); 0.020
|
| 100. |
6630183600
|
[1] |
ASSY VALVE NEUTRAL
|
0.2464(lbs); 0.112
|
| 110. |
6630183700
|
[1] |
ASSY VALVE RELIEF
|
0.0660(lbs); 0.030
|
| 120. |
6630184200
|
[1] |
ASSY VALVE RELIEF
|
0.0154(lbs); 0.007
|
| 130. |
6630183902
|
[2] |
ASSY PLUG
|
0.0616(lbs); 0.028
|
| 140. |
6630184103
|
[1] |
KIT SEAL
|
0.1100(lbs); 0.050
|
| 150. |
6630139550
|
[1] |
GASKET
|
0.0110(lbs); 0.005
|
| 160. |
6630139560
|
[2] |
SEAL OIL
|
0.0440(lbs); 0.020
|
| 170. |
6630139490
|
[1] |
SEAL OIL
|
0.0440(lbs); 0.020
|
| 180. |
6630139510
|
[1] |
SEAL OIL
|
0.0440(lbs); 0.020
|
| 190. |
6630139830
|
[2] |
SEAL
|
0.0044(lbs); 0.002
|
| 200. |
9999999999
|
[1] |
BLANK
|
0.0000(lbs); 0.000
|
| 210. |
0481100180
|
[3] |
RING
|
0.0022(lbs); 0.001
|
| 220. |
0481100140
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 230. |
0481150650
|
[2] |
RING
|
0.0044(lbs); 0.002
|
| 240. |
6630139350
|
[1] |
FLANGE
|
0.9240(lbs); 0.420
|
| 250. |
6630139470
|
[2] |
BEARING NEEDLE
|
0.0000(lbs); 0.000
|
| 260. |
6630139520
|
[2] |
PIN
|
0.0044(lbs); 0.002
|
| 270. |
6630139540
|
[1] |
PIN
|
0.0220(lbs); 0.010
|
| 280. |
6630139610
|
[6] |
SCREW TAPPING
|
0.0110(lbs); 0.005
|
| 290. |
6630139620
|
[1] |
PLUG
|
0.0880(lbs); 0.040
|
| 310. |
0461200250
|
[1] |
CIR-CLIP EXTERNAL
|
0.0044(lbs); 0.002
|
| 320. |
0461100450
|
[1] |
CIR-CLIP INTERNAL
|
0.0220(lbs); 0.010
|
| 330. |
0461100620
|
[1] |
CIR-CLIP INTERNAL
|
0.0242(lbs); 0.011
|
| 340. |
0135010520
|
[2] |
BOLT
|
0.0088(lbs); 0.004
|
| 350. |
0131511055
|
[2] |
BOLT
|
0.0880(lbs); 0.040
|
| 360. |
0131511040
|
[6] |
BOLT
|
0.0682(lbs); 0.031
|
| 370. |
6630139810
|
[8] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 380. |
6630139840
|
[1] |
FLANGE
|
0.2640(lbs); 0.120
|
| 390. |
0135010512
|
[2] |
BOLT
|
0.0066(lbs); 0.003
|
| 400. |
6630139930
|
[1] |
PLUG
|
0.1540(lbs); 0.070
|
| 410. |
6630135630
|
[2] |
SEAL
|
0.0110(lbs); 0.005
|
| 420. |
0131110610
|
[2] |
BOLT
|
0.0088(lbs); 0.004
|
