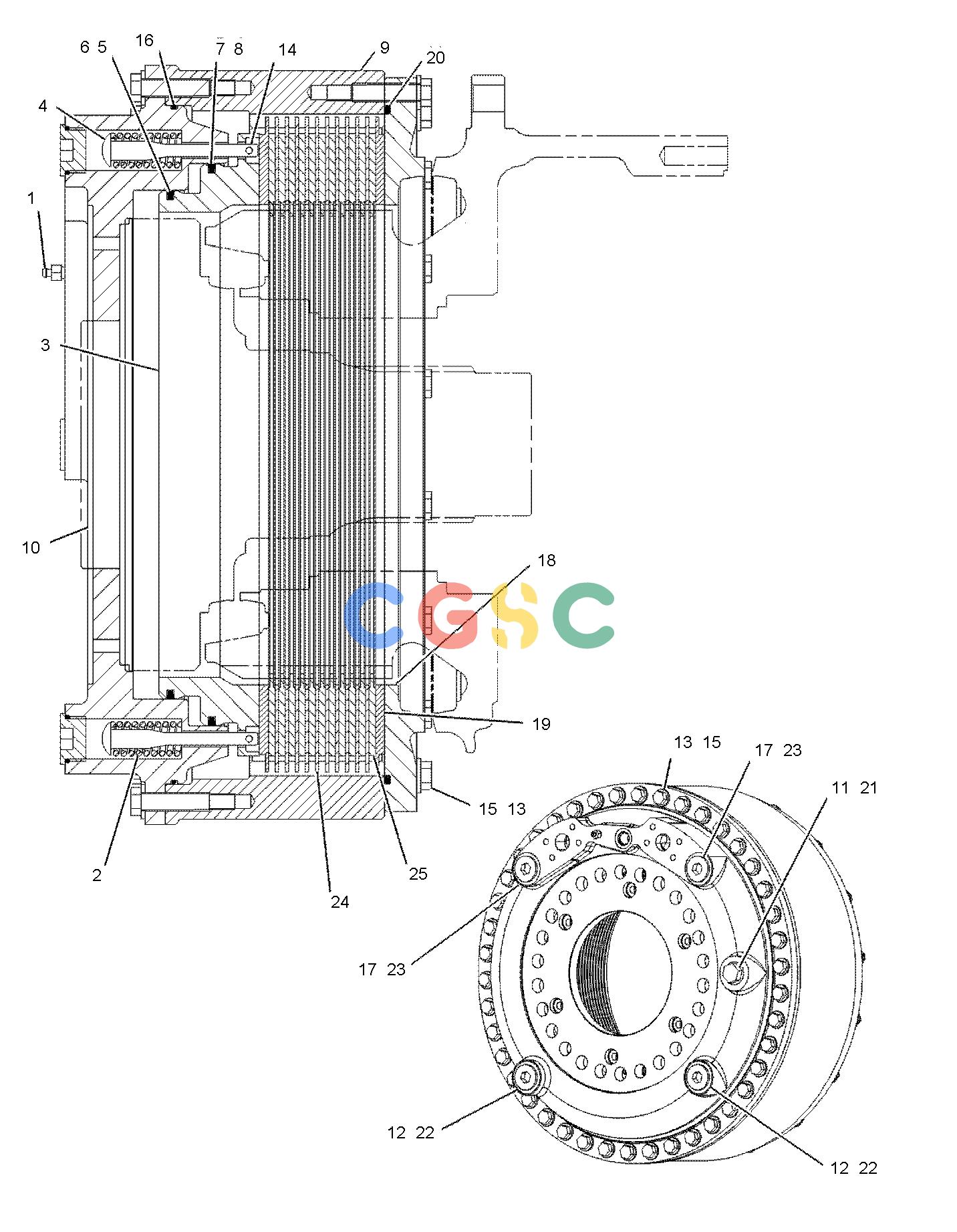

卡特零件查询（735） 136-7796: BRAKE GP-SERVICE
广数供应链运营团队, 15 02月, 2025，浏览：
377 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5H-3701 | [1] | SCREW-PURGE | |
| 2. | 9J-5491 | [4] | SPRING | |
| 3. | 133-9883 | [1] | PISTON | |
| 4. | 134-2562 | [4] | GUIDE | |
| 5. | 137-8116 | [1] | RING-SEAL | |
| 6. | 137-8117 | [1] | SEAL-RING | |
| 7. | 137-8118 | [1] | RING-SEAL | |
| 8. | 137-8119 | [1] | SEAL-RING | |
| 9. | 158-1990 | [1] | HOUSING | |
| 10. | 161-9755 | [1] | ANCHOR | |
| 11. | 2M-9780 | [1] | SEAL-O-RING | |
| 12. | 3J-1907 | [2] | SEAL-O-RING | |
| 13. | 5P-8245 | [59] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 14. | 6M-9155 | [4] | PIN | |
| 15. | 6V-8336M | [59] | BOLT(M12X1.75X70-MM) | |
| 16. | 6W-4310 | [1] | SEAL-O-RING | |
| 17. | 7M-8485 | [4] | SEAL-O-RING | |
| 18. | 8V-9372 | [1] | PLATE | |
| 19. | 8W-9707 | [2] | DAMPER AS | |
| 20. | 9H-0846 | [1] | SEAL-O-RING | |
| 21. | 9S-4190 | [1] | PLUG-O-RING(7/8-14-THD) | |
| 22. | 9S-8004 | [2] | PLUG(9/16-18-THD) | |
| 23. | 9S-9334 | [4] | PLUG | |
| 24. | 9V-6164 | [10] | PLATE-OUTER | |
| 25. | 9W-7020 | [11] | DISC-FRICTION | |
| | M | | METRIC PART |
