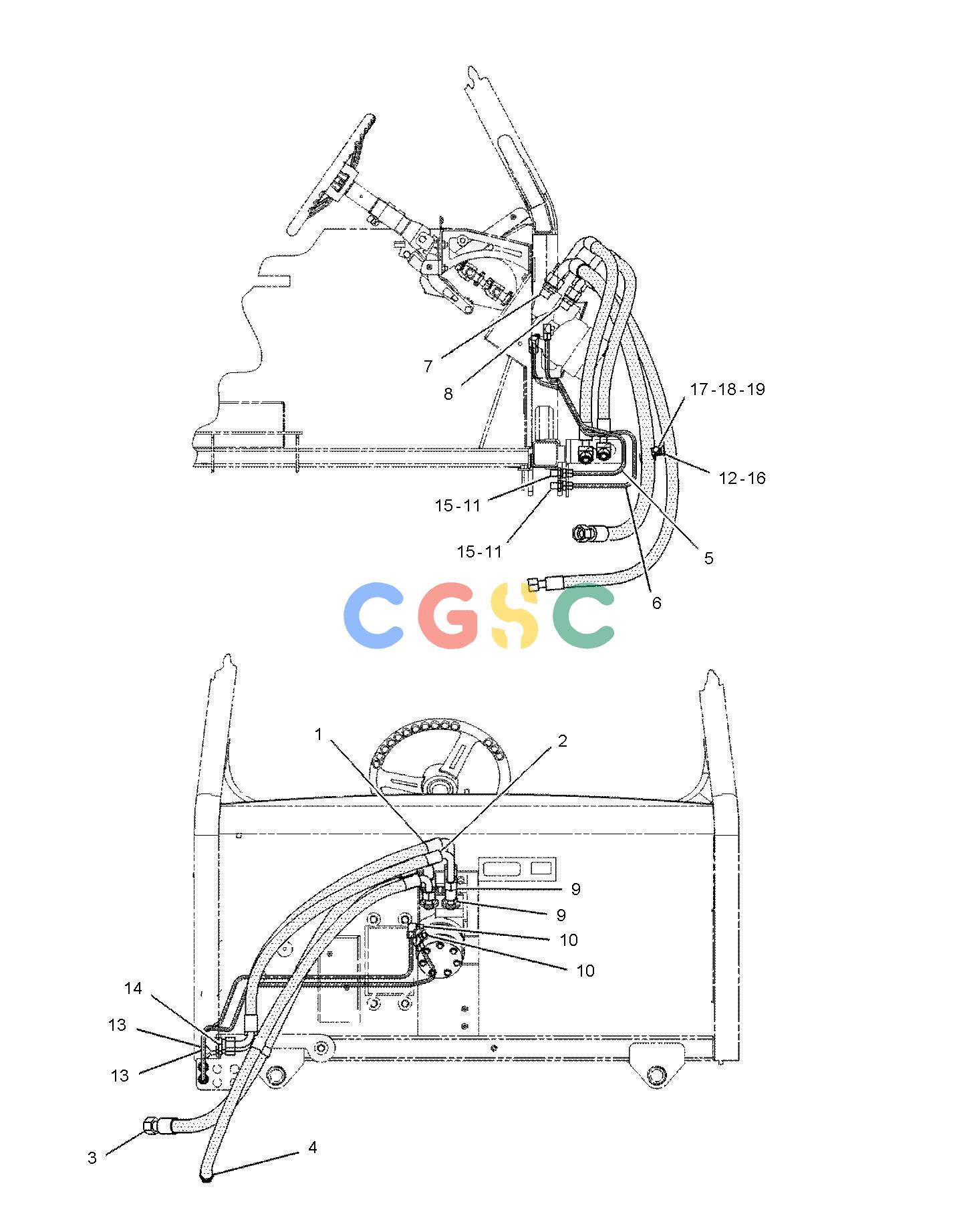

卡特零件查询（735） 153-5493: LINES GP-STEERING
广数供应链运营团队, 15 02月, 2025，浏览：
549 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 191-0892I | [1] | HOSE AS | |
| 2. | 191-0893I | [1] | HOSE AS | |
| 3. | 191-0894I | [1] | HOSE AS | |
| 4. | 191-0895I | [1] | HOSE AS | |
| 5. | 201-1262 | [1] | TUBE AS | |
| 6. | 201-1263 | [1] | TUBE AS | |
| 7. | 148-8317 | [1] | CONNECTOR AS | |
| | 6V-8714 | [1] | CONNECTOR | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| 8. | 148-8327 | [1] | CONNECTOR AS | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 9. | 148-8344 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-9162 | [1] | CONNECTOR | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 10. | 148-8361 | [2] | ELBOW AS(90-DEG) | |
| | | | (EACH INCLUDES) |
| | 6V-9200 | [1] | ELBOW | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 11. | 149-5452 | [2] | UNION AS(STRAIGHT) | |
| | | | (EACH INCLUDES) |
| | 6V-8994 | [1] | UNION(STRAIGHT) | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| 12. | 149-7738 | [1] | CLIP(LOOP) | |
| 13. | 165-4933 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8990 | [1] | ELBOW | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 14. | 2P-1293 | [2] | LOCKNUT(1-3/16-12-THD) | |
| 15. | 6V-9168 | [2] | NUT(11/16-16-THD) | |
| 16. | 7D-7233 | [1] | CLIP(LOOP) | |
| 17. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 18. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 19. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
