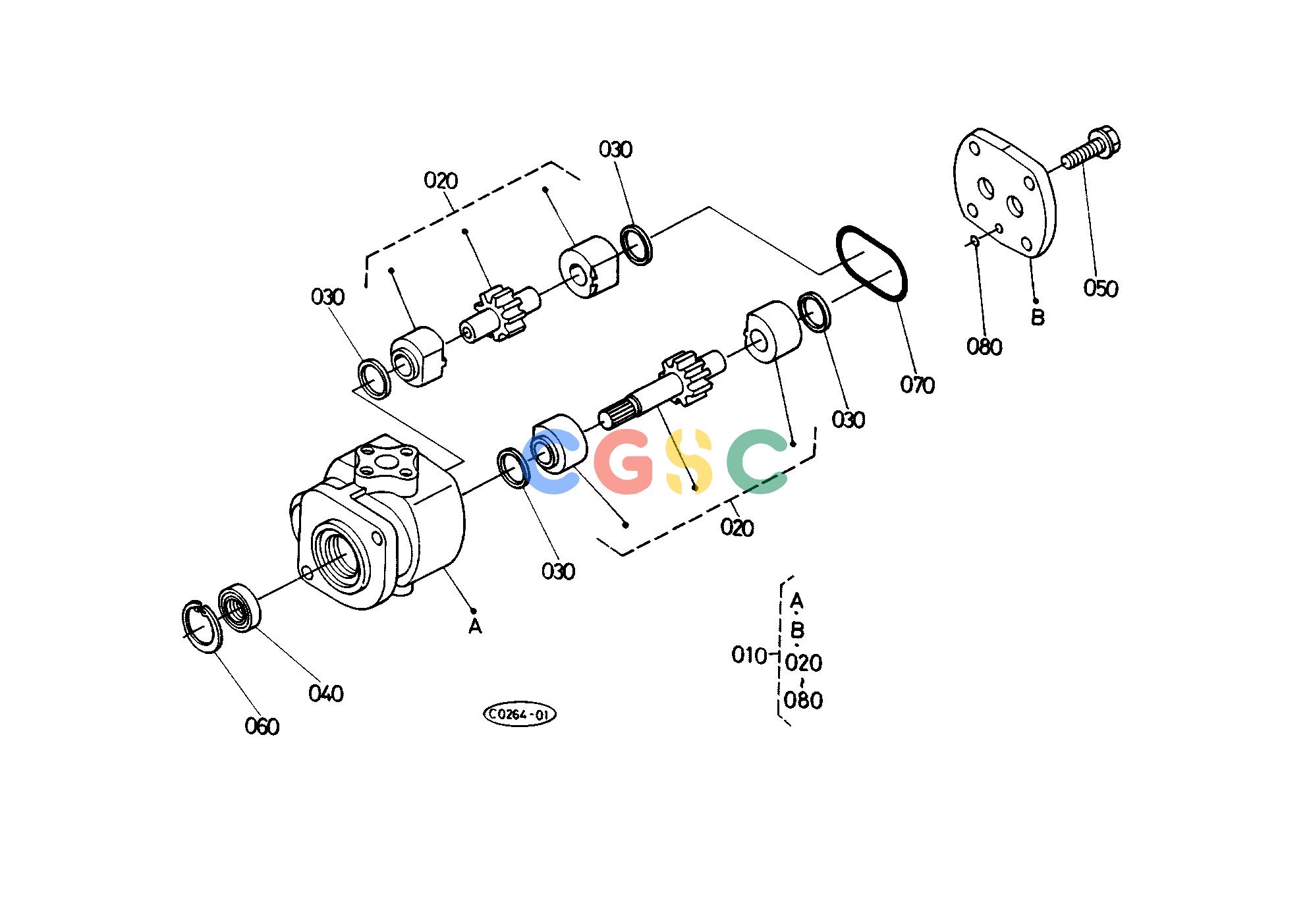

久保田零件查询T09100 HYDRAULIC GEAR PUMP [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
189 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3139176600
|
[1] |
ASSY PUMP HYDRAULIC
|
4.4000(lbs); 2.000
|
| 020. |
3139176702
|
[1] |
COMP.GEAR AND METAL
|
1.1000(lbs); 0.500
|
| 030. |
3135176170
|
[4] |
RING METAL SEAL
|
0.0022(lbs); 0.001
|
| 030. |
3818076172
|
[4] |
SQUARE RING
|
0.0044(lbs); 0.002
|
| 040. |
3138176390
|
[1] |
SEAL OIL
|
0.0220(lbs); 0.010
|
| 050. |
3135176240
|
[4] |
BOLT FLANGE
|
0.5720(lbs); 0.260
|
| 060. |
0461100300
|
[1] |
CIR-CLIP INTERNAL
|
0.0088(lbs); 0.004
|
| 070. |
0481050550
|
[1] |
RING
|
0.0044(lbs); 0.002
|
| 080. |
0481000050
|
[1] |
RING
|
0.0022(lbs); 0.001
|
