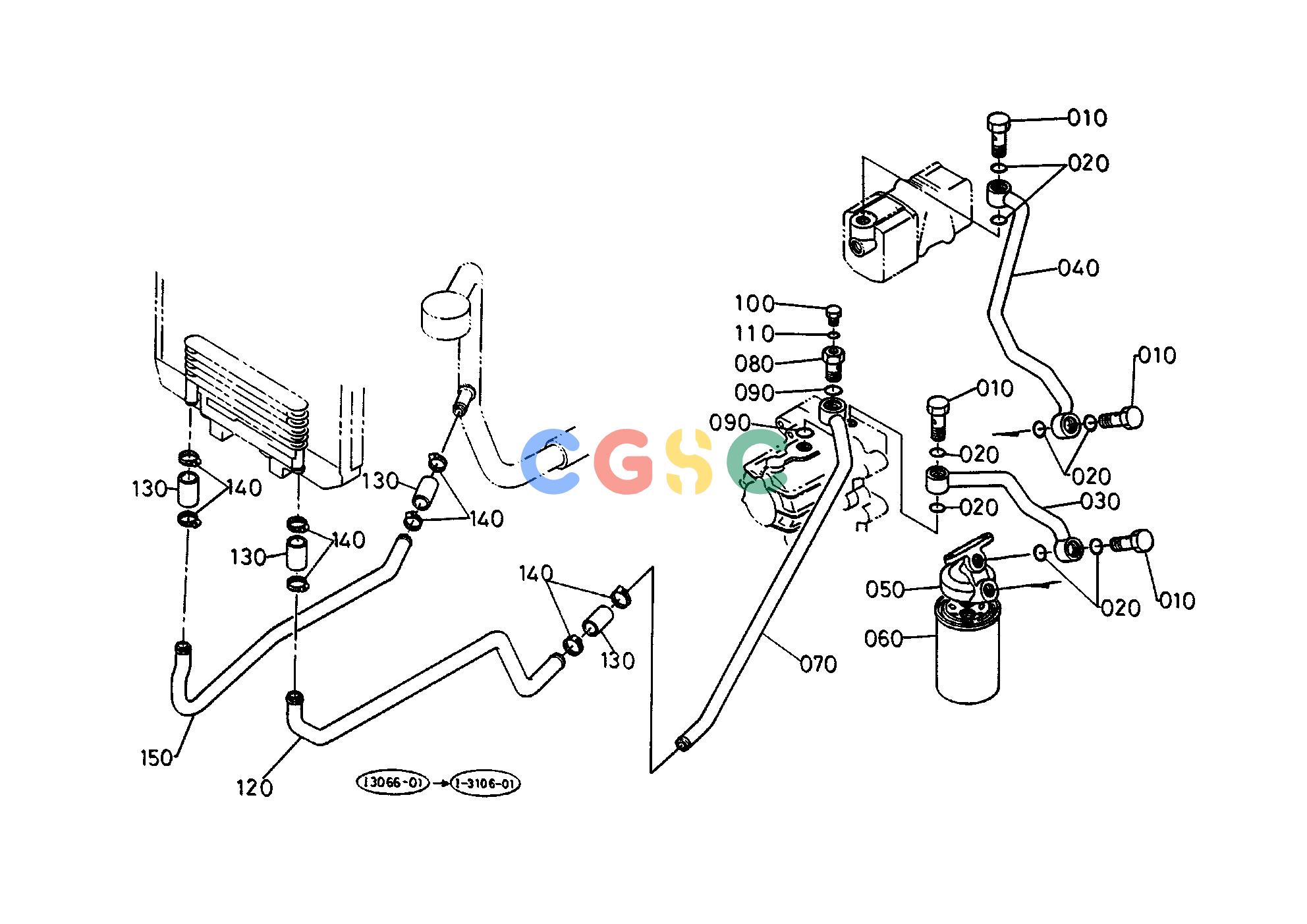

久保田零件查询T09500 HYDRAULIC PIPE 2 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
843 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6785037160
|
[4] |
BOLT JOINT
|
0.1980(lbs); 0.090
|
| 020. |
0481000200
|
[8] |
RING
|
0.0022(lbs); 0.001
|
| 030. |
6636137710
|
[1] |
PIPE CHARGE
|
0.7920(lbs); 0.360
|
| 040. |
6636137720
|
[1] |
PIPE CHARGE
|
1.1000(lbs); 0.500
|
| 050. |
6630137810
|
[1] |
COVER FILTER
|
0.5940(lbs); 0.270
|
| 060. |
6636137950
|
[1] |
FILTER OIL
|
0.0000(lbs); 0.000
|
| 070. |
6630137910
|
[1] |
PIPE SUCTION (C)
|
1.0120(lbs); 0.460
|
| 080. |
6630137940
|
[1] |
BOLT JOINT
|
0.1716(lbs); 0.078
|
| 090. |
0481100220
|
[2] |
RING
|
0.0022(lbs); 0.001
|
| 100. |
6630112170
|
[1] |
PLUG
|
0.0506(lbs); 0.023
|
| 110. |
0481106100
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 120. |
6636137920
|
[1] |
PIPE SUCTION (C)
|
1.2320(lbs); 0.560
|
| 130. |
6630136220
|
[4] |
HOSE
|
0.1210(lbs); 0.055
|
| 140. |
6620436280
|
[8] |
BAND PIPE
|
0.0440(lbs); 0.020
|
| 150. |
6636137930
|
[1] |
PIPE DELIVERY (C)
|
0.9680(lbs); 0.440
|
